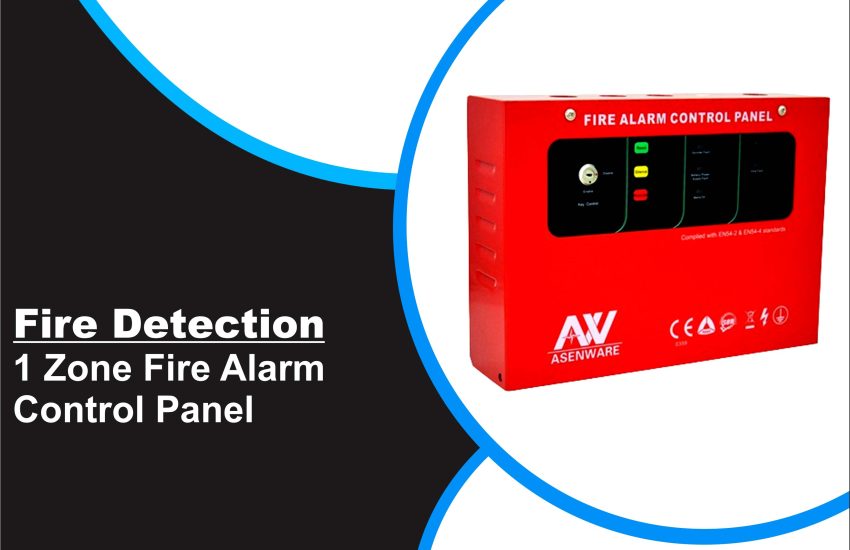

1 Zone Fire Alarm Control Panel also known as a conventional fire alarm panel, is an essential component in any fire detection and alarm system. Built to comply with EN54 Part 2 & Part 4 standards, this compact yet powerful device ensures centralized control, real-time monitoring, and fast response in the event of a fire emergency.
What Is a 1 Zone Fire Alarm Control Panel?
A 1 zone conventional fire alarm control panel is designed to manage and monitor fire alarm accessories such as smoke detectors, heat detectors, manual call points (MCPs), and sounders within a single zone. Ideal for smaller buildings or spaces like shops, restaurants, apartments, and offices, this panel can connect up to 20 detectors or manual call points.
Key Features of the 1 Zone Fire Alarm Panel
- Analogue Conventional Detector Inputs: Supports up to 20 detectors or manual call points per zone.
- Compact and Easy Installation: Space-saving design allows quick and easy installation without sacrificing functionality.
- Multiple Sounder Support: Supports up to 4 fire alarm bells for wide-area coverage.
- Relay Outputs: Separate FIRE and FAULT relays for external system interfacing.
- High-Capacity Backup Batteries: Dual 12V 2.3Ah batteries provide over 8 hours of standby power.
- Automatic Power Switchover: Seamlessly switches between mains and battery power.
- User-Friendly Interface: Simple, intuitive functional buttons for easy operation and quick alarm identification.
- Fault Detection: Continuous monitoring of inputs, sounders, and power sources.
- Manual Evacuation Function: Fire alarm condition can be manually triggered from the panel.
- Sounder Silence Feature: Allows temporary silencing of sounders and panel buzzer.
- Optional GSM Integration: Remote fire alarm notification via mobile phone alerts.
Technical Specifications
- AC Input: 220VAC, 50/60Hz
- DC Output: 24VDC typical
- MCU Voltage: 5V
- Standby Current: 450mA
- Max Current Output: 1A (excluding battery charging)
- Battery Capacity: 2 × 12V/2.3Ah sealed lead-acid batteries
- Battery Protection: 21V low-voltage cutoff
- Auxiliary Output: 24VDC ±10%, 100mA (current limited and monitored)
- Sounder Output: 2 × 0.75A max
- Zone Alarm Current: 6mA – 27mA
- Fire Relay & Fault Relay: 1A @ 30VDC max
- Communication Protocol: RS485 2-wire bus system
- Zone & Output EOL Resistor: 6.8K 1W
- Fuses: AC Power – 1A/250V, DC Power – 1A/250V (glass tube fuses)
- Environmental Class: Class A, -5°C to 50°C, 5%–95% RH non-condensing
- Terminal Block Rating: Supports 12–18 AWG (0.75–2.5 mm²)
Applications of the 1 Zone Fire Alarm Panel
- Residential buildings, apartments, and small homes
- Retail stores, boutiques, and small commercial spaces
- Restaurants, cafes, and kitchens
- Offices and administrative buildings
- Warehouses and storage rooms
Benefits of Installing a 1 Zone Fire Alarm Control Panel
- Enhanced safety for single-zone environments
- Compliance with EN54 fire safety standards
- Quick installation and low maintenance
- Cost-effective fire protection solution
- Scalable with GSM communication upgrade for remote monitoring
