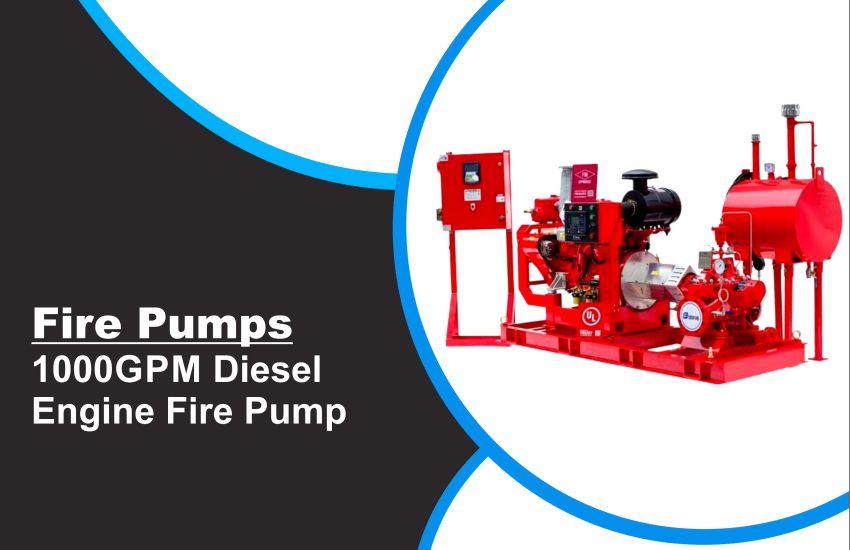

1000GPM Diesel Engine Fire Pump from CNP NM FIRE delivers un-compromised performance. This high-capacity pump, model SCF150-125-310, is UL and FM approved, ensuring adherence to the most stringent international fire safety standards. Built in China and engineered for durability, the system provides a flow rate of 1000 gallons per minute (GPM), equivalent to 227 cubic meters per hour (m³/h).
Designed specifically for emergency fire suppression, this diesel engine-driven unit is ideal for facilities where electric power may fail during critical situations. Moreover, its robust construction and integrated fuel tank offer dependable operation in demanding environments.
🔧 Product Overview: What’s Included in the Diesel Engine Fire Pump Package?
The CNP NM FIRE 1000GPM diesel engine fire pump comes as a complete, ready-to-install system. Here’s what the package includes:
- Pump unit – with air relief valve, inlet and outlet pressure gauges
- Diesel engine – NM FIRE NM6-110D (UL certified)
- Common base plate – for easy installation and structural stability
- Silencer and flexible exhaust connector – for noise and vibration control
- Pump-to-engine coupling – ensures efficient torque transfer
- Cooling system – with integrated heat exchanger
- Digital control panel – from Tornatech or Eaton (UL/FM approved)
- Main relief valve – CLA-VAL (UL/FM certified)
- Waste cone – 4 to 8 inches
- Fuel tank – model NMTY-YX-800L-00-01 (800 liters)
- Factory performance testing
Furthermore, customization options are available to suit project-specific requirements. Clients can modify components, materials, or configurations based on environmental or operational needs.
🔍 Key Technical Specifications
| Component | Details |
|---|---|
| Pump Brand | NM FIRE (UL/FM Certified) |
| Model | SCF150-125-310 |
| Flow Capacity | 1000 GPM / 227 m³/h |
| Pump Casing Material | Ductile Cast Iron |
| Impeller | SS304 Stainless Steel |
| Shaft | AISI 4340 High-Strength Steel |
| Shaft Sleeve | SS304 |
| Seal Type | Gland Packing |
| Wear Ring | Bronze |
| Bearings | SKF |
| Diesel Engine | NM6-110D (UL listed) |
| Controller | Tornatech or Eaton (UL/FM listed) |
| Fuel Tank Capacity | 800L |
| Main Relief Valve | CLA-VAL (UL/FM Certified) |
| Cooling Type | Heat Exchanger |
Applications: Where This Fire Pump Excels
Because of its robust construction and high flow capacity, this diesel fire pump system is suited for a wide range of industries. Some of the key application areas include:
- Large hotels and resorts
- Hospitals and healthcare facilities
- Office towers and commercial complexes
- Shopping malls and supermarkets
- Schools, colleges, and universities
- Metro and railway stations
- Airports and transportation terminals
- Petrochemical and thermal power plants
- Oil depots and offshore platforms
- Warehouses, industrial zones, and mining sites
Notably, marine and offshore applications benefit from an optional material upgrade. Using SS2205 stainless steel for components like the discharge head, shaft, column pipe, and impellers increases corrosion resistance in saltwater environments.
✅ Why Choose the 1000GPM Diesel Engine Fire Pump by CNP NM FIRE?
Choosing this fire pump ensures peace of mind in high-stakes situations. Here’s why:
- Certified Safety – UL/FM approvals guarantee global fire code compliance.
- Diesel Power Reliability – Ideal for use when electric supply is compromised.
- High-Quality Materials – Components made from SS304, bronze, and ductile iron extend lifespan.
- Smart Control System – Tornatech or Eaton UL/FM controllers offer intelligent, responsive control.
- Flexible Configuration – Systems can be adapted for air- or water-cooling, with optional accessories.
- Factory Testing – Every pump set is tested before shipment, ensuring immediate readiness.
Additionally, the 800-liter fuel tank supports long-duration operation without interruption. This is especially important for remote sites or areas without backup electricity.
🧯 Product Variants Available
CNP NM FIRE provides multiple configurations to meet diverse needs:
- Electric Motor Driven Fire Pump Group
- Diesel Engine Driven Fire Pump Group
- Air-cooled or water-cooled engine options
- NFPA 20-Compliant Fire Pump Packages
- Pre-assembled with control systems and accessories
