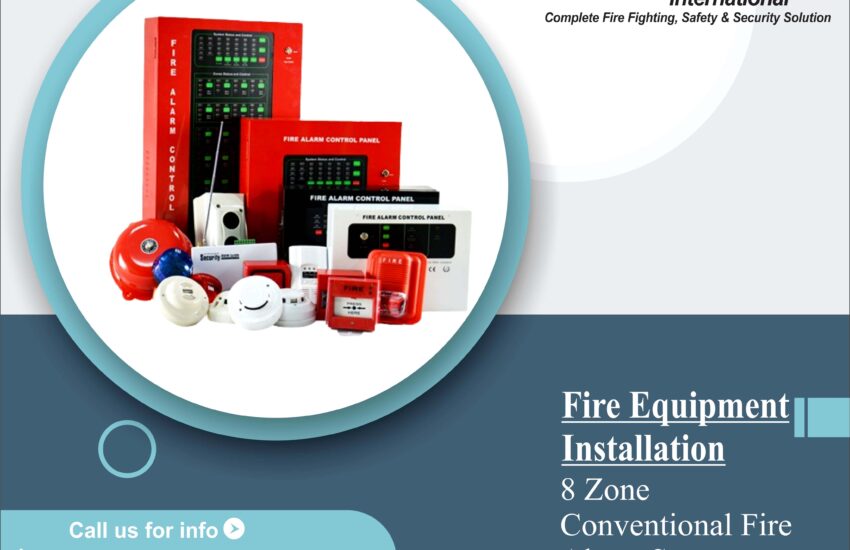

8 Zone Conventional Fire Alarm System is a robust, high-performance fire detection and suppression system, designed to meet international safety standards and offer full-scale protection for industrial, commercial, and institutional buildings.
Whether it’s a factory, hotel, school, or office, this fire alarm control panel is engineered to detect and alert in real time, ensuring safety and compliance.
🔧 Basic Product Information
- Model Number: AW-CFP2166-8
- Zones Supported: 1–32 zones (8 zones default)
- Max. Detectors per Zone: 20
- Certification: CE, ISO, FCC, RoHS, CCC
- Usage: Fire detection, smoke detection, fire suppression
- Application: Factory, hotel, school, office, commercial buildings
Key Features of AW-CFP2166-8 Fire Alarm System
- ✅ EN54 Part 2 & 4 Compliant – Designed in accordance with European fire safety standards.
- 🔧 Modular and Extendable – Expandable from 1 to 32 zones for flexible fire safety solutions.
- 🔐 Two-Level Control Access – Enhanced security with key lock control levels.
- 🔋 Power Supply – Supports 110VAC/240VAC input, with 27VDC output.
- 🔥 Fire, Fault, and Routing Signal Outputs – Configurable as dry relay or wet source types.
- 🔊 Sounder Outputs – Two independent circuits for general sounders.
- 🎛️ Zone Control – Each zone has a separate circuit and can be disabled via a button.
- 🔁 Reset, Silence, Evacuate, and Test Functions – Simplified panel operation for emergencies and maintenance.
- ⚠️ Low-Battery Protection – Automatically cuts off battery below 21VDC for safety.
- 📱 GSM Module (Optional) – Enables SMS alerts for fire emergencies.
Product Specifications
| Feature | Specification |
|---|---|
| Alarm Volume | ≥80dB (within 1m) |
| Networking Mode | GSM Dial-up |
| Wiring Mode | Bus System |
| Battery Backup | 12V2Ah × 2 |
| Fire Relay Output | NO/NC |
| Fault Relay Output | NO/NC |
| Zone/Detector Support | Up to 20 detectors per zone |
| Sounder Circuits | 2 |
| Warranty | 12 months |
| OEM/ODM Service | Available |
| Transport Package | EPE inside, carton outside |
| Production Capacity | 10,000 units/year |
| Origin | Guangdong, China |
| HS Code | 853110000 |
Control Panel Buttons & Functions
- RESET – Resets the fire alarm panel
- SILENCE – Stops the internal buzzer and sounders
- EVACUATE – Manually triggers evacuation alarms
- TEST – Tests all indicator LEDs
- Zone Disable Button – Easily disable a specific zone
🔍 Why Choose AW-CFP2166-8?
- Reliable conventional fire alarm system for small to medium-sized fire projects
- Scalable up to 32 zones
- Easy installation and user-friendly interface
- Compatible with various detector types
- Developed by a certified R&D manufacturer
- Trusted by thousands of buildings globally
🔥 Available Series for Fire Protection
- 2166 Series – Conventional fire alarm system, 1–32 zones
- 2189 Series – Addressable system, supports up to 324 addresses
- 2100 Series – Addressable system for large-scale projects, expandable up to 648*N
- FP100 Series – Smart addressable system, 1–8 loops, newly developed
