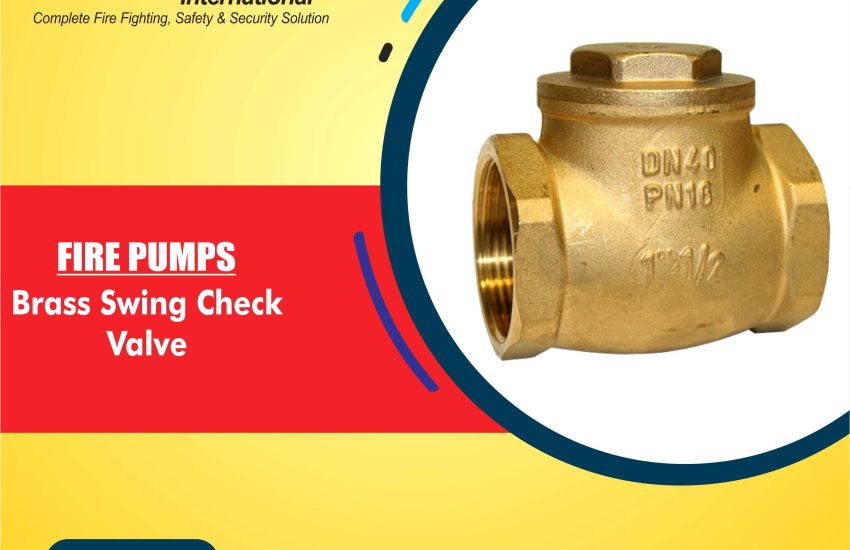

Brass Swing Check Valve is a critical component in fluid systems, ensuring that flow only happens in one direction. This reliable valve features a metal-to-metal seat design, which provides excellent back flow prevention. Available in various sizes and pressure ratings, the valve is ideal for numerous applications. Below is a detailed guide to the Brass Swing Check Valve, including its specifications, key features, and benefits.
Specifications of Brass Swing Check Valve
- Material
- The Brass Swing Check Valve is made from high-quality brass, which is known for its strength and resistance to corrosion. This material ensures long-term durability, even in harsh conditions.
- Size
- This valve comes in a wide range of sizes, including 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, and 4″. As a result, it offers flexibility and is compatible with various pipeline systems.
- Pressure Rating
- It is rated for PN16 for sizes 3/8″ to 3″ and PN10 for the 4″ size. These pressure ratings indicate the valve’s ability to withstand up to 16 bar for smaller sizes and 10 bar for larger sizes.
- Temperature Range
- The valve operates efficiently within a temperature range from 0°C to 95°C, with a peak tolerance of -20°C to 110°C. This ensures that the valve functions well in both low and high-temperature environments.
- Fitting
- It features BSPP fittings (British Standard Parallel Pipe), making the valve easy to install and ensuring a secure, leak-free connection with the pipeline.
- Seat Design
- The metal-to-metal seat design ensures a tight seal, preventing back flow effectively. This is essential for maintaining the integrity and efficiency of the fluid system.
Key Features and Benefits of Brass Swing Check Valve
- Durability
- The brass construction provides outstanding resistance to corrosion and wear, extending the valve’s lifespan. This makes it a highly durable choice for various applications.
- Effective Back flow Prevention
- The metal-to-metal seat ensures a tight seal that effectively prevents back flow. This is crucial for protecting pumps, pipes, and other equipment from damage caused by reverse fluid flow.
- Versatility in Size
- With sizes ranging from 3/8″ to 4″, this valve is suitable for a wide variety of pipelines. Its versatility makes it a valuable choice for both small and large fluid systems.
- Wide Temperature Range
- The valve works within a wide temperature range from -20°C to 110°C. This makes it suitable for both heating and cooling systems, as well as extreme temperature environments.
- Ease of Installation
- Thanks to its BSPP fittings, the valve is simple to install. It ensures a secure and leak-proof connection, making the installation process faster and more efficient.
- Reliable Flow Control
- The swing design enables smooth fluid flow, while preventing system disruptions caused by back flow. As a result, the system runs more efficiently and safely.
Applications of Brass Swing Check Valve
The Brass Swing Check Valve is suitable for a range of applications. Below are some common uses:
- Water Supply Systems
- This valve is commonly used in water distribution systems to prevent back flow and ensure proper flow direction.
- Pumping Systems
- In pumping systems, it prevents reverse flow that could damage pumps. The valve protects pumps from potential back flow, enhancing system longevity.
- Heating and Cooling Systems
- With its broad temperature tolerance, the valve is ideal for heating and cooling systems, ensuring consistent performance in different climates.
- Industrial Fluid Systems
- The Brass Swing Check Valve also performs well in industrial fluid systems, managing water, oils, and chemicals, making it suitable for a variety of industrial applications.
Why Choose Brass Swing Check Valve?
There are several reasons to choose the Brass Swing Check Valve:
- Durability and Longevity
- Its brass construction and metal-to-metal seat design ensure long-term durability, making it a cost-effective investment for fluid systems.
- Versatility
- This valve fits into various pipeline systems with sizes ranging from 3/8″ to 4″. Its temperature range and pressure ratings offer flexibility for many applications.
- Effective Back flow Prevention
- The valve’s design prevents back flow, protecting pumps and equipment from damage. This feature increases the overall efficiency and safety of the system.
By choosing the Swing Check Valve, you are investing in a high-quality solution for fluid control. It offers durability, effective flow regulation, and reliable back flow prevention.
