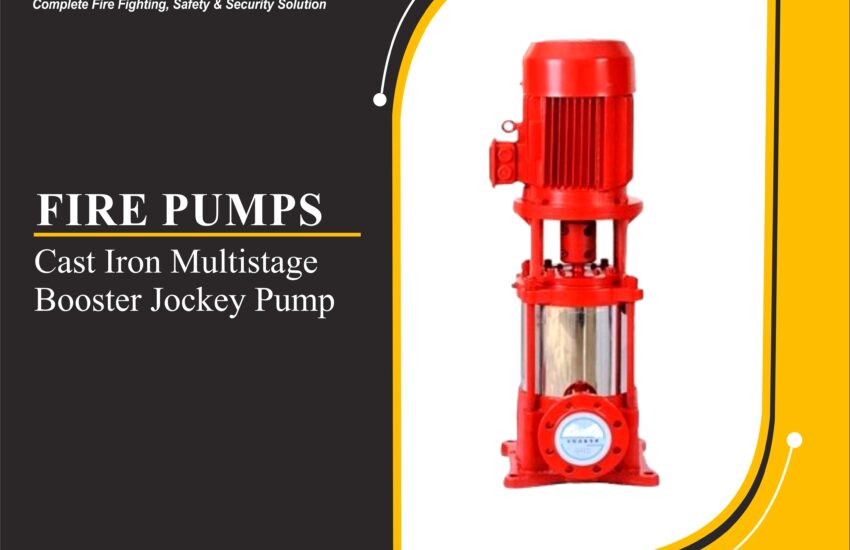

Cast Iron Multistage Booster Jockey Pump is a highly efficient, energy-saving, and space-saving solution designed for fire protection systems, water supply, and pressure boosting applications. Engineered for durability and superior hydraulic performance, this pump delivers stable operation with minimal noise and vibration.
Built with premium materials — cast iron, SS304L, and SS316L — the pump ensures corrosion resistance, long service life, and low maintenance requirements. With a flow range of 2–160 m³/h, a head range of 22–200 m, and a power rating from 0.75–132 kW, it is ideal for a wide range of industrial and commercial uses.
Technical Specifications
- Material: Cast Iron, SS304L, SS316L
- Flow: 2–160 m³/h
- Head: 22–200 m
- Power: 0.75–132 kW
Key Features
1. Energy Saving and Stable Performance
The Cast Iron Multistage Booster Jockey Pump is designed for low energy consumption and high efficiency. The advanced hydraulic balance minimizes axial force, ensuring stable operation and reducing vibration and noise.
2. Compact and Easy to Install
With its small footprint and horizontal pipe-mounted design, the pump is easy to integrate into existing pipelines. The inlet and outlet are positioned horizontally, simplifying piping connections and reducing installation time.
3. Durable Construction
The outer jacket is made of 1Cr18Ni9Ti high-quality stainless steel, providing excellent resistance to corrosion and wear. The shaft seal uses a wear-resistant mechanical seal, ensuring no leakage and a long service life even under continuous operation.
4. Low Noise and Smooth Operation
The pump’s unique hydraulic design minimizes flow turbulence, resulting in quiet and smooth performance. Its balanced impeller system eliminates axial thrust, further enhancing reliability.
5. Cost-Effective Maintenance
Featuring a low failure rate and long service intervals, this pump reduces both operational and maintenance costs. Its lightweight and compact design make servicing and part replacement easy.
Application Range
The GDL Cast Iron Multistage Booster Jockey Pump is suitable for handling clean water and non-corrosive liquids with physical and chemical properties similar to water.
Main Applications Include:
- Fire hydrant water supply
- Automatic sprinkler systems
- Fire system pressure maintenance and voltage regulation
- Residential and commercial building water supply
- Hotels, office buildings, and hospitals
- Factories and industrial plants
- General cleaning and process water applications
This makes it an excellent choice for firefighting systems, domestic water pressure boosting, and industrial circulation systems.
Design and Construction Advantages
- Horizontal inline installation: simplifies connection and reduces space usage.
- Stainless steel jacket: corrosion-resistant and visually appealing.
- Reliable mechanical seals: prevent leakage and reduce downtime.
- High-speed motor: lightweight, compact, and efficient.
- Optimized hydraulic design: minimizes flow noise and enhances efficiency.
Precautions for Use
To ensure safe and efficient operation, follow these important usage guidelines:
- Material customization: Standard model includes stainless steel shaft and aluminum bronze impeller. Specify if different materials are required.
- Routine operation: Run the jockey pump at least once every six months to prevent startup difficulties.
- Leak prevention: The water inlet pipeline must be completely sealed to prevent air leakage.
- Avoid cavitation: Do not run the pump for long periods under cavitation conditions.
- Motor protection: Avoid running the motor under high flow and low lift conditions for extended durations.
- Monitor performance: Regularly check motor current values and ensure the pump operates within design limits.
- Supervised operation: Always monitor the pump during operation to prevent accidents.
- Regular maintenance: Inspect and replace worn parts such as bearings and seals yearly or as needed.
- Mechanical seal care:
- Use clean lubricating fluid without solid particles.
- Never operate under dry running conditions.
- Rotate the motor manually several times before startup to protect the seal.
Key Benefits
- High efficiency with low energy consumption
- Compact structure and easy installation
- Long service life with minimal maintenance
- Quiet operation and low vibration
- Suitable for clean water and firefighting systems
- Reliable performance under continuous operation
