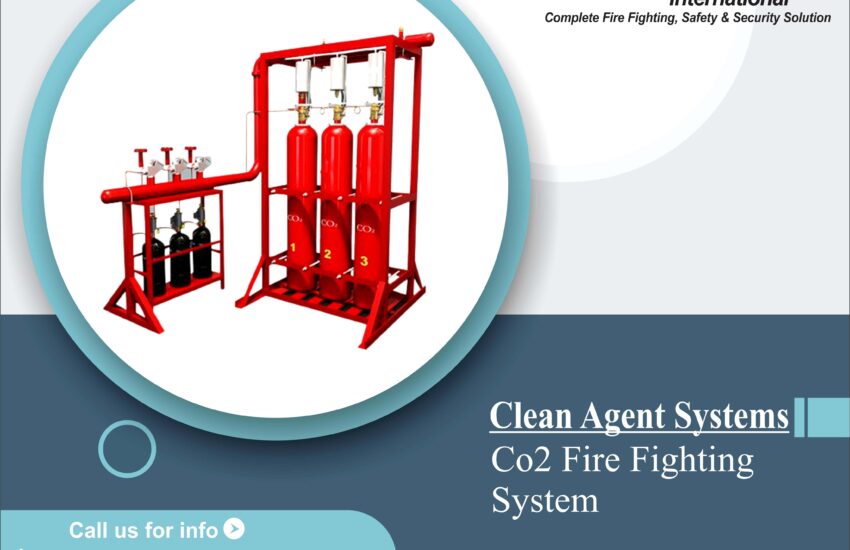

Co2 Fire Fighting System offers a reliable, clean, and effective solution. Designed for use in high-value, sensitive, or enclosed spaces, a carbon dioxide fire suppression system provides rapid fire control without causing damage to equipment or leaving residue behind.
Whether protecting electrical rooms, server data centers, engine rooms, industrial machinery, or chemical storage areas, the CO₂ fire suppression system delivers fast, efficient, and non-conductive fire protection.
What is a CO₂ Fire Fighting System?
A CO₂ fire fighting system is a type of clean agent fire suppression system that uses carbon dioxide (CO₂) gas to displace oxygen in the protected area. This oxygen displacement suffocates the fire quickly, making it an ideal fire suppression method for areas where water would be damaging or ineffective.
CO₂ systems are particularly well-suited for:
- Electrical control panels and substations
- Server rooms and IT infrastructure
- Engine rooms on marine vessels
- Manufacturing and processing equipment
- Chemical and flammable liquid storage areas
- Paint spray booths and power generation units
How the CO₂ Fire Suppression System Works
The CO₂ fire extinguishing system operates by detecting a fire through a fire detection and control panel. Once the system confirms a fire, it automatically or manually releases carbon dioxide gas into the protected area.
Key System Components:
- CO₂ storage cylinders
- Discharge nozzles and piping network
- Detection and control panel
- Pressure regulating devices
- Warning alarms and delay timers
There are two primary configurations:
1. Total Flooding System
- Fills the entire protected area with CO₂ to suppress fire.
- Ideal for enclosed rooms or sealed enclosures.
2. Local Application System
- Targets a specific object or area with a focused discharge.
- Suitable for open or semi-enclosed industrial zones.
Advantages of a CO₂ Fire Fighting System
- ✅ Non-damaging: No residue, ideal for electronics and sensitive equipment.
- ✅ Fast-acting: Rapid flame knockdown within seconds.
- ✅ Effective on Class A, B, and C fires (solids, flammable liquids, and electrical).
- ✅ No water damage: Perfect for places where water-based systems are risky.
- ✅ Low downtime: Minimal cleanup or disruption after discharge.
- ✅ Proven technology: Used globally for decades in mission-critical applications.
Safety Measures and Considerations
Since CO₂ is a toxic gas to humans in high concentrations, systems are equipped with:
- Warning alarms and strobe lights
- Discharge delays for personnel evacuation
- Post-discharge ventilation systems
- Manual override stations
It’s critical that CO₂ systems be designed and installed by professionals to ensure occupational safety compliance, including NFPA 12, ISO, and local safety standards.
System Design and Installation
Each CO₂ fire suppression system is customized based on:
- Volume of the protected area
- Fire hazard classification
- Ventilation and leakage factors
- Risk assessment for human occupancy
The design includes detailed flow calculations, discharge time assessments, and nozzle layout to ensure total fire suppression coverage.
Applications of CO₂ Fire Fighting Systems
- Power plants and substations
- Marine vessels and engine compartments
- Pharmaceutical and chemical manufacturing
- Oil and gas facilities
- Data centers and server rooms
- Automated manufacturing lines
- Industrial ovens and furnaces
Compliance and Certification
Our CO₂ systems are designed to meet or exceed all relevant fire safety standards, including:
- NFPA 12 – Carbon Dioxide Extinguishing Systems
- ISO 6183 – CO₂ Fire Protection Systems
- FM Approved and UL Listed components
- Local fire code regulations and health & safety laws
Each system includes a complete documentation package with:
- System drawings and flow diagrams
- Component data sheets
- Pressure test reports
- Installation manuals
- Maintenance procedures
- Certification and compliance records
Why Choose Our CO₂ Fire Protection Systems?
With decades of experience in fire suppression system design and engineering, we offer:
- ✅ Turnkey solutions – from design to installation and maintenance
- ✅ Factory-tested components for reliable performance
- ✅ Custom-engineered systems for specific fire risks
- ✅ Expert consultation and regulatory compliance
- ✅ On-site training and technical support
Conclusion
A CO₂ fire fighting system is a powerful, reliable, and residue-free fire suppression solution for critical environments. Designed to protect both property and operations, this system provides peace of mind where fire risk is high and downtime is not an option.
