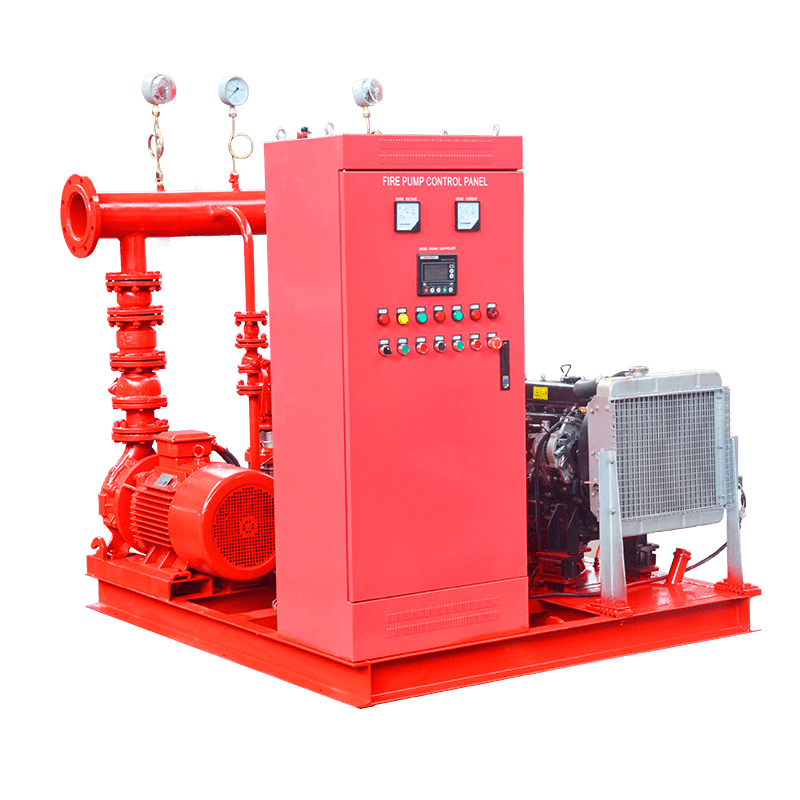

Combine Controller Fire Pump Set is a complete and efficient fire protection solution designed for modern firefighting systems. It integrates electric motor driven pumps, diesel engine driven pumps, and electric motor driven jockey pumps into a single, automatic fire pump package.
This system ensures continuous water supply for fire suppression systems, even if one power source fails. Therefore, it guarantees reliable operation during critical fire emergencies. In addition, the system complies with Local Civil Defense Authority regulations and International Codes of Practice, including the National Fire Protection Association (NFPA) standards.
Technical Specifications
- Flow: 30–1250 GPM
- Head: 3–20 Bar
- Caliber: 25–800 mm
- Power:
- Diesel Engine: 1.5–315 kW
- Electric Motor: 1.5–315 kW
- Jockey Pump: 0.55–160 kW
- Speed: 740–2900 r/min
- Material: HT200, SS304, Bronze
These wide ranges make the Combine Controller Fire Pump Set suitable for diverse firefighting applications, including residential, commercial, and industrial systems.
Types of Fire Pumps Used
The Combine Fire Pump Set can include various pump types depending on project requirements and installation preferences. Common configurations include:
- End Suction Pump – Compact and easy to maintain.
- Horizontal Split Case Pump – Ideal for large capacity systems.
- Vertical Split Case Pump – Space-saving design for vertical alignment.
- Vertical Inline Pump – Streamlined design with simplified piping.
- Vertical Turbine Pump – Perfect for deep well or underground water sources.
Each pump type is selected based on performance, flow rate, and pressure requirements.
Product Introduction of Fire Pump Sets
1. Electric Motor Driven Pump
The electric fire pump can use a single-stage, horizontal split case, end suction, or multistage pump configuration.
Materials are available in cast iron (HT200), stainless steel (SS304), or bronze impellers, ensuring durability and corrosion resistance. Moreover, this pump provides reliable performance under continuous operation.
2. Diesel Engine Driven Pump
The diesel engine fire pump features capacity and head equal to the electric pump. It includes a fuel tank, cooling water tank, fan, and control box for autonomous operation.
Therefore, it provides backup performance when electric power is unavailable.
3. Jockey Pump
The jockey pump, available in horizontal or vertical models, maintains constant system pressure. Although its capacity is smaller, the head is higher than that of the main electric and diesel pumps. Consequently, it prevents frequent start-ups of the main pumps.
4. Control Panel
The Combine Controller Panel automatically controls all three pumps—electric, diesel, and jockey. It features overload and overcurrent protection, ensuring safe and efficient operation. In addition, the control panel allows for both manual and automatic modes.
5. Accessories
The fire pump set includes essential accessories such as:
- Check valve, gate valve, pressure vessel (0.6 MPa, 1.0 MPa, 1.6 MPa)
- Pressure gauge and pressure sensor
- Common suction and discharge pipes
- Flexible joints and flanges
- Common base plate for complete assembly
All components are designed for easy installation and maintenance. Thus, they provide long-term reliability for firefighting systems.
Advantages of Combine Controller Fire Pump Sets
- Automatic operation with seamless switch between electric and diesel pumps.
- Continuous water supply during power failure or emergency.
- Complies with NFPA, UL, and FM standards for safety and reliability.
- Durable materials like HT200, SS304, and bronze for extended lifespan.
- Compact structure for easy installation and reduced footprint.
- Low maintenance requirements due to robust engineering and smart controls.
Applications
The Combine Controller Fire Pump Set is widely used in:
- High-rise buildings and commercial complexes
- Industrial plants and factories
- Oil and gas facilities
- Water treatment plants
- Hospitals and data centers
- Residential and government buildings
Its versatility and compliance with global standards make it a trusted choice for all major fire protection projects.
Conclusion
In conclusion, the Combine Controller Fire Pump Set offers a comprehensive and dependable solution for firefighting systems. With flow rates of 30–1250 GPM, heads up to 20 Bar, and power options from 1.5 to 315 kW, it meets a wide range of requirements.
Moreover, its combination of electric, diesel, and jockey pumps, along with a smart control panel and premium materials, ensures optimal safety, efficiency, and long-term performance. Therefore, it is the preferred solution for any modern fire protection system that demands reliability and compliance with NFPA and international standards.
