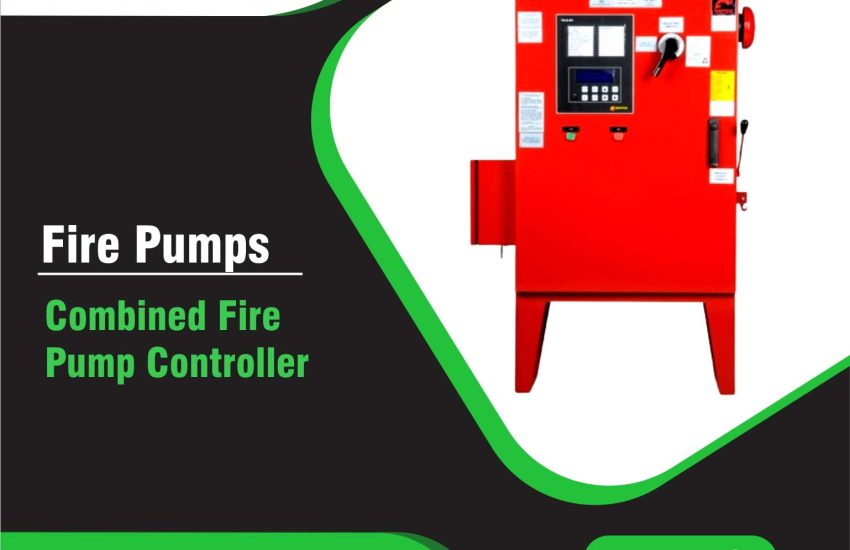

Combined Fire Pump Controller is a critical component in fire protection systems, designed to manage multiple fire pumps and ensure their reliable operation during emergencies. It combines the functions of a motor controller, monitoring system, and protection features into one unified unit. These controllers are essential for both diesel engine fire pumps and electric fire pumps, providing seamless integration and control for a variety of fire suppression systems.

In this article, we will explore the key specifications, features, and benefits of a Combined Fire Pump Controller, highlighting its role in modern fire protection systems.

Key Specifications of Combined Fire Pump Controllers

1. Power Supply and Voltage Ratings

Combined Fire Pump Controllers are designed to handle various power requirements, typically operating with three-phase AC power. They can support 208V, 480V, 600V, and other standard voltages, ensuring compatibility with both electric and diesel engine fire pumps. The controller efficiently manages the electrical supply to the pumps, ensuring reliable operation during an emergency.

2. Enclosure Type and Protection

The controller is housed in a durable NEMA enclosure designed to protect against environmental hazards such as moisture, dust, and corrosion. Common types of enclosures include NEMA 1 (general purpose), NEMA 3R (rainproof), NEMA 4X (corrosion-resistant), and NEMA 12 (dust-tight). The enclosure type is selected based on the installation environment to ensure the controller’s longevity and reliability.

3. Automatic and Manual Operation

A Combined Fire Pump Controller supports both automatic and manual operation modes. In automatic mode, the controller detects changes in pressure or fire detection systems and automatically activates the fire pump. Manual mode allows operators to perform testing and maintenance without triggering the pumps. This flexibility ensures that the system can be easily adjusted for different operational needs.

4. Overcurrent and Short-Circuit Protection

These controllers include over current protection to prevent damage to the electrical circuits and fire pump motors during power surges. They also feature short-circuit protection, ensuring that the system remains safe and operational even if a short circuit occurs in the system wiring.

5. Under voltage Protection

Under voltage protection ensures that the fire pump will only run when the voltage is within safe limits. If the voltage falls below the required threshold, the controller prevents the pump from starting, reducing the risk of damage to the pump and its components.

6. Battery Backup

The battery backup feature ensures that the fire pump controller remains operational even during a power outage. This feature is vital for maintaining control of the fire pump during emergencies when external power sources are unavailable. The backup system allows for seamless pump operation without interruption.

7. Transfer Switch

The transfer switch feature is crucial for switching between the primary power source and backup power during emergencies. This ensures that the fire pump remains functional in the event of a power failure, allowing the system to run on an auxiliary power source like a generator.

8. Status Indicators and Alarms

Combined Fire Pump Controllers include status indicators and alarms to monitor system performance. These alerts notify operators of issues such as low battery power, engine failure, or a malfunctioning pump. Remote monitoring capabilities also allow operators to track system status from a distance, ensuring that the fire protection system is always ready for use.

Features and Benefits of Combined Fire Pump Controllers

1. Multi-Pump Control

A Combined Fire Pump Controller can manage both electric and diesel fire pumps, making it ideal for large-scale fire protection systems. It provides seamless integration and control of multiple pumps, ensuring that the fire suppression system remains operational under various conditions.

2. Cost-Effective Solution

Combined Fire Pump Controllers are a cost-effective solution for businesses and facilities with multiple pumps. Rather than installing separate controllers for each pump, the combined controller consolidates control into one unit, reducing installation and maintenance costs.

3. Reliability During Emergencies

These controllers are designed to provide reliable performance during fire emergencies. With features like automatic activation, over current protection, and battery backup, the controller ensures that the fire pump operates correctly when needed most.

4. Flexibility and Customization

The Combined Fire Pump Controller is highly customizable to fit specific needs. It can be adapted for different power sources, fire pump configurations, and installation environments. This flexibility ensures that the controller can meet the unique requirements of various facilities and fire protection systems.

5. Enhanced Safety Features

Safety is a top priority in fire protection systems, and Combined Fire Pump Controllers come equipped with several safety features. These include engine protection, pressure monitoring, and overload protection. These features protect both the fire pump and the electrical system, reducing the risk of failure during critical moments.

6. Ease of Maintenance

These controllers are designed for easy maintenance and troubleshooting. They include diagnostic tools that help identify potential issues, allowing operators to quickly address any problems and keep the system running smoothly.

7. Remote Monitoring Capabilities

With remote monitoring, operators can access real-time data and control the fire pump system from a distance. This feature enhances operational efficiency and ensures that the system is always being monitored, even during off-hours.

Applications of Combined Fire Pump Controllers

Combined Fire Pump Controllers are used in various applications, including:

• Commercial Buildings: These controllers provide reliable fire protection for office buildings, shopping malls, and hotels.
• Industrial Facilities: Factories, manufacturing plants, and chemical plants use these controllers for fire suppression and protection.
• Residential Complexes: Large residential buildings and complexes require these controllers for reliable fire protection systems.
• Public Infrastructure: Fire stations, water treatment plants, and power plants rely on combined controllers to manage fire pump systems effectively.

Conclusion

The Combined Fire Pump Controller plays a vital role in modern fire protection systems. With features like multi-pump control, over current protection, battery backup, and remote monitoring, these controllers ensure that fire pumps operate efficiently and reliably during emergencies. They offer a cost-effective, flexible, and reliable solution for facilities of all sizes. Whether for commercial, industrial, or residential use, the combined controller ensures optimal performance and safety of fire suppression systems, providing peace of mind when it matters most.
