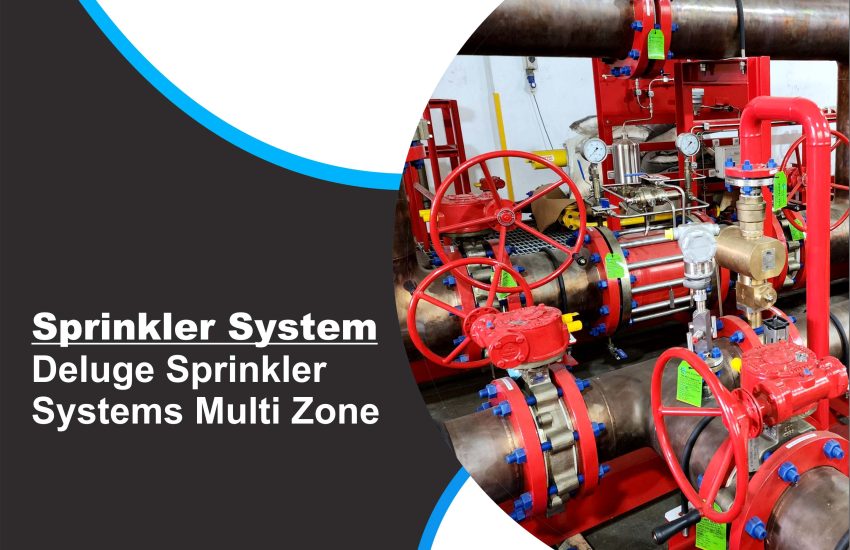

Deluge Sprinkler Systems Multi Zone designed for high-performance fire protection in hazardous and high-risk areas. Engineered for rapid response, this deluge skid solution delivers fast and efficient discharge of water or foam in emergency fire scenarios.
Ideal for oil & gas facilities, chemical plants, power generation stations, and marine installations, these systems offer exceptional fire suppression, cooling capability, and area-wide fire containment. Each system is customizable, ensuring compliance with both international safety standards and project-specific fire protection requirements.
How the Deluge Sprinkler Systems Multi Zone Works
The Deluge Sprinkler Systems Multi Zone operates through a network of dry piping and open nozzles, connected to a reliable water or foam supply. The system activates using a deluge valve, which may be configured as:
- Single on-off valve
- Pressure-regulated deluge valve
Activation methods include pneumatic, hydraulic, or electric signal release mechanisms, offering flexibility for integration into existing safety systems.
Each deluge skid unit is preassembled and includes all necessary components for operation, maintenance, and testing. It can be delivered with internal cabinet piping or on an open frame, depending on the project’s spatial and environmental requirements.
Compliance & Customization of Deluge Sprinkler Systems Multi Zone
This systems can be tailored to meet global standards, ensuring compliance with FM, UL, NFPA, DNV, BV, ASME, NMD, IMO, NORSOK, E, and DIN regulations. Each unit comes with:
- Full project documentation
- Third-party certifications (e.g., DNV/GL, ABS, BV)
- Detailed performance and test reports
These certified deluge systems are also compatible with IEC 61508 SIL 2/3 safety integrity levels, ensuring operational reliability in critical safety applications.
Foam Fire Suppression Options
To enhance protection against pool fires and flammable liquid hazards, This deluge systems can integrate with advanced foam proportioning systems, such as:
- Turbine foam proportioners
- Balanced pressure proportioners
- Foam inductors
- Constant flow orifices
Foam tanks can be installed internally or externally on the skid, or sourced from a central foam system, depending on fire risk assessments and space considerations.
Nozzle Configurations & Spray Patterns
This designs each system with the optimal nozzle layout, customized through hydraulic calculations for efficient fire coverage. Nozzle types include:
- Medium velocity deluge nozzles
- High velocity deluge nozzles
- Open sprinkler heads
These nozzle options ensure precise flow control, excellent cooling effects, and effective flame knockdown, especially critical in high-heat or explosive environments.
Key Features of Multi Zone Deluge Systems
- Outlets available from 2 to 12 inches
- Regulating or non-regulating deluge valves
- Customizable for multiple fire zones
- ATEX, UL, CSA certified for hazardous areas
- SIL 2 and SIL 3 compliance (IEC 61508)
- Flow performance up to 35,000 LPM
- Eco-friendly design for sensitive environments
Material Selection
This Systems offers material options to suit environmental, corrosive, and regulatory requirements, including:
- Galvanized carbon steel
- Copper nickel
- Super duplex
- Titanium
- Duplex stainless steel
- SS316
- 6Mo
- GRE (Glass Reinforced Epoxy)
Project Documentation
Each multi zone deluge system comes with a comprehensive documentation package, which may include:
- Quality Plan (QP)
- Inspection & Test Plan (ITP)
- Technical Drawings
- Data Sheets
- Engineering Calculations
- Operation & Maintenance Manual (O&M)
- Material Review Book (MRB)
- Certification and Third-party Approvals
Conclusion
Multi Zone Deluge Sprinkler System is a powerful, customizable solution for industries where fire risks are extreme and fast suppression is essential. With its modular skid design, compatibility with global standards, and robust fire-fighting capabilities, this Systems delivers premium fire protection where it matters most.
