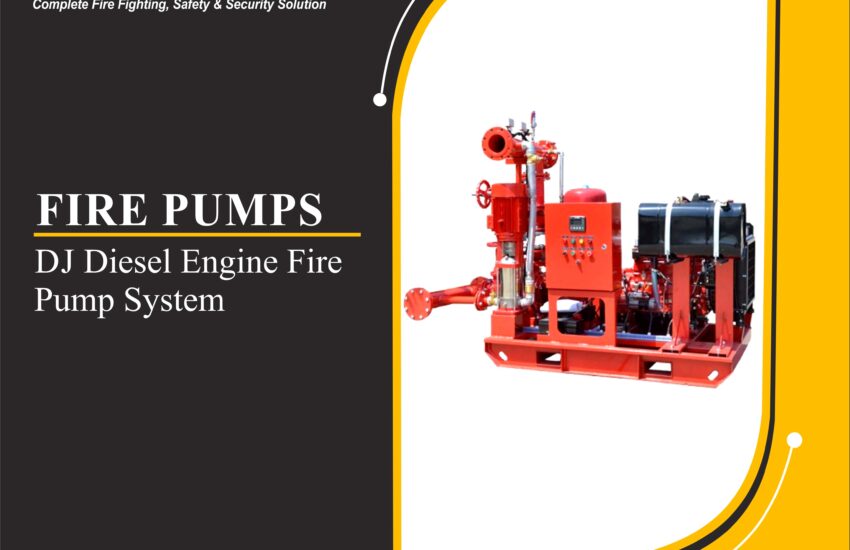

DJ Diesel Engine Fire Pump System is an essential part of modern firefighting and building protection infrastructure. Designed to deliver powerful and reliable water pressure during emergencies, this system ensures continuous operation even in case of power failure. With a flow range of 30–9000 GPM and a head of 3–20 Bar, it provides exceptional performance across a variety of industrial, commercial, and municipal fire protection applications.
Technical Specifications
- Flow Range: 30–9000 GPM
- Head: 3–20 Bar
- Caliber: 25–800 mm
- Power:
- Diesel Pump / Electric Pump: 1.5–710 kW
- Jockey Pump: 0.55–160 kW
- Speed: 740–2900 r/min
- Material Options: HT200 cast iron, SS304 stainless steel, bronze
System Configuration
The fire pump set includes three major components — a diesel engine pump, a jockey pump, and an automatic control panel — along with essential accessories for smooth operation.
1. Diesel Engine Pump
The diesel engine pump can be configured as a single-stage pump, horizontal split-case pump, end-suction pump, or multistage pump. Material choices include cast iron, stainless steel, or bronze impellers for enhanced durability and corrosion resistance.
Each unit comes complete with a fuel tank, cooling water tank, fan, and control box, ensuring stable operation during fire emergencies and power outages.
2. Jockey Pump
The jockey pump maintains system pressure to prevent frequent operation of the main fire pump. Available in horizontal or vertical configurations, it has a higher head but smaller capacity compared to the main pump.
- Casing Material: Cast iron
- Shaft and Impeller: SS304 stainless steel
3. Control Panel
The automatic control panel manages both the diesel and jockey pumps. It features overload and overcurrent protection, ensuring reliable system performance and safety under all conditions.
Included Accessories
The diesel engine fire pump system comes equipped with all necessary fire pump accessories for easy installation and maintenance:
- Check valve, gate valve
- Pressure vessel (0.6 MPa, 1.0 MPa, 1.6 MPa options)
- Pressure gauge and pressure sensor
- Common suction and discharge piping
- Flexible rubber joints and flanges
- Common base plate
Earthquake-resistant electrical contact pressure gauges are fitted with buffer valves to minimize false alarms caused by pressure fluctuations. Flexible rubber joints help absorb vibration and noise generated during pump startup, preventing pipeline damage and ensuring longer system life.
Key Features and Benefits
- Reliable performance during power outages
- Suitable for industrial, commercial, and municipal fire protection systems
- Corrosion-resistant materials extend pump lifespan
- Automatic control and protection features for safety
- Customizable configurations to meet diverse requirements
- Low maintenance and long operational life
Applications
- Building and facility fire protection
- Industrial firefighting systems
- Municipal water supply for fire safety
- Oil, gas, and chemical industries
- Marine and offshore platforms
