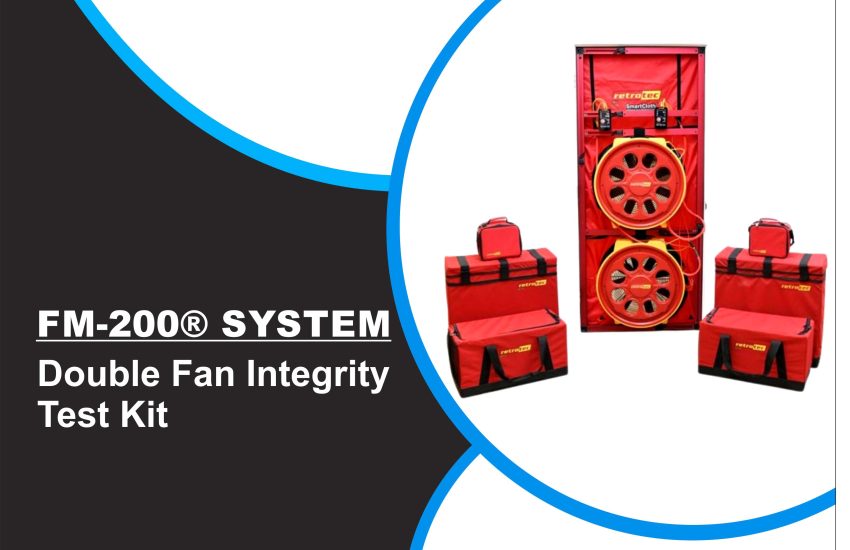

Double Fan Integrity Test Kit stands out as a top-tier solution. this kit combines two complete 5110F systems into one powerful unit. It offers unmatched flexibility—both systems can be used independently or together, and when paired with the Leakage Split Kit, users can neutralize ceiling voids with precision.
Moreover, the kit includes the revolutionary DM32X gauge, which delivers highly accurate and real-time results for pressure and leakage testing. This ensures full compliance with global fire suppression standards, including NFPA 2001 and ISO 14520.
Why Choose item ?
Since introducing the concept of enclosure integrity testing in 1984, Fire Protection team has led innovation in this field. In fact, the company not only promoted these practices through NFPA but also authored the first official standard in 1986. Today, every major clean agent system manufacturer depends on data and tools for hold time verification and peak pressure prediction.
What’s Included in the 5210F Double Fan Kit?
This complete system has everything needed to perform professional blower door and enclosure integrity tests for large-scale spaces:
🔹 2 x DM32X Digital Gauge Packages
- DM32X gauge (new release)
- USB-C charging cable
- Cat5 communication cable
- Magnetic mounting clip
- Hard-shell gauge case
- ISO17025 calibration certificate
- Calibration verification report
🔹 2 x 5000 Series Calibrated Fan Sets
Each fan set includes:
- 5000 Series calibrated fan (various voltage options)
- Range Ring A and B8 Plate
- Ranges 74, 47, and 29
- 8 x 4″ blank plugs
- 1 x Fan cover
- System calibration verification report
🔹 1 x Large Door Frame Package
- Large red anodized aluminum frame
- Smart Cloth panel (double fan compatible)
- #5 and #6 crossbars
- 3 x crossbar straps for fan mounting
🔹 Additional Accessories
- Double fan cloth panel
- Large roll-up cloth case
- 2 x fan transport cases
- 2 x system accessory cases
- 8 x rolls of grill masks
- 2 x blower door tubing kits
- 2 x umbilical cords (7 ft / 2 m each)
- Leakage Split Kit
Fan Flow Performance
| Condition | CFM | Liters/sec | m³/h |
|---|---|---|---|
| Free Air | 6,400 | 3,020 | 10,874 |
| @ 50 Pa | 5,700 | 2,690 | 9,684 |
| @ 75 Pa | 5,400 | 2,549 | 9,175 |
| Min Flow (B29) @ 50 Pa | 9 | 4 | 15 |
Note: Reduce airflow values by 15% when using 50 Hz fans.
Dimensions and Power Specifications
- Fan Inlet Diameter: 22″ (55.9 cm)
- Height: 25″ (63.5 cm)
- Length: 9.75″ (24.8 cm)
- Weight (with accessories): 35.2 lb (16.0 kg)
- Flow Accuracy: ±5%
- Power Options:
- 120V @ 60Hz / 11A
- 240V @ 50Hz / 4.9A
- 110V @ 50Hz / 8.9A
- Recommended Calibration Interval: Every 5 years
Frame and Door Panel Specs
- Model AL265: Large cloth panel for double fans
- Model AL261: Single cloth panel for large frame
- Model AL260: Frame only
- Collapsed Frame Size: 31 5/8” × 59 1/2” (80.3 cm × 151.1 cm)
- Expanded Frame Size: 51” × 109 1/4” (129.5 cm × 277.5 cm)
- Frame Thickness: 1.75” (5.3 cm)
Applications
The Double Fan Integrity Test Kit is ideal for large-scale environments where precise airflow and leakage measurements are essential. These include:
- Data centers
- Power stations
- Clean rooms
- Museums and archives
- Oil & gas control rooms
- Large server facilities
- Telecommunications hubs
Each application benefits from the kit’s high airflow capacity and accuracy, which ensures agents like FM-200, Novec 1230, Inergen, and CO2 perform effectively.
Final Thoughts
Choosing the Double Fan Integrity Test Kit means investing in industry-leading performance, precision, and compliance. With dual high-powered fans, the latest DM32X gauge, and a complete suite of accessories, you’ll have everything needed to perform accurate and efficient enclosure integrity tests—no matter the size of the room.
