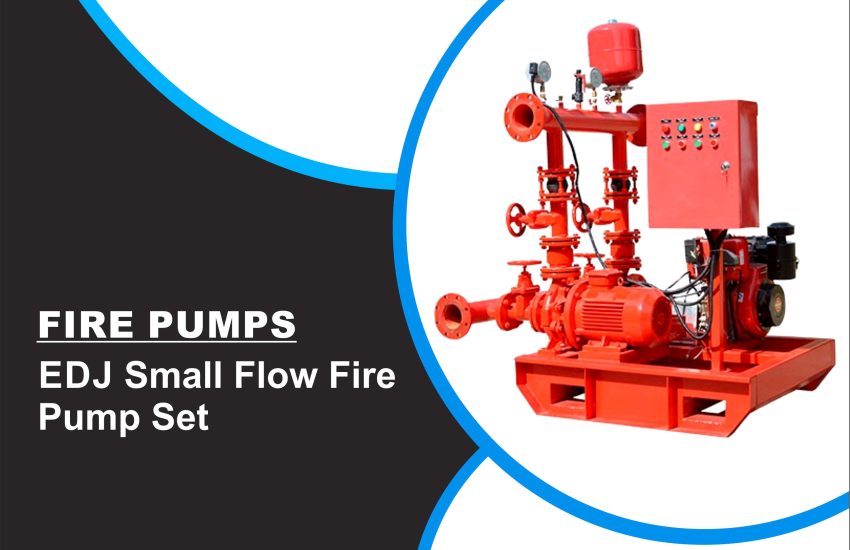

EDJ Small Flow Fire Pump Set, developed by Better Technology Co., Ltd., is a dependable and certified solution for fire water supply systems. Designed in compliance with both Chinese national standard GB27898.5-2011 and the NFPA20 (2016), it delivers outstanding performance in fire protection applications. Notably, it also meets the latest CCCF certification requirements, ensuring national-level safety and quality assurance.
Thanks to its compact design and modular structure, this fire pump package is easy to install and maintain. Additionally, it offers consistent and rapid response during fire emergencies, making it an essential component in any modern fire protection system.
Product Structure:
Key Specifications of EDJ Small Flow Fire Pump Set
| Parameter | Details |
|---|---|
| Flow Rate | 6 ~ 100 m³/h (approx. 30–440 GPM) |
| Head | 24 ~ 150 m |
| Inlet/Outlet Size | 50 ~ 150 mm |
| Pump Speed | 1500 ~ 3000 r/min |
| Materials | Cast Iron / Stainless Steel / Bronze |
| Altitude | ≤ 1000 m |
| Operating Temp. | +5°C to +40°C |
| Humidity | ≤ 90% |
System Components
🟩 Electric Pump
This component serves as the primary power source under normal conditions. Various pump types are available, including end-suction, split-case, and multistage models. Material options such as cast iron, stainless steel, and bronze impellers ensure durability in diverse environments.
- Power: 5.5–710 kW
- Flow: 10–420 L/s
- Pressure: 0.3–1.2 MPa
🟨 Diesel Pump
In case of power failure, the diesel engine pump acts as a reliable backup. It connects via a high-elastic coupling or universal joint and includes an integrated water tank, fuel tank, control panel, and cooling system.
- Power: 7.0–810 kW
- Flow/Pressure: Same as electric pump
🟦 Jockey Pump (Optional)
Although typically excluded from small flow sets, jockey pumps are included in large flow units. These are high-head, low-flow pumps that maintain system pressure and reduce energy consumption.
- Power: 0.75–4 kW
- Head: 0.45–1.36 MPa
- Flow: 2–4 m³/h
🟥 Control Panel
This intelligent control unit ensures full automation, offering features such as overload and overcurrent protection. Moreover, remote monitoring is possible through a smartphone app for added convenience.
🟧 Accessories
A comprehensive set of accessories supports optimal operation:
- Check valves, gate valves
- Diaphragm pressure tanks (0.6 MPa, 1.0 MPa, 1.6 MPa)
- Pressure gauges and sensors
- Import/export pipes, soft joints, flanges, and baseplates
Classification by Flow
To meet different usage scenarios, fire pump sets are categorized into:
- Small Flow Units (30–100 GPM): Generally include only motor and engine pump sets
- Large Flow Units (120–5000 GPM): Equipped with motor, engine, and jockey pump sets
Wide Range of Applications
Because of its flexibility and certifications, the EDJ Small Flow Fire Pump Set is suited for:
- Fire protection in high-rise buildings, institutions, and residential complexes
- Automatic sprinkler systems and fixed firefighting installations
- Emergency water supply in industrial facilities, chemical plants, power stations, and municipal projects
- Critical safety systems in airports, seaports, warehouses, textile mills, oil tankers, and military bases
Advantages of the EDJ Fire Pump Set
✅ High Reliability
Unlike standard systems, this package continues operating even during electrical outages. It can fully activate within 15 seconds after receiving a start signal. The use of a universal joint enhances transmission efficiency and reduces vibrations, improving system stability.
✅ Energy Efficiency
The jockey pump and diaphragm pressure tank work together to maintain pressure, minimizing the need for full pump activation and saving electricity in standby mode.
✅ Convenience and Smart Control
With remote control capabilities via mobile app, operators can monitor and manage the system anytime, from anywhere. Its compact layout allows for easy maintenance and minimal footprint.
Explore the EDJ Small Flow Fire Pump Set by Better Technology Co., Ltd. Flow range 6–100m³/h, head up to 150m. Certified to GB27898.5-2011 & NFPA20. Reliable fire water supply for buildings, airports, and industrial zones.
✅ Technological Sophistication of EDJ Small Flow Fire Pump Set
The system integrates automatic control panels and offers complete customization based on user needs. While the motor pump handles daily operations, the diesel pump ensures standby readiness, making the system robust under any emergency.
Final Thoughts
The EDJ Small Flow Fire Pump Set is a premium firefighting solution that blends certified safety, automated intelligence, and energy efficiency. Whether it’s for commercial buildings, industrial zones, or critical infrastructure, this system delivers reliable fire water supply where it matters most.
