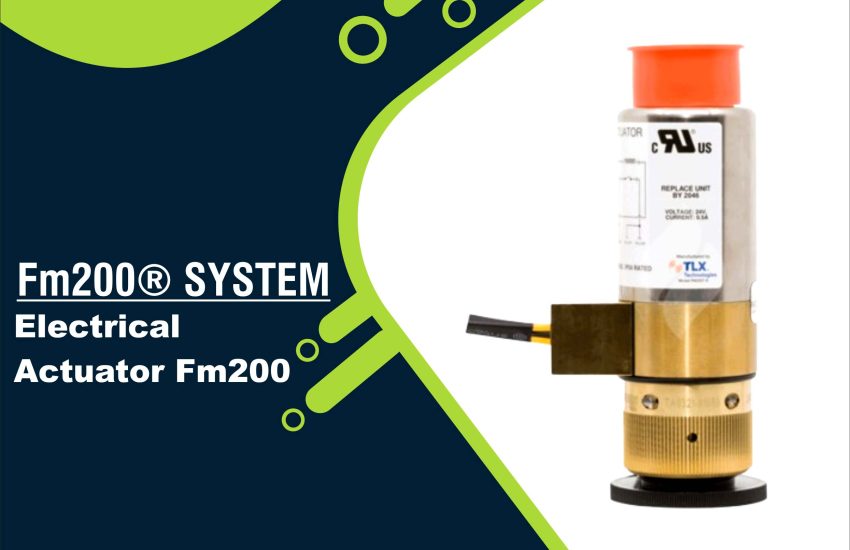

Electrical Actuator FM200 is an essential component in advanced control and fire suppression systems, offering accurate and reliable performance in critical applications. Designed for latching actuation, this actuator combines robust materials, compliance with global standards, and long operational life. Ideal for FM200 systems and industrial safety setups, the actuator ensures consistent function under demanding conditions.
Product Overview
Available under the product codes 304205030 (USA) and 304205040 (China), this 24VDC latching electrical actuator is manufactured with high-grade materials and certified to UL, FM, and CE standards, including EN 12094-4. It features a mild steel body with electroless nickel plating, stainless steel actuation pin, and brass CZ121 loose nut, ensuring corrosion resistance and structural durability.
Key Features & Technical Specifications
- Product Codes: 304205030 (USA), 304205040 (China)
- Body Material: Mild steel, electroless nickel plate finish
- Actuation Pin: Stainless steel
- Loose Nut: Brass CZ121 (CW614N)
- Actuation Type: Latching
- Reset Requirement: Manual with reset tool (included)
- Connection: 1 in. BSPP thread
- Voltage: Nominal 24 VDC
- Minimum Firing Voltage (CE): 20.5 VDC
- UL 864 Requirement: 15.6 VDC (65% of nominal voltage)
- Current Ratings:
- Minimum: 0.32 A
- Nominal: 0.43 A
- Maximum: 0.54 A
- Monitoring: Max 30 mA
- Trigger Signal Duration: Minimum 1 second
- Duty Cycle: Continuous
- Manual Actuation Force: 50 N (11.00 lbf)
- Nominal Pin Travel: 4.57 mm (0.18 in.)
Electrical and Environmental Specifications
- Electrical Connection: 1/2 in. NPT female conduit with built-in bridge rectifier
- Back EMF Protection: Integrated bridge rectifier
- Temperature Range:
- CE Certified: -20°C to 50°C (-4°F to 122°F)
- UL/FM Certified: -18°C to 54°C (0°F to 130°F)
- Ingress Protection: IP54
- Humidity Tolerance: 80–90% RH (non-condensing)
- Life Span: 25 years
- Testing: 100% start/finish position verification
Performance Characteristics – Actuation Force by Pin Travel
- 1 mm from unactivated: Minimum 66.4 N
- 2 mm from unactivated: Minimum 60.7 N
- 3 mm from unactivated: Minimum 55.0 N
- 4 mm from unactivated: Minimum 49.3 N
Certifications & Marking
- Approvals: UL, FM, CE
- Standard Compliance: EN 12094-4
- CE Certifications:
- CE 0832-CPR-S0072
- CE 2831-CPR-S0072
- Marking Includes:
- Manufacturer’s mark
- Part number
- Serial number
- 24 VDC, 0.90 A
- CE0832 or CE2831
- Marking Method: Laser or engraved
Dimensions and Weight
- Size: 132 mm (L) x 73 mm (W) (5.19 in. x 2.87 in.)
- Weight: 1 kg (2.2 lb)
Applications
- FM200 and clean agent fire suppression systems
- Industrial control valves
- Emergency fire protection systems
- HVAC and mechanical safety setups
- Automated safety shutdown mechanisms
Conclusion
Electrical Actuator FM200 Engineered for precision and durability, this 24VDC latching electrical actuator is a high-performance component ideal for fire suppression systems, safety controls, and industrial automation. With UL, FM, and CE certifications, and a proven 25-year life span, it offers unmatched reliability in mission-critical environments.
