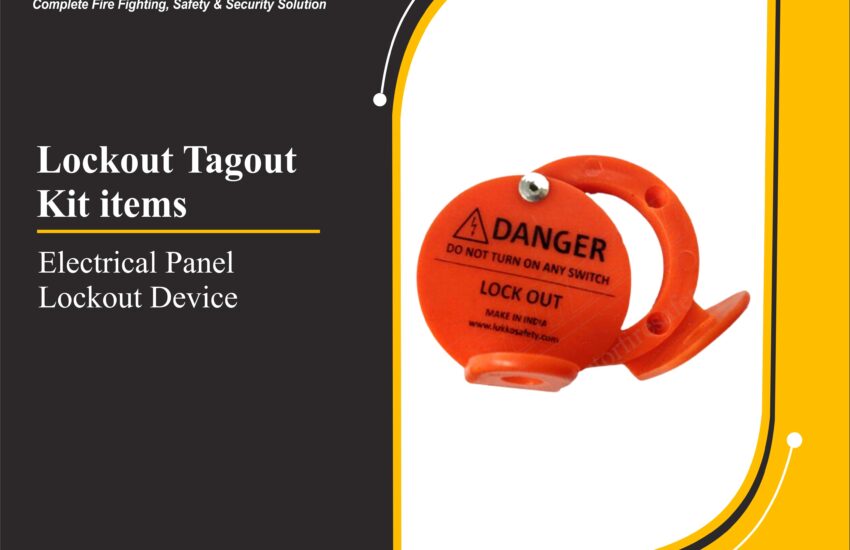

Electrical Panel Lockout Device provides a simple yet highly effective way to secure electrical panels and circuit breakers. Designed with safety and efficiency in mind, this round-shaped, dielectric lockout device prevents unauthorized or accidental access to air circuit breakers, vacuum circuit breakers, and panel switches. Built from durable ABS material and riveted for strength, it ensures long-term use in industrial environments.
✅ Key Features of Electrical Panel Lockout Device
🔒 Enhanced Electrical Safety
This device locks out the racking in/out points of air circuit breakers (ACB) and vacuum circuit breakers (VCB). It prevents accidental operation and enhances electrical isolation during maintenance or shutdown.
It’s also ideal for switches mounted on flat surfaces, such as electrical control panels, panel board switches, and distribution boards.
🔩 Durable Riveted ABS Construction
- Material: Made from high-strength ABS plastic, known for its durability and non-conductive properties.
- The two-part body is riveted together, allowing 360-degree rotation for flexible installation.
⚙️ Mounting Flexibility
- The bottom part includes three screw holes for secure mounting on panels.
- Alternatively, the device can be fixed using strong double-sided pre-adhesive tape, making it suitable for surfaces without screw access.
📐 Technical Specifications
- Outer Diameter: 45 mm
- Inner Diameter: 32 mm
- Lower Cover Thickness: 6 mm
- Overall Thickness: 7.5 mm
- Hole Diameter: 7 mm
- Color: Standard Safety Yellow (custom colors available on request)
🛠 Applications
The Electrical Panel Lockout Device is widely used in:
- Electrical switchboards
- Air circuit breaker panels
- Vacuum circuit breaker panels
- Control panels
- Industrial electrical systems
- Flat surface switch locks
- Energy isolation procedures
It’s perfect for industries that require LOTO (Lockout Tagout) safety protocols, including manufacturing, utilities, electrical maintenance, and construction.
💡 Why Choose This Lockout Device?
- Prevents accidental operation of electrical panels
- Easy to install with screws or adhesive
- Strong and durable ABS body
- Compact design for minimal intrusion
- Compatible with a wide range of electrical panels and switch types
- Complies with electrical safety lockout standards
Related Safety Products
- Safety Padlock
- Circuit Breaker Lockout
- Safety Cable Lockout
- Electrical Switch Lockout
- Safety Valve Lockout
- Lockout Hasp
- Lockout Stations
- Ball Valve Lockout Devices
- Rotating Gate Valve Lockouts
✅ Conclusion
The Electrical Panel Lockout Device offers a reliable, compact, and cost-effective solution for securing electrical panels and circuit breakers. Its ABS body, riveted rotating design, and flexible mounting options make it suitable for all major industrial and commercial electrical safety needs. Use it to reinforce your lockout/tagout procedures and maintain OSHA-compliant safety standards across your facility.
