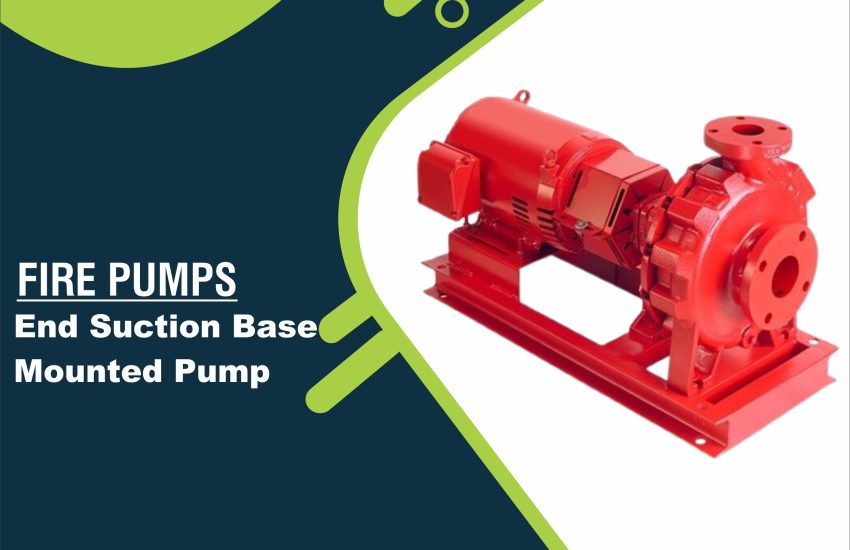

End Suction Base Mounted Pump Designed for HVAC systems, light industrial processes, and general-purpose pumping, this pump delivers high performance with low energy consumption and reduced maintenance needs over its lifetime.
Applications
Ideal for both commercial and industrial environments, the Armstrong 4030 horizontal end-suction pump supports:
- HVAC-system pumping
- Chilled water circulation
- Boiler feed applications
- Light industrial and process pumping
- General liquid transfer and pressure boosting
Product Description
The Armstrong 4030 end suction pump is built with a horizontal, single-stage design for base-mounted installation. It features NEMA-premium high-efficiency motors, reducing energy costs and delivering optimal hydraulic performance. Its simple, robust construction ensures ease of maintenance, increased uptime, and a longer operating lifespan.
Key Features:
- Horizontal, end-suction, base-mounted design
- Available in cast iron, ductile iron, or bronze casing
- Impellers made of cast iron or bronze for corrosion resistance
- Inside single spring mechanical seal for leak-proof operation
- Easy access to pump internals for simplified servicing
- Lower lifetime operating and maintenance costs compared to competitor models
Technical Specifications
- Performance Range: Up to 5,000 USgpm (315 L/s) flow; up to 600 ft (180 m) head
- Temperature Range: Handles up to 250°F (121°C)
- Power Range: From 0.33 hp to 300 hp (0.25 kW to 200 kW)
- Pump Size Range: From 1″ to 8” (25 mm to 200 mm)
Materials of Construction
- Casing Materials: Cast iron, ductile iron, bronze
- Impeller Materials: Cast iron, bronze
- Seal Type: Inside single spring mechanical seal
End Suction Base Mounted Pump These materials provide exceptional resistance to wear, corrosion, and temperature stress, making the Armstrong 4030 a durable option for demanding pumping applications.
