End Suction Pump Base Plate When it comes to reducing vibration and increasing operational stability for industrial pumping systems, the End Suction Pump Base Plate plays a crucial role. The VMC Group’s Pump Concrete Inertia Base for End Suction Pumps is a high-performance solution designed to deliver both durability and efficiency.
What is an End Suction Pump Base Plate?
End Suction Pump Base Plate, also known as a pump inertia base, is a structural foundation that supports end suction pumps. It is designed to minimize vibrations, reduce mechanical noise, and increase the overall longevity of the pump system.

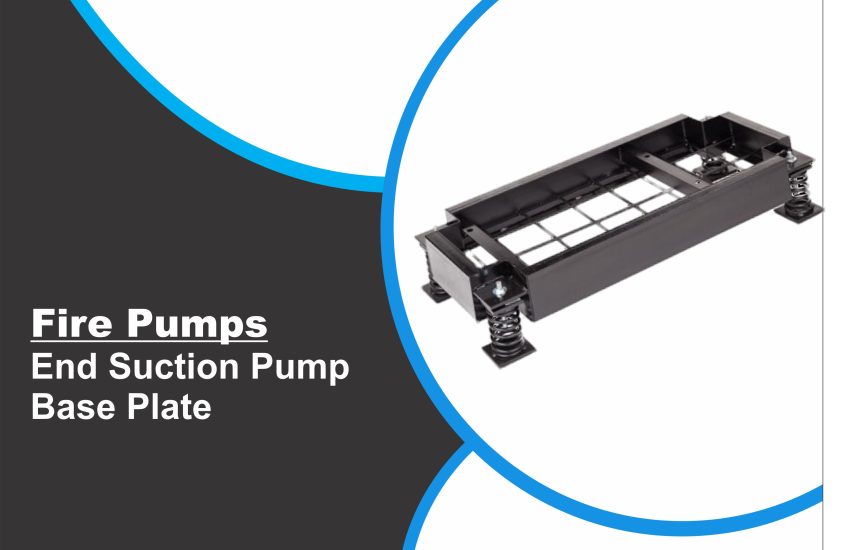

The VMC Group’s Pump Concrete Inertia Base End Suction Pumps feature a structural steel channel perimeter frame, reinforced steel supports, and equipment mounting templates with integrated anchor bolts. To further enhance vibration isolation, these pump bases include open spring isolators with height-saving brackets or optional recessed spring pockets.
Engineered for Performance
These pump base plates are rectangular and specifically engineered to support the base elbow of an end suction pump. Their design allows them to act as a solid inertia base once filled with concrete, offering an effective method to isolate vibration and limit pump motion. This stability helps prevent misalignment, excessive wear, and potential failure in mechanical systems.
Available Specifications
The VMC Group offers multiple configurations to meet project-specific requirements:
- Spring deflections available from 1″ to 5″
- Inertia base thicknesses available from 6″ to 12″
- Recessed spring pockets available upon request
These customizations allow engineers and contractors to match the inertia base to their exact vibration isolation needs.
Features & Benefits
- Reinforced steel frame for enhanced structural integrity
- Multiple deflection options to accommodate various vibration levels
- Custom base thicknesses for tailored support
- Spring isolators with optional recessed pockets
- Optimized vibration isolation for prolonged pump life and reduced maintenance
Applications
The Concrete Inertia Base End Suction Pump Plates are ideal for:
- Commercial HVAC systems
- Industrial pumping stations
- Water treatment plants
- Power generation facilities
- Any application requiring precise vibration isolation
