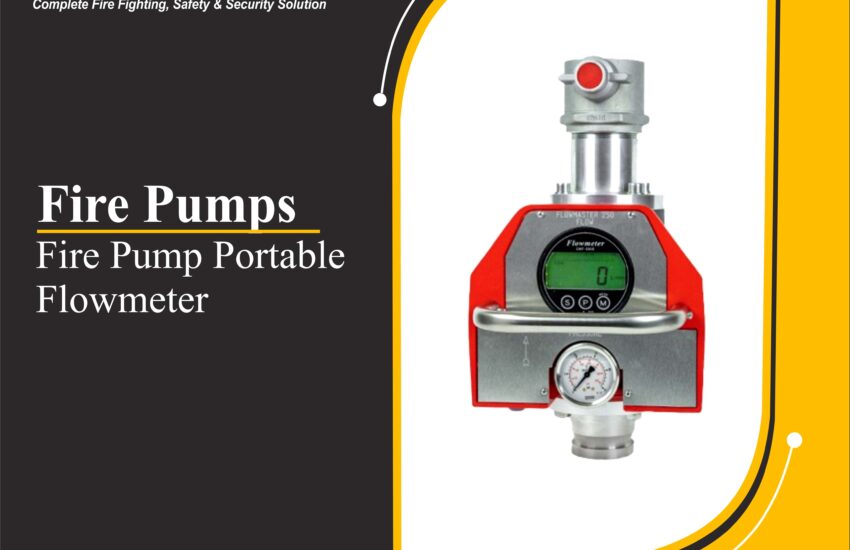

Fire Pump Portable Flowmeter is a precision-engineered instrument designed for accurate and reliable flow and pressure measurement in firefighting, industrial, and municipal water systems. Built for robust performance, this portable flowmeter ensures consistent results without being affected by debris or water quality.
It provides flow rate accuracy up to 98%, ensuring dependable readings during hydrant testing, fire pump testing, flushing operations, and water main condition testing. The device is simple to operate—just attach, switch on, and take precise flow and pressure readings, saving both time and maintenance costs.
Key Highlights
- Portable flowmeter for easy handling and transport
- Flow rate accuracy of 98% for dependable measurements
- Ease of use – simply attach and read
- No mechanical parts – eliminates wear and reduces maintenance
- Not affected by debris in water – ensures accurate readings even in challenging conditions
- No ghost readings – prevents false or unstable data
- Robust and reliable – suitable for heavy-duty field applications
Performance and Capability
This portable flowmeter measures flow rates up to 3,000 liters per minute (lpm) and pressures up to 25 bar, making it ideal for high-demand firefighting and water system applications.
The electromagnetic sensor has no moving parts, meaning measurement accuracy is not affected by particles or debris in the water. Weighing only 12.5 kg, it includes a convenient carry handle for portability and ease of use.
Technical Specifications
| Parameter | Details |
|---|---|
| Model No. | 34-2001 |
| Power Supply | Internal 12V DC battery pack (2.2 Ah), 10 hours continuous operation |
| Charger | Separate charging device included |
| Operating Temperature | -10°C to +50°C |
| Working Pressure | 16 bar |
| Maximum Pressure | 25 bar |
| Weight | 12.5 kg |
| Dimensions (mm) | 210 (H) x 240 (W) x 390 (L) |
Manometer Specifications
- Type: Bourdon tube
- Operating Range: 0–25 bar (±1% accuracy)
- Dial Size: 60mm, dual bar/psi gauge
- Housing: LM25 aluminum, red/natural finish
- Adapters Available:
- 2.5” BS Inst. M/F (standard)
- 2.5” BSP male thread
- Optional: 4” BSP male, ¾” male tapered adaptors
Flowmeter Specifications
- Type: Electromagnetic
- Operating Range: 30 to 3,000 lpm (extendable to 5,000 lpm)
- Accuracy:
- Above 750 lpm: ±15 lpm
- Below 750 lpm: ±2%
- Display:
- 4-digit backlit LCD
- 17.6mm digit size
- Flow bar chart display
- Display options: LPM or US GPM
- Functions:
- Real-time flow rate display
- Total volume used
Optional Accessories
Transport Case (Model No. 34-2104):
Durable transport case with castor wheels, extension handle, and custom-molded internal foam for protection. Weight: 7 kg.
Adaptors (Specify on Order):
- UK: 2.5” BS Inst. M/F
- North America: 2.5” NH
- EU: 2.5” BSP, Storz 65 or Storz B
- Optional: Gost, Nor, ¾” or 1” BSP hose reel adapters
Flow Monitoring System (Model No. 34-2200):
Data interface for electronic evaluation of measured flow data. Includes interface cables and PC software for exporting flow data in MS Excel format.
Applications
- Fire pump testing
- Hydrant testing
- Pipeline flushing
- Water main condition assessment
- Municipal and industrial water flow monitoring
Advantages of Using a Portable Fire Pump Flowmeter
- High accuracy and reliability for precise flow rate measurements.
- Maintenance-free operation – no moving parts mean longer lifespan.
- Quick setup and portability reduce testing time and operational costs.
- Versatile use across firefighting, industrial, and municipal applications.
- Data recording options for easy performance documentation.
Conclusion
The Fire Pump Portable Flowmeter offers unmatched accuracy, reliability, and convenience for professional water flow and pressure testing. With a non-mechanical electromagnetic sensor, 98% accuracy, and robust construction, it provides precise readings unaffected by debris or water impurities. Designed for field use, it’s the perfect solution for hydrant testing, pump performance checks, and water system evaluation—delivering dependable results that save both time and money.
