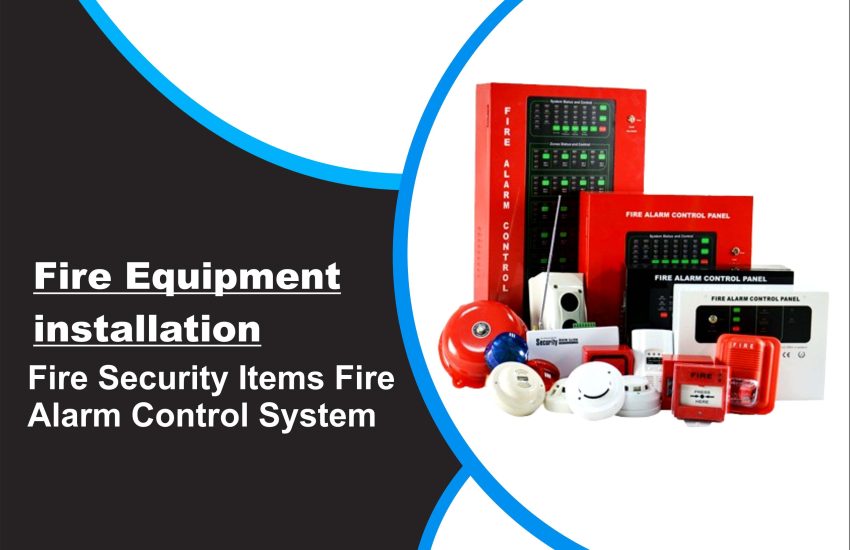

Fire Security Items Fire Alarm Control System. When it comes to fire safety, having a reliable and responsive fire alarm control system is not just a preference—it’s a necessity. The AW-CFP2166-16 conventional fire alarm panel, developed by Asenware, is a robust and feature-rich solution designed to meet international standards while offering scalability, versatility, and superior performance.

This advanced system complies with EN54 part 2 and part 4 standards, ensuring it meets global regulatory requirements. Whether used in residential complexes, commercial buildings, or industrial environments, this system delivers reliable and efficient fire detection and alarm functionality.


Key Specifications of the AW-CFP2166-16 Fire Alarm Control Panel

The AW-CFP2166-16 panel stands out with its modular and customizable design. Below is a detailed breakdown of its specifications:

General Information

  • Model No.: AW-CFP2166-16
  • Application Areas: Indoor and Outdoor
  • Working Mode: Active
  • Working Principle: Responds to trigger devices
  • Transmission Mode: Cable
  • Alarm Volume (within 1m): ≥110dB
  • Receive Frequency: Cable-based
  • Power Supply: 110VAC/240VAC
  • Backup Battery: 24VDC with 8-hour consistent supply
  • Certification: CE, RoHS
  • Origin: Guangdong, China
  • HS Code: 853110000
  • Production Capacity: 10,000 PCS/Year

🧯 System Features and Functional Capabilities of Fire Security Items Fire Alarm Control System

The AW-CFP2166-16 model offers a powerful set of features that enhance both usability and security:

  1. EN54-2 & EN54-4 compliant fire protection system
  2. Modular design allows for flexible and scalable installations
  3. Two-level control through a secure lock system
  4. Sounder Outputs: Two circuits to support external audio alarms
  5. Zone Configuration: 1 to 32 zones, with up to 20 detectors per zone
  6. Individual zone disabling function
  7. Manual reset, silence, test, and evacuation buttons
  8. Low-battery protection triggers disconnection below 21VDC
  9. Optional GSM module for SMS-based fire alerts

🔌 Power Supply and Battery Backup

This system supports both 110VAC and 240VAC main supply options, ensuring compatibility across global infrastructures. Additionally, the internal power output of 27.2VDC and dual 12V 2AH backup batteries guarantee uninterrupted functionality even during power failures.

Output Current Capacities:

  • 500mA for lower zone configurations
  • 3A for panels with 4 to 32 zones

🔄 Input & Output Configurations

Detector Circuit Specification

  • Circuits: 1 to 32 available
  • Max detectors per zone: 20
  • Detector compatibility: Smoke detectors, heat detectors
  • Fault monitoring: Open circuit, short circuit, detector removal

Sounder Circuit Specification

  • General sounder outputs: 2 circuits
  • Max bells per circuit: 20 (at 20mA each)
  • EOL Resistor: 6.8kΩ, 5% tolerance, 0.25W

Relay Outputs

  • Fire Relay Output: NO/NC
  • Fault Relay Output: NO/NC
  • Max Current: 100mA

📦 Construction and Packaging

Each AW-CFP2166-16 unit is carefully packaged with EPE internal protection and sturdy outer cartons. Available panel sizes vary depending on the zone configuration:

Panel TypeDimensions (mm)Weight (with batteries)
1-Zone272×200×705.8kg
2-Zone320×231×906.8kg
4–8 Zone395×502×1249.6kg
12–32 Zone362×565×12412.5kg

🔧 Installation and Configuration of Fire Security Items Fire Alarm Control System

Installation is straightforward and adaptable. The system accepts a wide range of conductor sizes—from 0.75mm² to 2.5mm², making it compatible with standard cabling. Each zone is configurable and easy to manage via the front control panel, offering RESET, SILENCE, EVACUATE, and TEST functionalities.

Moreover, maintenance is simplified with clear LED status indicators, zone disabling options, and fault identification modes.


🛠 Applications and Use Cases

Due to its flexibility and reliability, the AW-CFP2166-16 fire alarm system is suitable for:

  • Residential buildings
  • Office complexes
  • Educational institutions
  • Warehouses
  • Industrial zones
  • Shopping malls
  • Public venues

Whether you need a small one-zone panel or a comprehensive 32-zone system, Asenware offers scalable solutions to match every need.


🔚 Conclusion

Fire Security Items Fire Alarm Control System The AW-CFP2166-16 fire alarm control panel by Asenware is a highly reliable, certified, and scalable fire protection solution. With compliance to EN54 standards, modular design, and powerful detection and alarm capabilities, this system supports a wide range of fire safety applications.
