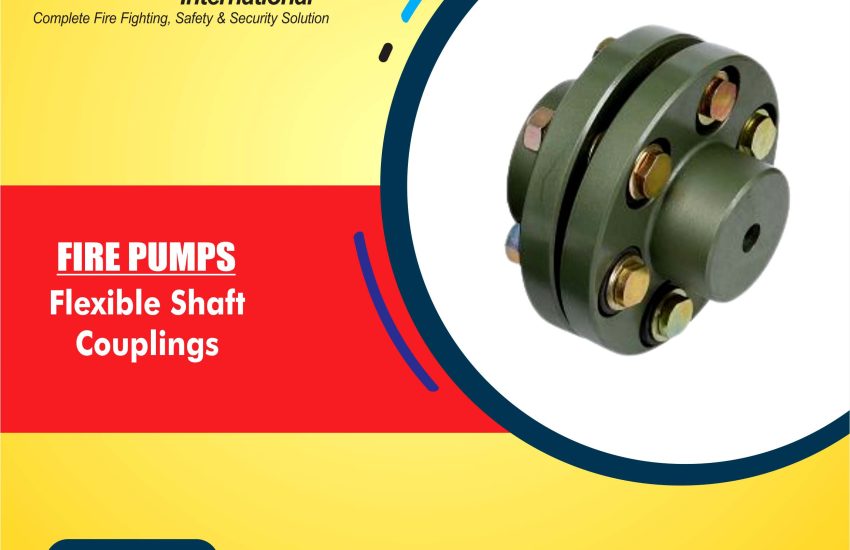

Flexible Shaft Couplings are essential components that connect rotating shafts to transmit mechanical power across various systems. The FCL Flexible Coupling is widely recognized for its compact design, ease of installation, and low maintenance needs. This article explores the key features, benefits, and applications of FCL Shaft Couplings.

Product Details

• Model Numbers: FCL90~630
• Material: Cast Iron
• Customization: Available
• Standard or Nonstandard: Standard
• Production Capacity: 1,000,000 PCS/Year
• Trademark: SC TRANSMISSION
• Transport Package: Plywood Case
• Origin: China
• HS Code: 8483900090

Key Features of FCL Flexible Shaft Couplings

1. Compact Design
   The FCL Flexible Coupling boasts a compact design, making it ideal for confined spaces. This feature ensures minimal impact on the overall system while still providing high performance.
2. Easy Installation
   Designed for easy installation, these couplings reduce setup time and costs. Thanks to the pin & bush design, installation is quick, minimizing downtime for both installation and maintenance.
3. Convenient Maintenance
   FCL Couplings are built for durability and require minimal maintenance. Their simple design ensures long-lasting performance, reducing the need for frequent repairs.
4. Durability and Reliability
   Made from cast iron, the FCL Flexible Shaft Coupling offers excellent durability. This robust material ensures that the coupling performs reliably even under varying conditions.
5. Enhanced Performance with Shaft Alignment
   These couplings work best when shaft alignment remains within the specified tolerance. Maintaining proper alignment ensures optimal function and longer operational life.

Benefits of FCL Flexible Shaft Couplings

1. Efficient Power Transmission
   FCL Couplings provide reliable and efficient power transmission, enabling smooth operation of connected machinery. This is especially important for systems that experience varying speeds and loads.
2. Vibration Dampening
   Due to their flexible design, FCL Flexible Shaft Couplings absorb vibrations between connected shafts. This helps to reduce the impact of shocks, ensuring smoother operation and protecting the machinery from damage.
3. Cost-Effective
   These couplings are cost-effective because they reduce the need for frequent maintenance. Their durability and ability to absorb vibrations lead to long-term savings on repairs and replacements.
4. Versatility
   The FCL Coupling is versatile, suitable for use in many industries, such as manufacturing, automotive, oil & gas, and more. Its ability to handle different shaft misalignment makes it an essential component in various systems.
5. Customization Options
   FCL Shaft Couplings can be customized to meet specific system requirements. Whether you need a non-standard size or a specific load-bearing capacity, you can modify the coupling to meet your exact needs.

Applications of FCL Flexible Shaft Couplings

FCL Flexible Shaft Couplings find application in a wide range of systems across various industries. These include:

1. Medium and Minor Power Transmission Systems
   These couplings are frequently used in medium and minor power transmission systems, such as those driven by motors. These systems are commonly found in manufacturing machines and equipment.
2. Speed Reducers
   FCL Couplings are perfect for speed reducers, where they connect motors to reducing gears. By ensuring efficient power transfer, they maintain smooth operation in speed-reduction applications.
3. Hoists and Compressors
   With their flexibility and reliability, FCL Flexible Shaft Couplings are ideal for hoists and compressors, which require stable and efficient power transmission under varying loads.
4. Conveyors
   FCL Couplings are commonly used in conveyor systems. They help connect motors to the drive shafts, minimizing vibrations and ensuring smooth material transport along the conveyor.
5. Spinning and Weaving Machines
   The FCL Flexible Coupling is widely used in spinning and weaving machines. These couplings ensure reliable power transmission, reducing the risk of mechanical failure in the textile industry.
6. Ball Mills
   These couplings are essential in ball mills, where they help ensure smooth and efficient rotation. They maintain optimal power transfer, improving the milling process.

How FCL Flexible Shaft Couplings Work

FCL Flexible Shaft Couplings connect two shafts to transmit rotational motion and power. Their flexible design allows them to accommodate slight misalignment between the shafts, preventing undue stress and reducing the risk of mechanical failure.

In a typical Pin and Bush Coupling design, the pins link the two shafts, while the bushes offer flexibility, enabling slight misalignment. This helps absorb vibrations and extends the system’s life.

Conclusion

The FCL Flexible Shaft Coupling by SC TRANSMISSION is a reliable solution for power transmission systems. Its compact design, easy installation, low maintenance requirements, and customization options make it ideal for many applications. Whether in speed reducers, hoists, or conveyors, the FCL Coupling ensures efficient operation, reduced vibration, and improved system longevity.
