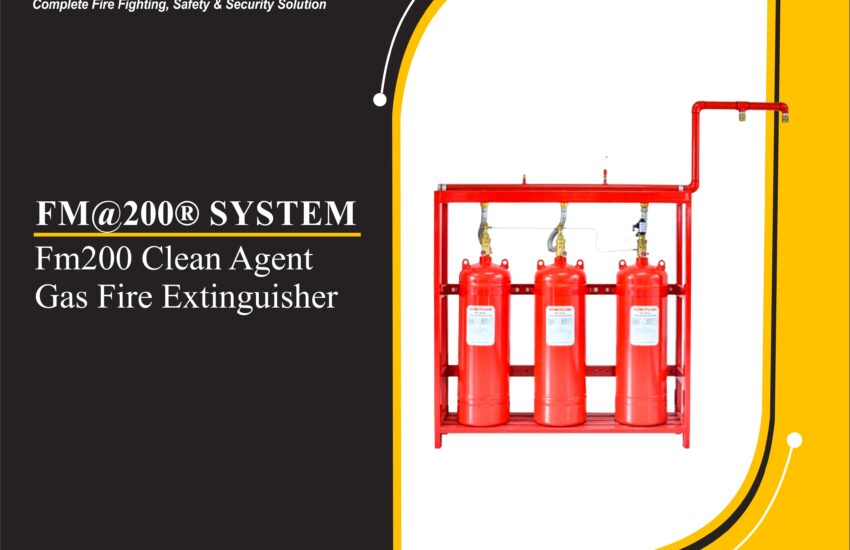

FM200 Clean Agent Gas Fire Extinguisher, is a clean agent gas fire extinguisher widely used in total flooding fire suppression systems. It is specifically designed to protect high-value assets and sensitive electronic environments where traditional fire suppression methods like water or foam could cause extensive damage.
The FM200 system works by rapidly displacing oxygen and interrupting the combustion process, extinguishing fires quickly without leaving residue.
Why Choose FM200 Clean Agent Fire Extinguisher?
✅ Clean Agent Suppression
FM200 is a non-conductive, non-corrosive, and residue-free fire extinguishing agent, making it ideal for:
- Data centers
- Server rooms
- Telecom facilities
- Museums
- Medical labs
- Archives and libraries
It leaves no cleanup after discharge and doesn’t harm electronic devices, unlike water or foam.
✅ Rapid Fire Suppression
The FM200 system activates and suppresses fire within 10 seconds, minimizing damage and operational downtime. It rapidly lowers the heat and oxygen levels to stop the fire at the ignition stage.
✅ Effective for Multiple Fire Classes
- Class A Fires: Ordinary combustibles (wood, paper, plastic)
- Class B Fires: Flammable liquids (fuel, oil, solvents)
- Class C Fires: Electrical equipment and wiring
This makes FM200 suitable for multi-risk fire protection in critical areas.
System Design Options
We offer two main designs:
- Cabinet Type FM200 System
- Pipe Network FM200 System
These are further divided into single-cylinder systems and multi-cylinder systems, available in various size configurations to suit different space requirements.
Technical Parameters of Pipe Network FM200 System
| Parameter | Specification |
|---|---|
| Filling Pressure | 4.2 MPa |
| Max. Protected Area | Up to 800 m² per zone |
| Max. Protected Volume | Up to 3600 m³ per zone |
| Discharge Time | ≤10 seconds |
| Filling Density | ≤950 kg/m³ |
| Operating Power | DC 24V / 1.6A |
| Nitrogen Drive Pressure | 6.0 ± 1.0 MPa @ 20℃ (Optional) |
| Storage Conditions | Temp: -10~50℃, RH ≤97% |
| Working Pressure | 4.2 MPa |
| Max. Working Pressure | 5.6 MPa |
| Cylinder Capacities Available | 16L, 32L, 40L, 70L, 90L, 120L, 150L, 180L, 200L, 220L, 250L, 345L |
System Components
- FM200 Storage Cylinder
Includes a valve, dip tube, pilot valve, and pressure indicator. - High Pressure Hose
Connects the cylinder valve to the liquid check valve for discharge. - Discharge Nozzles
Installed at the end of the pipe network to ensure optimal agent distribution. - Control System
Contains fire alarm panel, smoke detectors, heat detectors, manual release, and discharge indicator lights. Allows automatic or manual activation.
Applications of FM200 Fire Suppression System
- Server & data rooms
- Electrical control rooms
- Medical & pharmaceutical labs
- Military and defense facilities
- High-end commercial offices
- Industrial control centers
Conclusion
The FM200 Clean Agent Gas Fire Extinguisher is a cutting-edge solution for fire protection in sensitive and critical environments. With its fast-acting, residue-free, and electrically non-conductive properties, it ensures effective fire suppression without compromising your valuable assets.
