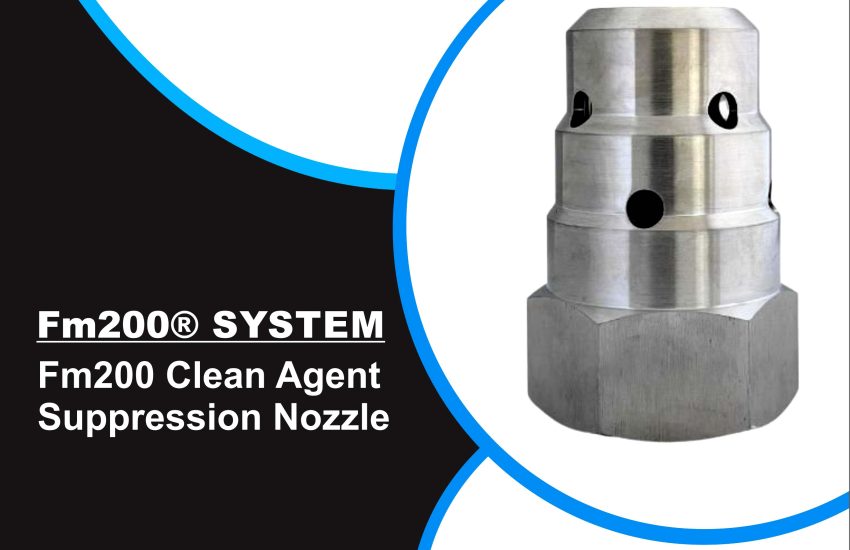

FM200 Clean Agent Suppression Nozzle is an essential component in high-performance clean agent fire suppression systems, ensuring even and controlled agent discharge during fire events. Designed for use with FM200 (HFC-227ea) and FK-5-1-12 (Novec 1230) fire suppression agents, these nozzles are precision-engineered to deliver uniform distribution, optimal coverage, and effective flame suppression in enclosed environments.
Available in 90°, 180°, and 360° spray patterns, the FM200 nozzles are ideal for a wide range of applications including data centers, telecommunication facilities, control rooms, and other critical spaces.
Key Features of FM200 Suppression Nozzle
- ✅ Discharge Patterns: Available in 90-degree, 180-degree, and 360-degree nozzle designs for directional or omnidirectional spray distribution.
- ✅ Agent Compatibility: Suitable for FM200 (HFC-227ea) and FK-5-1-12 (Novec 1230) fire extinguishing systems.
- ✅ Even Agent Distribution: Precision orifice placement ensures uniform flow and dispersion of the fire suppression agent.
- ✅ Customizable Orifice Sizes: Nozzle orifice size and location can be custom-designed based on system requirements.
- ✅ Multiple Connection Types: Compatible with threaded, quick fitting, or other custom connection types.
- ✅ High-Quality Materials: Manufactured using stainless steel 304, 303, 316, 316L, and brass for long life, corrosion resistance, and compliance with industry standards.
- ✅ Dimensional Accuracy: Each nozzle undergoes 100% dimensional inspection to ensure flow precision and accurate discharge direction.
Material Options
Choose from a wide variety of premium-grade materials to meet your specific environmental and durability needs:
- Stainless Steel 304 / 303 / 316 / 316L
- Brass
- Other custom materials available upon request
All materials are corrosion-resistant and suitable for use in high-demand industrial environments.
FM200 180° Nozzle Dimensions Chart
| Model | Pipe Size | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|
| F007 | 1/2″ (12.2 mm) | 31.75 mm | 31.75 mm | 42.84 mm | 50.8 mm |
| F008 | 3/4″ (19.05 mm) | 38.1 mm | 34.92 mm | 48.89 mm | 58.31 mm |
| F009 | 1″ (25.4 mm) | 44.45 mm | 39.67 mm | 56.33 mm | 67.84 mm |
| F010 | 1-1/4″ (31.75 mm) | 57.15 mm | 44.45 mm | 67.46 mm | 82.55 mm |
| F011 | 1-1/2″ (38.1 mm) | 63.50 mm | 48.89 mm | 74.93 mm | 92.07 mm |
| F012 | 2″ (50.8 mm) | 76.20 mm | 49.98 mm | 73.02 mm | 92.86 mm |
Applications
FM200 clean agent suppression nozzles are used in various mission-critical environments, including:
- Data Centers
- Server Rooms
- Telecommunications Hubs
- Control Panels and Switch Rooms
- Medical Equipment Rooms
- Archives and Museums
- Industrial Machinery Areas
Why Choose Our FM200 Nozzles?
- ✔ Precision Engineering – Ensures controlled flow rates and precise discharge angles
- ✔ Durable Construction – High-quality materials extend service life and reduce maintenance
- ✔ Full Compatibility – Supports a wide range of fire suppression systems and agents
- ✔ Global Standards – Manufactured to meet CE and international fire safety standards
- ✔ Custom Options – Fully customizable based on project requirements and system specifications
Conclusion
The FM200 clean agent suppression nozzle is a critical component for ensuring the effectiveness of your fire suppression system. With multiple discharge angles, high-quality material construction, and precise flow control, our nozzles guarantee optimal performance for protecting life, property, and equipment. Whether you’re installing a new suppression system or upgrading an existing one, choose reliable and certified FM200 nozzles for consistent fire protection.
