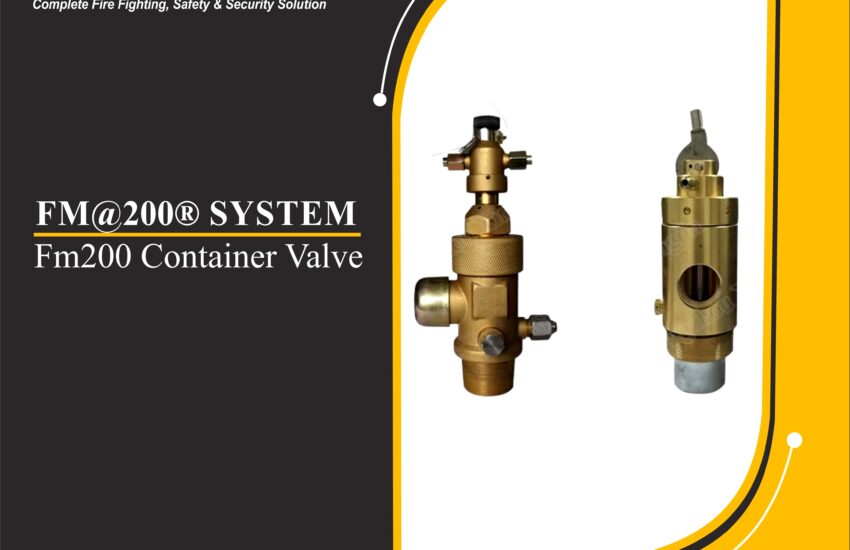

FM200 Container Valve plays a vital role in fire suppression systems. It ensures safe, fast, and efficient discharge of the extinguishing agent when a fire occurs. Made from high-grade brass and activated by a DC24V electrical signal, this valve delivers dependable performance in both pipe network and cabinet-style FM200 fire protection systems.

Product Details

• Product Type: FM200 Container Valve
• Starting Mode: Electrical
• Material: Brass
• Working Voltage: DC24V
• Starting Current: ≤1.6A
• Hydraulic Pressure: ≤9.9 MPa
• Application: Fire Suppression Systems
• Highlight: Cylinder valves, fire suppression parts

Product Description

In any fire suppression setup, the FM200 container valve serves as the critical gateway between the storage cylinder and the discharge components. It activates automatically through an electrical signal, allowing the FM200 agent to flow into the system and suppress the fire instantly.

In pipe network systems, the valve connects the FM200 storage cylinder to a high-pressure discharge hose. Notably, this configuration includes a manual control option, which allows emergency activation even if electrical systems fail.

Conversely, cabinet-type systems use a different configuration. The valve sits between the storage cylinder and a solenoid valve. Unlike the pipe network setup, this system relies solely on electrical activation, which eliminates the manual override. However, this design saves space and simplifies the operation, making it ideal for compact installations.

Key Features

• Durable Brass Construction: Brass resists corrosion and maintains performance under pressure.
• Quick Electrical Activation (DC24V): Ensures the agent releases instantly when needed.
• Low Power Consumption (≤1.6A): Works efficiently with most fire suppression control panels.
• High Hydraulic Pressure Tolerance (≤9.9 MPa): Handles the pressure required to discharge FM200 effectively.
• Manual Control Option (for Pipe Systems): Adds safety redundancy during power loss.
• Compact Size: Fits easily in both large industrial setups and smaller cabinet units.

Applications

The FM200 container valve is suitable for a wide range of environments. For instance:

• Data centers and server rooms
• Electrical control cabinets
• Telecommunication hubs
• Museums and archives
• Industrial machine enclosures
• Commercial and corporate offices
• High-value storage areas

In each of these settings, the valve ensures fast and efficient fire suppression while protecting sensitive equipment.

Conclusion

In summary, the FM200 container valve offers reliable, fast, and safe activation in the event of a fire. Thanks to its brass body, electrical control, and manual override option (for certain systems), it provides both performance and peace of mind. Whether you’re protecting a data center or a sensitive storage area, this valve ensures your system performs when it matters most.
