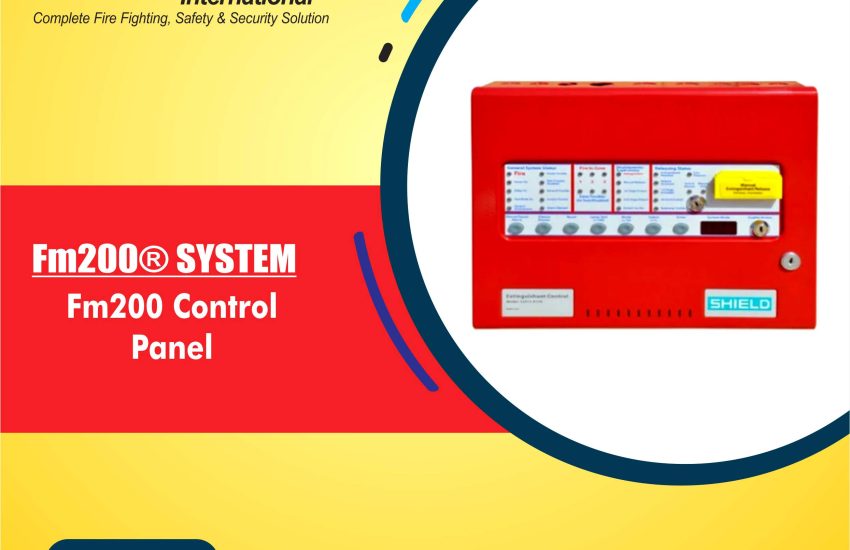

FM200 Control Panel

FM200 Control Panel
by:admin February 11, 2025 0 Comments

FM200 Control Panel is a vital component of the FM200 fire suppression system, responsible for fire detection, monitoring, and suppressant release. This guide will provide you with an in-depth look at the FM200 panel, including its functions, features, installation process, and maintenance requirements. Understanding the role of the control panel is essential for ensuring your fire suppression system works effectively and reliably.

What is the FM200 Control Panel?

FM200 Panel serves as the central unit of an FM200 fire suppression system. It receives signals from fire detectors, processes the inputs, and activates the release of the FM200 suppressant agent to put out fires quickly. As the system’s brain, the control panel is crucial for ensuring that all components work in harmony to detect fires and suppress them efficiently.

Typically, the FM200 panel is connected to FM200 electrical actuators, pressure flow switches, fire detectors, and other system components. All these elements work together to ensure the system reacts swiftly during an emergency.

Key Functions of the FM200 Control Panel

The FM200 panel performs several essential functions, all of which are designed to guarantee optimal system performance. Below are the main tasks the control panel performs:

1. Fire Detection Monitoring

The FM200 control panel constantly monitors fire detectors, such as smoke and heat sensors, throughout the protected area. When the panel detects a fire, it activates the suppression system. This early detection minimizes damage and prevents fire escalation.

2. Activation of FM200 Release

Once the system detects a fire, the FM200 control panel sends a signal to the FM200 electrical actuator to release the suppressant. The actuator opens the valve and disperses the agent into the protected area, suppressing the fire.

3. System Status Monitoring

The FM200 control panel monitors the status of each component, ensuring the system is functioning properly. If there are any faults, such as a malfunctioning fire detector or low pressure, the panel alerts the operator, allowing for timely maintenance.

4. Communication with Remote Systems

In large facilities or high-risk areas, the FM200 control panel can communicate with remote monitoring systems. This allows operators to manage and oversee the fire suppression system from a safe location, ensuring quick responses in case of an emergency.

5. Testing and Diagnostics

The FM200 control panel runs regular diagnostics to check for faults or malfunctions in the system. It can also initiate test cycles to verify that the system components, including fire detectors and actuators, are working correctly.

Features of the FM200 Control Panel

Understanding the features of the FM200 control panel will help you optimize your fire suppression system. Some important features include:

1. User-Friendly Interface

Most FM200 control panels feature an easy-to-read display and intuitive controls. This allows operators to quickly assess the system’s status, initiate tests, and review event logs. The interface typically includes visual indicators such as LED lights to show whether the system is normal, in fault, or active.

2. Integrated Fire Detection

The FM200 control panel integrates with various fire detection devices. It supports smoke, heat, and flame detectors, enabling the panel to receive real-time data and respond rapidly to potential fires.

3. Manual and Automatic Activation

The control panel allows both automatic and manual activation of the FM200 suppressant agent. In automatic mode, the system reacts to fire detection signals. In manual mode, operators can trigger the suppressant release when necessary.

4. Pre-Discharge Delay

To ensure the safety of personnel, the FM200 control panel includes a pre-discharge delay feature. This delay provides time for evacuation before the suppressant is released. As a result, personnel can safely exit the area before the system activates.

5. Fault and Maintenance Alerts

The control panel continuously checks the system for any faults, such as low pressure, malfunctioning sensors, or improper valve operation. If a fault is detected, the panel alerts the operator, allowing for timely repairs and minimizing the risk of system failure during a fire.

6. Compliance with Standards

The FM200 control panel complies with various fire safety standards, such as those set by UL, NFPA, and other local or international regulations. Compliance ensures that the system functions safely and meets industry requirements.

Installation of the FM200 Control Panel

Correct installation of the FM200 control panel is essential for ensuring the system works properly. The following steps outline the general installation process:

1. System Design

Before installation, a fire safety engineer will assess the building layout and design a system that meets safety requirements. The panel’s location will be chosen based on accessibility, visibility, and communication with other components.

2. Mounting the Control Panel

The FM200 control panel should be securely mounted in a location that is easily accessible for operation and maintenance. It should be placed in an area free from hazards such as extreme temperatures or excessive moisture.

3. Wiring and Connections

Once mounted, the control panel must be connected to the FM200 electrical actuator, fire detectors, pressure flow switches, and any remote monitoring systems. Proper wiring ensures all components work together to detect fires and activate the suppression system.

4. System Integration

After wiring, the FM200 control panel will be integrated with the entire fire suppression system. The panel must be connected to each component to ensure that the system responds to fire detection signals and activates the suppression system as needed.

5. System Testing

Once installation is complete, the system should undergo thorough testing to ensure that each component functions correctly. This includes testing the response time, activation of the actuator, and the correct release of the suppressant agent.

Maintenance of the FM200 Control Panel

To ensure the FM200 panel operates reliably, regular maintenance is essential. Follow these steps for proper maintenance:

1. Regular Inspections

Perform routine inspections of the FM200 panel to ensure there are no visible signs of damage or wear. Check the status indicators to ensure the system is operating correctly.

2. Firmware and Software Updates

If the FM200 panel features a digital interface, it may require periodic software or firmware updates. Keeping the system up to date ensures compatibility with the latest technologies and standards.

3. Battery and Power Supply Check

Regularly check the FM200 control panel’s battery and power supply. A stable power source is essential for the panel’s operation, especially during an emergency. Replace batteries as needed to ensure uninterrupted service.

4. Test Fire Detection and Actuation Systems

Periodic testing is critical to verify the system’s response to fire threats. Test the fire detectors, actuators, and pressure flow switches to ensure they work as intended when needed.

5. Calibration of Sensors

Ensure the sensors connected to the control panel are calibrated regularly. Calibration ensures accurate fire detection and guarantees that the system responds promptly in an emergency.

Benefits of the FM200 Control Panel

The FM200 panel provides several key benefits that enhance the overall performance of your fire suppression system:

1. Centralized Control

The FM200 panel centralizes control of your fire suppression system, allowing operators to monitor and manage the system from one location. This simplifies operation and maintenance.

2. Rapid Response to Fires

By promptly activating the FM200 suppressant agent, the control panel ensures quick fire suppression. This fast response minimizes damage and reduces the spread of flames.

3. User-Friendly Interface

With an intuitive, easy-to-use interface, the FM200 panel allows operators to quickly check system status, perform tests, and troubleshoot problems.

4. Remote Monitoring Capabilities

Modern control panels offer remote monitoring, so operators can manage the system from a safe location. This feature is particularly useful in large buildings or hazardous environments.

5. System Health Monitoring

The control panel constantly monitors the system’s health and status. If any components malfunction or require maintenance, the panel alerts operators, ensuring the system is always ready to respond during an emergency.

Conclusion

The FM200 panel is a critical element of your FM200 fire suppression system. It ensures fast and reliable fire suppression by monitoring fire detectors, activating suppressant release, and maintaining system health. By understanding the features, installation process, and maintenance requirements of the FM200 panel, you can ensure that your fire suppression system will operate effectively and provide optimal protection when it’s needed most.

Specification:

  • UL864 and FM listed.
  • Three initiation circuits as standard.
  • Any single zone or any combinations of zones can be configured to release.
  • Configurable first stage NAC delays.
  • Configurable detection delays.
  • Zero time delay upon manual release option.
  • Compatible with I.S. barriers.
  • Non-latching zone input option to receive signals from other systems such as aspirating equipment.
  • Configurable extinguishant delays up-to 60 sec in 5 sec steps.
  • Configurable extinguishant duration up-to 5 min in 5 sec steps.
  • Countdown timer shows time remaining until release.
  • Supports up to seven, four wire status indicators.
  • Built in Extract Fan control.
