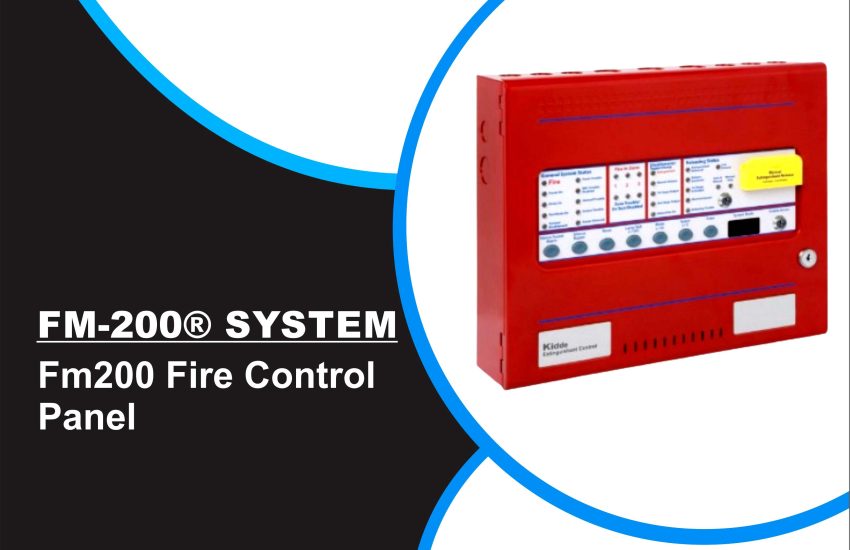

FM200 Fire Control Panel by Kidde, model 1-23911-K116 FireBeta A-XT, provides dependable and intelligent fire suppression control for small to medium-sized installations. Designed and manufactured in a quality-controlled environment, this UL864 and FM listed control panel ensures maximum safety and system flexibility in a wide range of clean agent fire suppression applications.
With Kidde’s trusted reliability and cutting-edge features, the FireBeta A-XT panel has become the preferred solution for FM200 fire suppression systems installed in data centers, server rooms, telecom facilities, control rooms, and more.
Intelligent Design for Configurable Extinguishing Release
The FireBeta A-XT panel includes three initiation circuits, allowing the system to configure release based on any combination of detection zone inputs. For instance, you can easily set the system to release the extinguishing agent when any two zones activate, offering tailored protection for complex environments such as floor voids, ceiling cavities, and main room areas.
Furthermore, this level of customization makes the FireBeta A-XT particularly useful for installations where precision and layered fire detection strategies are essential.
Key Features of the Kidde FireBeta A-XT Control Panel
Kidde designed the FireBeta A-XT FM200 panel to be not only robust but also adaptable. Below are the standout features that set it apart:
- UL864 and FM Approved, ensuring full compliance with global safety standards
- Three configurable initiation circuits for flexible detection and activation logic
- Programmable to release on any single or multiple detection zones
- Adjustable first stage NAC (Notification Appliance Circuit) delays
- Configurable detection delays and agent release delays (in 5-second steps, up to 60 seconds)
- Manual release with zero time delay option
- Compatible with Intrinsically Safe (I.S.) barriers
- Non-latching zone input capability to integrate third-party equipment (e.g., aspirating systems)
- Release duration configurable up to 5 minutes, also in 5-second increments
- Countdown timer showing time remaining until gas discharge
- Supports up to seven four-wire remote status indicators
- Integrated extract fan control, enhancing post-discharge safety measures
- Supplied in a durable red enclosure with a large LED display for intuitive user interaction
Where the FireBeta A-XT Panel Excels
The FM200 Kidde control panel fits perfectly in mission-critical applications where fire protection needs to be fast, intelligent, and clean. Common use cases include:
- Server rooms and data centers
- Control rooms and substations
- Clean rooms and laboratories
- Telecommunication infrastructure
- Archives and critical document storage
Because it allows such granular control of release logic and timing, system designers can optimize fire suppression performance while minimizing the risk of false discharges.
User-Friendly Operation and Installation
Installers and maintenance teams appreciate how simple it is to configure the FireBeta A-XT panel. The LED display not only shows real-time status but also provides visual countdown feedback before discharge, improving operator awareness during alarms or test scenarios.
Moreover, Kidde’s design supports a modular installation process, and its compatibility with both standard and specialized detection equipment makes integration into new or existing fire protection systems smooth and hassle-free.
Why Choose the Kidde FM200 Fire Control Panel?
You should choose the Kidde FireBeta A-XT if you need a panel that balances performance, safety, and adaptability. Whether you’re safeguarding sensitive electronic assets or irreplaceable data, this panel gives you complete control over your FM200 clean agent suppression system.
