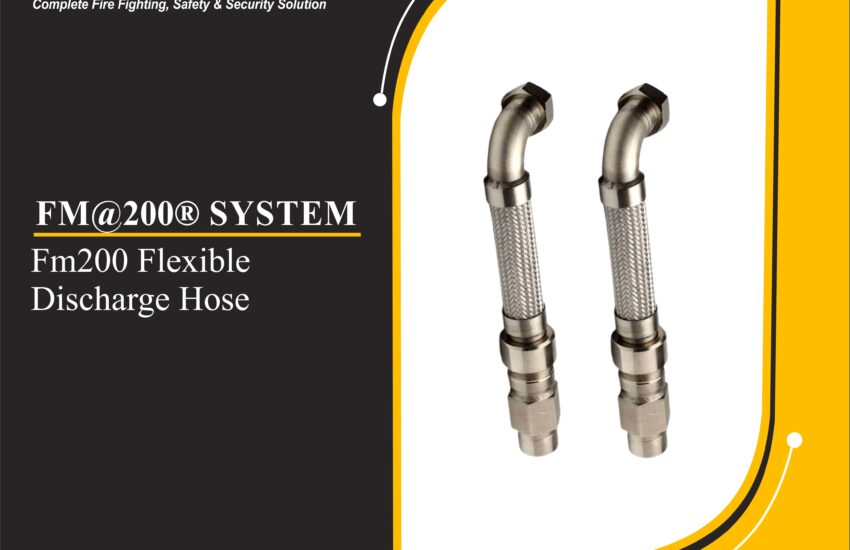

FM200 Flexible Discharge Hose

FM200 Flexible Discharge Hose
by:admin October 22, 2025 0 Comments

FM200 Flexible Discharge Hose offers a safe and efficient solution for connecting a 140L FM-200 cylinder to the main discharge pipe or manifold. Designed for durability and compliance with TCVN 7161-1, this hose ensures proper operation in fire suppression systems with multiple cylinders.

This product, coded SFS-FC50, comes from Vietnam and reflects a high standard of local fire safety equipment manufacturing.


Main Features

  • Durable Stainless Steel Mesh Cover protects the hose from corrosion and mechanical damage.
  • Built-in Check Valve stops gas backflow when a cylinder is removed for service.
  • Easy-to-Install Design supports both straight and 90° curved installations.
  • Weld Fittings Included for secure integration with existing piping systems.

What Makes This Product Essential

When using more than one FM-200 cylinder connected to a common manifold, the use of check valves becomes mandatory. According to Clause 6.2.4.4 of TCVN 7161-1, each cylinder must include a check valve to prevent the unintentional loss of agent during servicing.

This flexible hose with a check valve ensures that your fire suppression system remains sealed and operational—even when technicians disconnect one cylinder for maintenance. Therefore, you avoid gas loss and maintain compliance with fire safety regulations.


Technical Specifications

SpecificationValue
Design Pressure42 bar
Test Pressure58 bar
Leak TestNo leakage after 5 minutes at 58 bar
Hose MaterialStainless steel
Braiding MaterialStainless steel
Cylinder Connection2” female thread
Pipe/Manifold Connection2” female thread (with weld fitting)

Applications

You can use this FM-200 discharge hose in a wide range of fire suppression systems. It performs reliably in environments where:

  • Multiple gas cylinders connect to a shared pipe
  • Regular cylinder maintenance is required
  • Space constraints demand flexible and compact solutions

In addition, its stainless steel construction makes it suitable for industrial and commercial installations where high durability is essential.


Installation Instructions

You can install this hose in either a straight line or a 90° bend, depending on your system layout. The threaded female connections make the process straightforward, while the welded adapter fittings ensure a leak-free connection.

For optimal results, always follow the guidelines provided in the product catalog.


Benefits of Using the DN50 Flexible Hose with Check Valve

  • Prevents gas loss during maintenance
  • Improves system safety and compliance
  • Reduces installation time with easy connections
  • Lasts longer thanks to corrosion-resistant materials
  • Complies with standards, ensuring worry-free inspections

Conclusion

The Flexible Discharge Hose DN50 with Check Valve (SFS-FC50) is more than just a connecting component—it’s a safeguard for your fire suppression system. By choosing this hose, you ensure that your FM-200 cylinders operate effectively, safely, and in full compliance with fire safety regulations.
