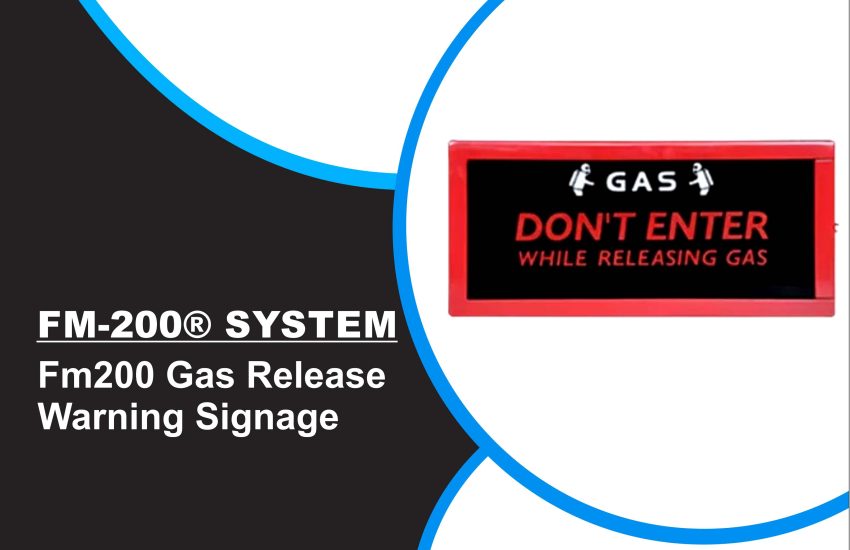

FM200 Gas Release Warning Signage is a critical component in any FM200 fire suppression system, designed to alert personnel during gas discharge events. By integrating ultra-bright red LED lighting and a high-decibel audio alarm, this signage ensures instant and unmistakable visibility during emergencies.
Unlike traditional warning systems, this unit uses MCU-controlled flashing and audible alert technology, which enhances stability and responsiveness. It is specifically built for areas protected by hepta fluoropropane (FM200) gas fire extinguishing systems and acts as both a visual deterrent and an emergency evacuation prompt.
Key Features and Advantages of FM200 Gas Release Warning Signage
This FM200 fire alarm warning sign offers several technical and safety advantages:
- High Brightness LED: Ensures visibility even in smoke-filled or low-light environments.
- Long Lifespan: LED light source offers extended durability with low power consumption.
- Audible and Visual Alerts: Combines flashing lights with high-decibel sound alarms for maximum effectiveness.
- Durable Material: Made from A3 steel with electroplating anti-corrosion treatment for longevity.
- Easy Installation: Features a top-bottom cover design for fast mounting, commissioning, and maintenance.
- Wall-Mountable Design: Space-efficient and suitable for a wide range of building types.
Furthermore, the system links directly with fire suppression controllers, detectors, and electromagnetic release devices for seamless emergency response coordination.
Technical Specifications of FM200 Gas Release Warning Signage
| Parameter | Value |
|---|---|
| Operating Voltage | AC220V ±20%, 50Hz |
| Power Input | ≤120W |
| Backup Battery | DC24V, 7.0AH (two DC12V batteries) |
| Output Current | Continuous: 6A, Short Term (≤3s): 8A |
| Circuit Length | ≤1000 meters (two-wire bus) |
| Detector Circuit Capacity | 2 Circuits, ≤20 Detectors Each |
| Circuit Alarm Threshold | ≤9.1V |
| Relay Contact Capacity | 7A/24VDC |
| Drive Output Current | Electromagnetic Drive: ≤3A, Other Drives: ≤1A |
| Material | A3 Steel with Plated Finish |
| Dimensions | 330mm × 450mm × 94mm |
| Mounting Type | Wall-mounted |
| Operating Temperature | -10℃ to +55℃ |
| Relative Humidity | ≤95% (non-condensing at 40℃ ±2℃) |
Integration with FM200 Fire Suppression System
This gas release signage is fully compatible with pipe network FM200 systems, working alongside gas cylinders, electromagnetic valves, and fire alarm panels. When a fire is detected:
- Smoke or heat detectors send a fire signal.
- The controller activates sound and light alarms via the signage.
- After dual confirmation and a 30-second delay, the extinguishing agent is discharged.
- The signage alerts personnel to evacuate and avoid exposure to gas.
This coordinated function improves response time and reduces risk to human life.
Application Areas
The FM200 Gas Release Warning Signage is widely used in:
- Data Centers and Server Rooms
- Telecommunication Rooms
- Power Distribution Rooms
- Oil Depots and Generator Rooms
- Warehouses and Archives
- Libraries, Museums, and Precision Instrument Rooms
Its thread matching, sealing capability, and anti-corrosion properties ensure reliable performance across multiple sectors. Additionally, its performance parameters comply with national and international fire safety standards, ensuring it’s suitable for commercial, industrial, and institutional environments.
