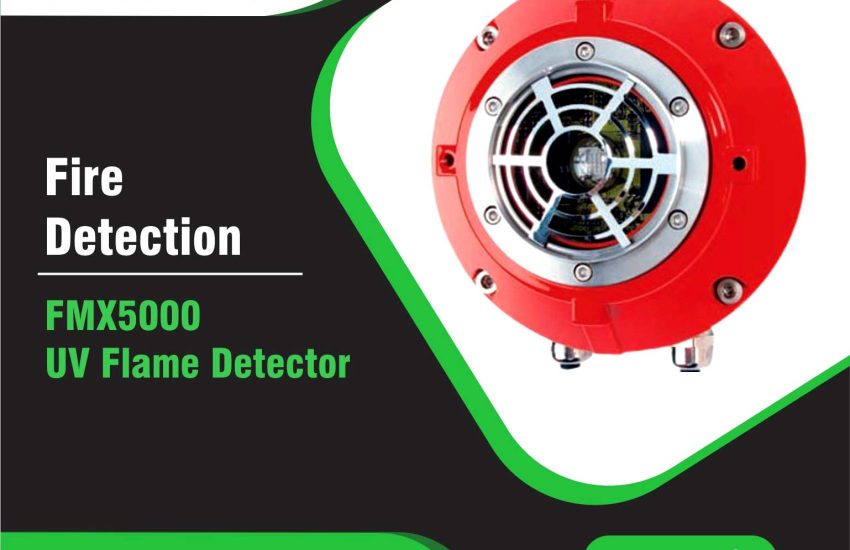

The FMX5000 UV flame detector is a state-of-the-art device designed to rapidly detect ultraviolet (UV) radiation emitted by flames. As an integral part of modern fire safety systems, the FMX5000 UV flame detector plays a crucial role in protecting both industrial and commercial spaces. This detector, known for its exceptional sensitivity and reliability, is widely used in environments that require quick and precise flame detection. In this article, we will explore its features, specifications, and benefits while incorporating detailed SEO keywords.
What is the FMX5000 UV Flame Detector?
The FMX5000 UV flame detector is a high-performance flame detection device that uses ultraviolet radiation to detect flames. By sensing UV radiation emitted during combustion, the detector identifies flames at their earliest stages. This device is specifically designed for use in hazardous and industrial environments, including oil refineries, chemical plants, and power stations, where quick flame detection is critical for safety.
This detector excels in environments with high ambient light and harsh conditions, ensuring that FMX5000 UV flame detector can identify flames in a wide variety of settings. By detecting flames early, it helps prevent catastrophic incidents and provides a reliable safeguard in fire-prone environments.
Key Features of FMX5000 UV Flame Detector
1. High Sensitivity to UV Radiation
The FMX5000 UV flame detector is engineered with exceptional sensitivity to ultraviolet radiation. It effectively detects flames from a distance, even in challenging environments. As a result, it is highly effective in preventing fire-related accidents in industrial settings.
2. Wide Detection Range
The FMX5000 UV flame detector offers an impressive detection range. It can detect flames from varying distances, making it suitable for both small and large spaces. This feature enhances the detector’s versatility, ensuring reliable performance in diverse industrial applications.
3. Fast Detection Time
One of the key advantages of the FMX5000 UV flame detector is its rapid detection time. The device can quickly identify the presence of a flame, allowing for a swift response. This fast detection reduces the risk of fire spreading, thus minimizing potential damage.
4. Robust Design for Harsh Environments
The FMX5000 UV flame detector is built to withstand extreme conditions. With a rugged, industrial-grade casing, it is resistant to high temperatures, vibrations, and other harsh environmental factors. This makes it ideal for use in tough industrial settings where reliability is essential.
5. Low Power Consumption
The FMX5000 UV flame detector operates efficiently with low power consumption. This energy-efficient design helps reduce operational costs while ensuring continuous and effective flame detection over time.
6. Adjustable Sensitivity Settings
The device features adjustable sensitivity settings, enabling users to fine-tune the detection range according to specific environmental conditions. This flexibility ensures optimal performance, regardless of the surroundings or size of the space.
7. Advanced Alarm and Output Features
The FMX5000 UV flame detector comes equipped with advanced alarm and output features. It provides clear and immediate alerts when a flame is detected, enabling quick action. The alarms are easily integrated into a larger fire detection system for comprehensive monitoring.
8. Easy Installation and Integration
This detector is straightforward to install and integrates seamlessly into existing fire detection systems. Its compatibility with other safety devices allows for enhanced overall protection without requiring significant system modifications.
Detailed Specifications of the UV Flame Detector
Understanding the specifications of the FMX5000 UV flame detector is crucial when selecting a flame detection solution. Below are its key specifications:
- Detection Type: Ultraviolet (UV) radiation
- Power Supply: 24V DC (nominal)
- Alarm Output: Relay output for alarm indication
- Sensitivity Range: Adjustable (wide range)
- Response Time: Less than 1 second
- Detection Distance: Varies depending on flame size (typically up to 50 meters)
- Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
- Humidity Range: 0% to 95% non-condensing
- Mounting: Suitable for wall and ceiling mounting
- Dimensions: 135mm (diameter) x 110mm (height)
- Weight: 0.5 kg
- Certification: UL, CE, and other relevant certifications for safety compliance
- Warranty: Typically 3-5 years
- Environmental Protection: IP65 rated (dust-tight and water-resistant)
Benefits of the UV Flame Detector
1. Rapid Flame Detection
The UV flame detector ensures quick flame detection, which is critical in minimizing fire damage. By detecting flames early, it allows sufficient time for response and evacuation, preventing the spread of fire.
2. Increased Safety in Industrial Settings
The FMX5000 UV flame detector enhances safety in environments where fire hazards are prevalent, such as oil refineries, chemical plants, and power stations. Its reliability helps reduce the risk of fire-related accidents, safeguarding both personnel and property.
3. Low False Alarm Rate
With its high specificity, the UV flame detector minimizes false alarms. This is particularly important in industrial settings, where environmental factors may otherwise trigger unwanted alerts. The UV detection technology helps differentiate actual flames from non-hazardous events, ensuring accurate readings.
4. Energy Efficiency
Due to its low power consumption, the UV flame detector offers long-term energy efficiency. This design not only reduces operational costs but also ensures continued effective flame detection.
5. Wide Application Range
The flame detector is versatile, suitable for various industries, including oil and gas, chemical manufacturing, and power generation. Its adaptability makes it ideal for environments that require precise flame detection technology.
6. Durability in Harsh Environments
The UV flame detector is built to endure the challenges of harsh industrial environments. It can withstand extreme temperatures, humidity, and vibrations, making it a durable option for continuous use in demanding conditions.
7. Easy Integration
This detector integrates easily into existing fire alarm systems, whether retrofitting an older system or adding to a new one. Its compatibility with other safety devices enhances overall protection without the need for major system modifications.
How to Install the UV Flame Detector
Installing the FMX5000 UV flame detector is a straightforward process. Follow these steps to ensure proper installation:
- Choose an Appropriate Location: Install the detector in an area that can monitor potential fire hazards, ensuring it is unobstructed. Avoid placing it near direct light sources that may affect its sensitivity.
- Mount the Detector: Use the provided mounting hardware to secure the UV flame detector on a wall or ceiling. Ensure that it is placed at an optimal height for flame detection.
- Connect the Power Supply: Connect the device to a 24V DC power supply. Ensure proper wiring for reliable operation.
- Test the Detector: After installation, test the detector’s functionality by simulating flame conditions. This ensures that the detector is responsive and functioning as expected.
- Perform Regular Maintenance: Clean the detector periodically to remove dust or debris that may obstruct the UV sensor. Ensure the system is properly calibrated for consistent performance.
Conclusion
The UV flame detector is an essential safety tool for industrial and hazardous environments. It provides rapid flame detection, high sensitivity, and low power consumption, ensuring reliable performance and enhanced safety. Its robust design and easy integration make it a top choice for industries requiring fast and accurate flame detection.
Incorporating the UV flame detector into your fire safety system guarantees superior fire protection. With its advanced technology, energy efficiency, and consistent performance, it plays a crucial role in preventing catastrophic fires and safeguarding your facility, assets, and personnel.
