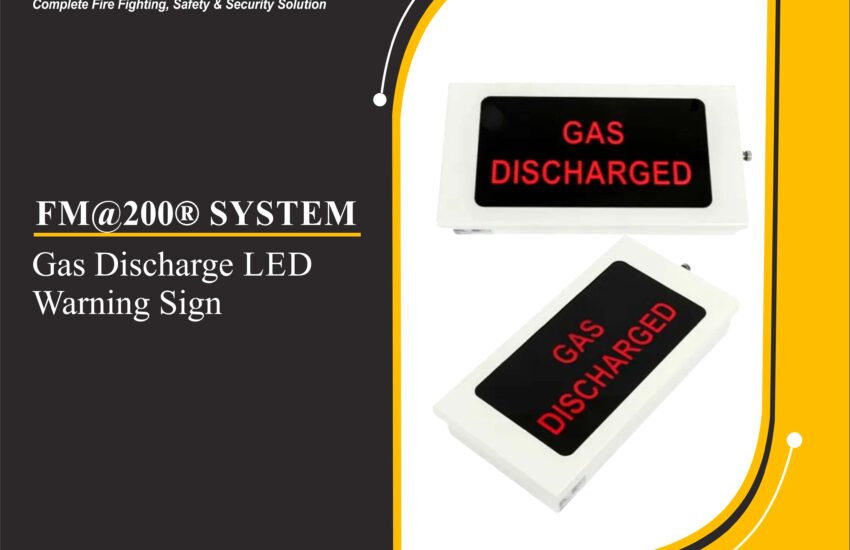

Gas Discharge LED Warning Sign is a vital component in any clean agent or gas-based fire suppression system. It alerts occupants to evacuate immediately by signaling an impending or ongoing gas discharge event. Designed with solid-state, high-intensity LEDs and built into a durable steel housing, this LED sign combines efficiency, visibility, and reliability in critical safety environments.
Product Specifications
- Product Name: LED Warning Sign
- Length: 300mm
- Material: Steel
- Color: White
- Operating Voltage: ≤65mA @24VDC
- Operating Temperature: -10 to 55°C (14~131°F)
- Operating Humidity: 5% to 95% RH (non-condensing)
- Origin: China
- Working Modes: FLASHING and CONTINUOUS
- LED Type: High-efficiency, high-intensity solid-state LEDs
- Custom Wording: Available upon request
Product Description
The Gas Discharge LED Warning Sign (Model: AW-GD207) is designed to provide a clear, immediate visual warning during gas suppression events. When a clean agent like FM-200, Novec 1230, or CO₂ is about to discharge, this warning sign activates automatically to notify anyone in the room to evacuate.
Unlike traditional warning systems, this LED sign utilizes ultra-bright, low-power LEDs to deliver excellent visibility, even in smoky or low-light environments. Furthermore, the robust metal shell ensures long-term durability, even in demanding industrial or commercial applications.
You can configure the unit to operate in either flashing or continuous mode depending on the system’s design or safety requirements. Additionally, the warning fascia can be customized with various wording options to suit different fire suppression scenarios.
Key Features
- High-Intensity LED Illumination: Offers superior brightness with minimal power consumption.
- Durable Steel Construction: Ensures strength and reliability in harsh conditions.
- Two Operation Modes: Choose between flashing or steady light based on safety protocols.
- Wide Operating Voltage Range: Compatible with most 24VDC fire alarm and suppression systems.
- Custom Wording Available: Tailor the message to meet specific safety or regulatory requirements.
- Easy Installation: Compact 300mm length fits standard fire suppression room layouts.
- Environmental Tolerance: Operates reliably in high humidity and varied temperatures.
Applications
The Gas Discharge LED Warning Sign is essential in any area protected by a gaseous fire suppression system. Ideal locations include:
- Data centers
- Server rooms
- Electrical switchgear rooms
- Laboratories
- Control rooms
- Clean rooms
- Chemical storage areas
- Telecommunication centers
In each of these applications, the sign improves evacuation response time, helping prevent injuries or exposure to clean agents.
Conclusion
To ensure full compliance and effective warning in a clean agent suppression system, the Gas Discharge LED Warning Sign delivers unmatched visibility, low power consumption, and rugged design. With two operating modes, customizable messages, and compatibility with standard 24VDC systems, this sign is an essential safety feature for any gas-protected enclosure.
