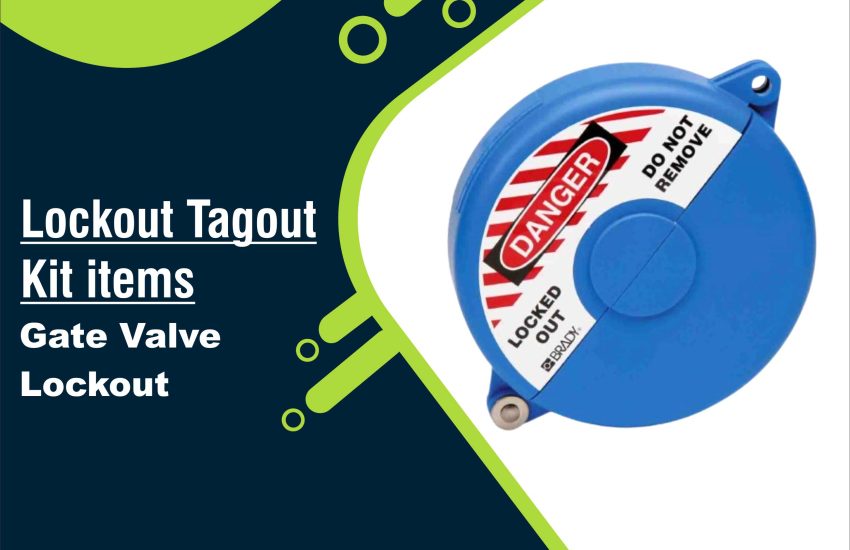

Gate Valve Lockout The Brady® Gate Valve Lockout is crucial for ensuring safety in mechanical environments. It prevents accidental valve operation during maintenance, repair, and service. This article outlines the specifications, key features, and compliance details of the Brady® Gate Valve Lockout.

Key Characteristics of the Gate Valve Lockout

• Catalog Page Number: 72
• Product Number: 065587
• UPC: 754473655877
• Unit of Measure (UOM): Each
• Brand Name: Brady®
• Country of Origin: United States of America
• HTS Code (Harmonized Tariff Schedule): 39269099

These details help identify the product and support proper documentation in lockout/tagout programs.

Dimensions and Size Details

• Height: 181.00 mm
• Width: 224.10 mm
• Depth: 60.40 mm
• Diameter: 171.45 mm
• Valve Wheel Diameter Range: 127.00 – 165.10 mm
• Rising Stem Knockout Hole Diameter: 63.50 mm
• Hole Inside Diameter: 63.50 mm

This lockout device fits most valve sizes. It offers flexibility and security in a variety of industrial settings.

Material Characteristics and Durability

• Material Number: LOTO-7 (View Technical Data Sheet)
• Material: Polypropylene
• Color: Blue
• Service Temperature Range (°C): -40 °C to 150 °C
• Minimum Service Temperature (°C): -40 °C
• Maximum Service Temperature (°C): 150 °C

Made from durable polypropylene, this lockout device withstands extreme temperatures. Its tough design ensures long-lasting protection.

Product Features for Enhanced Safety

• Application: Lockout Tagout
• Gate Valve Lockout Type: Hinged
• Maximum Number of Padlocks: 1
• Risk Type: Mechanical Risk

The hinged design makes application easy. Furthermore, it supports one padlock, increasing security and reducing the risk of accidental valve operation.

Compatibility and Shackle Details

• Maximum Shackle Diameter: 9.53 mm

This lockout device works with padlocks that have a shackle diameter of up to 9.53 mm. It is compatible with many safety locks used in industrial environments.

Preprinted Information for Clear Communication

• Text Legend: DANGER LOCKED OUT DO NOT REMOVE
• Language Options: English, French, Spanish

The device includes clear warnings in multiple languages. This ensures everyone understands the importance of the lockout procedure.

Compliance and Regulatory Information

• UNSPSC Code: 39121909
• RoHS Compliance Status: Not applicable to this product

The Brady® Gate Lockout complies with industry standards, helping companies maintain a safe work environment.

Conclusion: Why Choose the Brady® Gate Valve Lockout?

Gate Lockout is an essential part of any lockout/tagout program. It prevents accidental valve operations, ensuring worker safety. With its durable construction, wide compatibility, and easy-to-use design, it meets all necessary safety standards.
