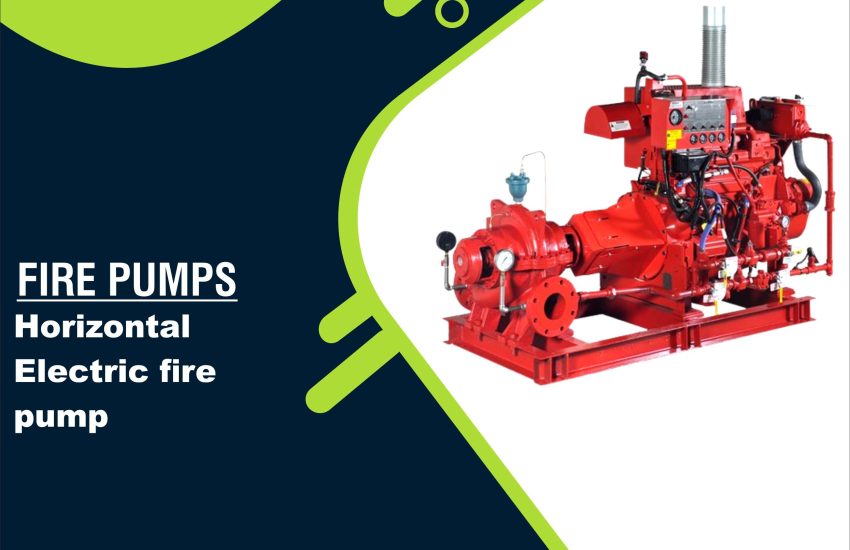

Horizontal Electric Fire Pump

Horizontal Electric Fire Pump
by:admin April 26, 2025 0 Comments

Horizontal Electric Fire Pump is a high-efficiency, robustly designed firefighting pump system that provides critical fire protection for residential, commercial, and industrial facilities. Engineered for reliability and ease of maintenance, this pump ensures safety of human life, protection of buildings, and preservation of valuable equipment during fire emergencies.

Designed in accordance with NFPA 20 guidelines, this pump is ideal for spaces where positive suction is available and offers exceptional performance under challenging operational conditions.


Key Features of Horizontal Electric Fire Pump

✅ Dual Drive Options

This system is available with either a diesel engine or electric motor drive, offering flexibility for emergency backup power and standard operations.

✅ Automatic Air Relief Valve

Equipped with an automatic air relief valve, the pump prevents air accumulation in the casing, ensuring smooth startup and uninterrupted operation during fire emergencies.

✅ Space-Saving Installation

Its compact horizontal layout makes it ideal for space-constrained installations, retrofit applications, and modern high-rise building fire protection systems.


Technical Specifications

  • Pump Casing: Cast Iron Grade FG 260 as per IS 210 / ISO 186
  • Suction & Discharge: Radial ports for optimized flow efficiency
  • Impeller: Closed-type, dynamically balanced, made of bronze
  • Wear Ring: Bronze casing wear ring for extended pump life
  • Shaft: High-strength steel shaft
  • Seal Options: Gland packing or mechanical seal suitable for 16 bar pressure and water temperature between 0°C and +90°C

These components ensure long service life, corrosion resistance, and high operational efficiency, even in intensive firefighting environments.


Electric Motor Configuration

The electric motor used in the horizontal fire pump is:

  • Type: Totally Enclosed Fan Cooled (TEFC) induction motor
  • Insulation: Class F insulation for thermal stability
  • Duty: S1 continuous duty
  • Protection: IP55 protection against dust and water
  • Power Supply: 3 phase, 415 volts, 50/60 Hz

This configuration ensures reliable long-term operation, low noise levels, and energy efficiency.


Maintenance-Friendly Split Case Design

Thanks to its split case construction, the pump allows for easy inspection and maintenance. Internal components such as ball bearings, shaft seals, wear rings, and impellers can be removed without disturbing the electric motor or existing pipework—saving both time and labor during servicing.


Applications

The horizontal electric fire pump is suitable for a wide range of clean water applications where corrosion-resistant, high-performance pumping is required:

  • Fire protection systems for buildings and complexes
  • Sprinkler and hydrant networks
  • Water circulation in HVAC fire safety integration
  • High-rise and commercial facilities
  • Petrochemical plants and industrial zones

Performance Limits

  • Liquid Temperature Range: 0°C to +90°C
  • Ambient Temperature: Up to +50°C
  • Max Working Pressure: 16 bar
  • Operation: Continuous duty (S1)

These specifications confirm the pump’s capability to handle demanding operational conditions, ensuring consistent fire protection and compliance with global safety standards.


Conclusion

The Horizontal Electric Fire Pump is the optimal solution for modern fire safety systems, offering a reliable, durable, and efficient firefighting pump system. With its split case design, premium materials, and electric motor configuration, it delivers high performance and low maintenance in a wide range of fire protection applications.

Choose a horizontal electric fire pump that meets international standards and delivers performance when it matters most.
