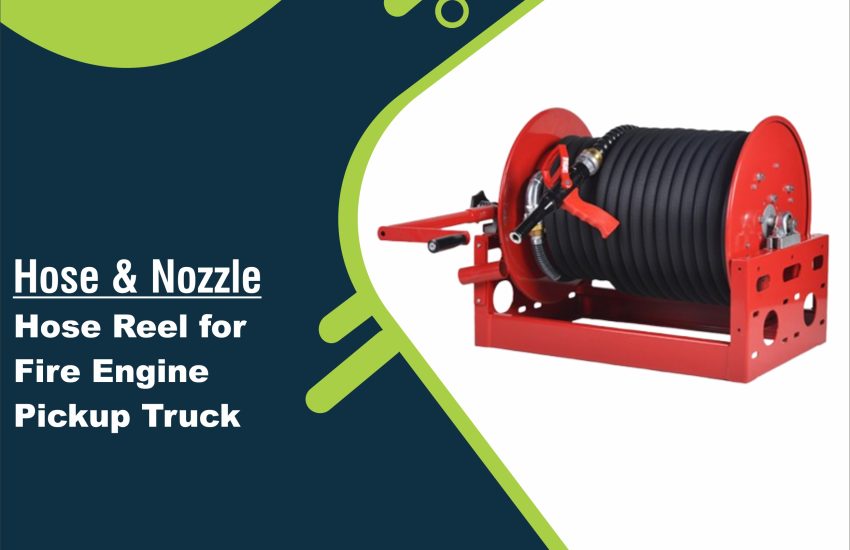

Hose Reel for Fire Engine Pickup Truck For fire safety professionals who demand performance and reliability, the Hose Reel Assembly Model 6025 is a top-tier choice. Built for high-pressure applications, this robust system is ideal for fire engine pickup trucks and other emergency response vehicles. Its strong construction and efficient manual operation ensure dependable performance during critical firefighting operations.
Product Overview of Hose Reel for Fire Engine Pickup Truck
Hose Reel for Fire Engine Pickup Truck Designed to endure intense working conditions, the 6025 Hose Reel combines precision engineering with functional design. It operates at a maximum pressure of 30 bar and features a manual hand crank with a brake system for controlled hose handling. In addition, its high-strength carbon steel build and protective red powder coating enhance both durability and corrosion resistance.
Specifications of Hose Reel for Fire Engine
Hose Reel Assembly
- Model: 6025
- Max. Pressure: 30 bar
- Inlet: 90° super swivel with 1” female NPT
- Outlet: 1” male NST
- Control: Hand crank and integrated brake
✅ Brake Assembly
- Material: All carbon steel hardware
- Finish: Standard red powder coating
✅ Hose Options
PU Lined Hose with Protection Pipe
- Size: DN25
- Max. Operating Pressure: 30 bar
- Length: 30 meters
- Color: Black
PVC Hose
- Size: DN25
- Max. Operating Pressure: 30 bar
- Length: 30 meters
- Color: Red
✅ Nozzle Options
Model 1402
- Inlet: 1” NST
- Max. Operating Pressure: 20 bar
- Flow Rate: 20 / 50 / 100 / 150 LPM @ 20 bar
- Material: Aluminium Alloy
Model 1308 (CAFS-Compatible)
- Inlet: 1” NST
- Max. Operating Pressure: 16 bar
- Specification: 16mm orifice hole
- Material: Aluminium Alloy
Key Benefits of Hose Reel for Fire Engine Pickup Truck
- Engineered for Reliability – Supports up to 30 bar pressure, making it suitable for professional firefighting use
- Long-Lasting Construction – Carbon steel frame with red powder coating offers superior strength and corrosion resistance
- Customizable Hose Options – Available with both PU and PVC hoses to meet different operational requirements
- Manual Control with Brake – Hand crank design allows precise hose management in high-pressure situations
- Versatile Nozzle Performance – Offers adjustable flow rates and CAFS compatibility for enhanced fire suppression
Ideal Applications of Hose Reel for Fire Engine
This model is suitable for a wide range of uses. It’s perfect for fire engine pickup trucks, industrial fire protection systems, emergency service vehicles, and construction site fire equipment. In particular, it’s designed for teams that require quick response and easy hose deployment in the field.
Conclusion
Hose Reel for Fire delivers unmatched functionality and rugged performance. Whether you’re upgrading your firefighting gear or building out a new emergency response vehicle, this model provides the flexibility, strength, and efficiency needed on the front lines.
