Hydraulic Suction Strainer stands out for its durability, efficiency, and easy integration into hydraulic systems. Designed for use in a variety of industrial and mobile hydraulic applications, this strainer ensures that your hydraulic pump is protected from contamination right from the reservoir.
Product Overview

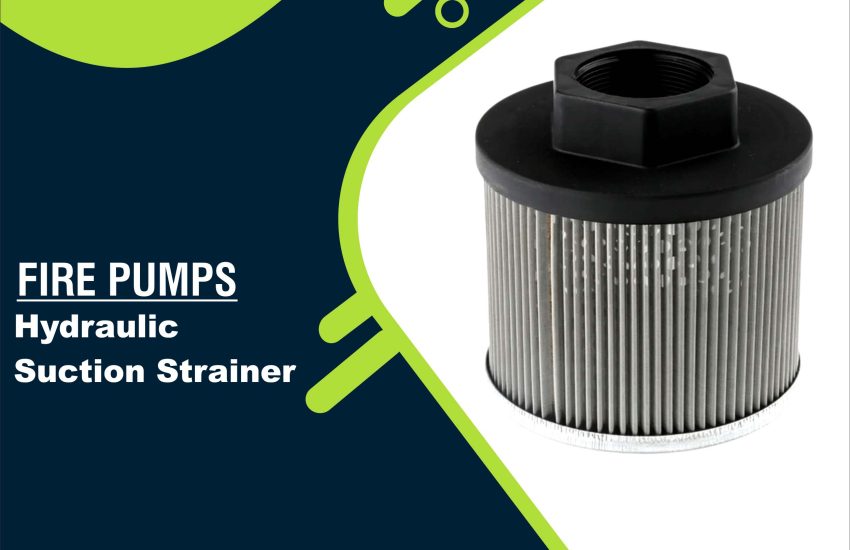

The Parker Hydraulic Suction Strainer is a complete one-piece filter unit, engineered for direct installation onto the suction line of a hydraulic pump. Its robust construction and high flow capacity make it ideal for continuous use in demanding environments.
Key Specifications
- Brand: Parker
- Connection Thread: BSP 2
- Thread Size: 2 inch
- Maximum Flow Rate: 225 L/min
- Overall Diameter: 150 mm
- Overall Length: 150 mm
- Filtration Size: 125 microns (125µm)
- Maximum Operating Temperature: +90°C
- Thread Standard: BSP (British Standard Pipe)
- Country of Origin: United Kingdom
Features and Benefits
- One-Piece Design: The Parker suction strainer features a fully epoxy-bonded construction, combining the end caps, filter media, and support cylinder into a single unit. This ensures maximum durability and leak-free operation.
- High Flow Capacity: With a flow rate of up to 225L/min, this filter supports high-demand hydraulic systems without restricting fluid movement.
- Efficient Filtration: The 125µm mesh size offers reliable protection against large contaminants, helping to extend the life of your hydraulic components.
- BSP Thread Compatibility: Equipped with BSP 2” threads, the strainer fits seamlessly into systems using British Standard Pipe fittings.
- Thermal Resistance: Capable of operating at temperatures up to +90°C, making it suitable for a wide range of industrial conditions.
Applications
The Parker BSP 2 Hydraulic Suction Strainer is ideal for:
- Hydraulic power units
- Mobile equipment reservoirs
- Industrial hydraulic tanks
- Agricultural and construction machinery
- Oil filtration systems
Designed for installation below the minimum fluid level in hydraulic tanks, this strainer ensures continuous filtration even when fluid levels fluctuate.
Why Choose Parker Hydraulic Suction Strainers?
With decades of experience in hydraulic filtration, Parker is a trusted name known for quality, performance, and innovation. This suction strainer offers long service life, minimal maintenance, and superior contaminant protection, making it a valuable addition to any hydraulic system.
