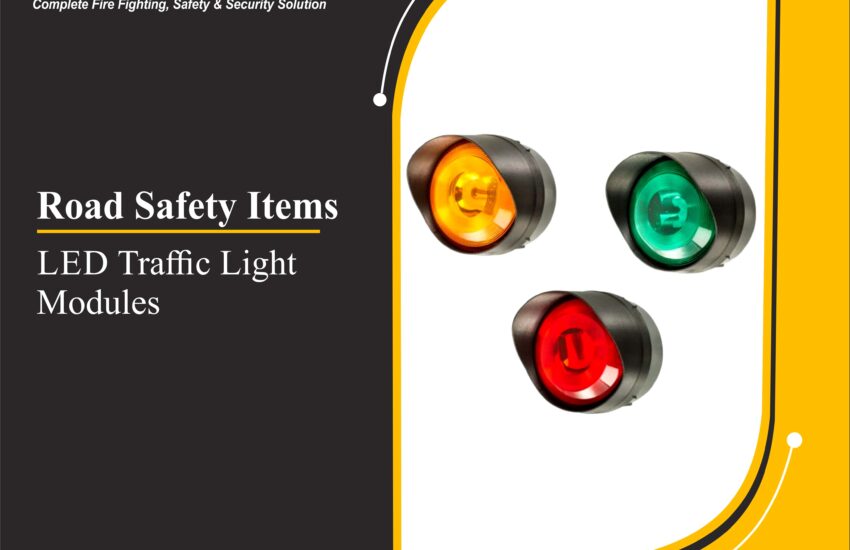

LED Traffic Light Modules are the perfect solution for industrial and commercial traffic control. Designed for low maintenance, long lifespan, and cost-effectiveness, these units are ideal for car park management, factory vehicle coordination, and automated gate or door systems.

Whether used indoors or outdoors, these LED traffic signal modules deliver reliable performance with high visibility. Each unit features 36 high-output LEDs, offering bright and clear signal indication in red, amber, or green.

Key Features and Benefits:

• Industrial and Commercial Applications
  Designed for various applications such as car parks, factories, warehouses, automated doors, and gated entry points, these lights provide a clear visual indication in busy or high-risk environments.
• Flexible Mounting Options
  You can surface mount the unit on any flat vertical surface or conduit box. Additionally, the modular design allows multiple light units to be assembled together, making it easy to create a custom multi-indicator system.
• Reliable and Long-Lasting
  With 36 high-brightness LEDs per module, these lights ensure excellent visibility. The lights are also continuously rated for 24/7 operation and built with UV-stabilised polycarbonate, ensuring durability in harsh outdoor conditions.
• Weatherproof and Safe
  The housing has an IP65 rating, protecting the module from dust and water ingress. It operates efficiently in a wide temperature range, from -25°C to +55°C, making it suitable for all climates.
• Control and Integration
  These modules require external input signals or PLC control systems to operate (not included). The amber light can optionally flash when energized by enabling the jumper link on the PCB, offering additional functionality.
• Convenient Wiring Options
  Cable termination is simple. Access is available through 2 x M20 knockouts (top or bottom) or a rear M20 conduit entry.

Product Specifications:

• LEDs per Module: 36 high-brightness LEDs
• Available Colors: Red, Amber, Green
• Voltage Options: 8–20VAC/DC, 20–30VAC/DC, 85–280VAC
• Ingress Protection: IP65 rated
• Material: UV-stabilised polycarbonate (PC)
• Operating Temperature: -25°C to +55°C
• Mounting: Surface mount or conduit box
• Weight: 0.26 kg
• Diameter: 108 mm
• Flash Function: Amber light flashing via PCB jumper
• Power Source: External control required

Applications:

• Car park traffic light systems
• Factory and warehouse vehicle flow control
• Boom gate entry and exit indicators
• Automated garage door signals
• Industrial access control systems
• Logistic and shipping bays
• Barrier and gate safety indicators
