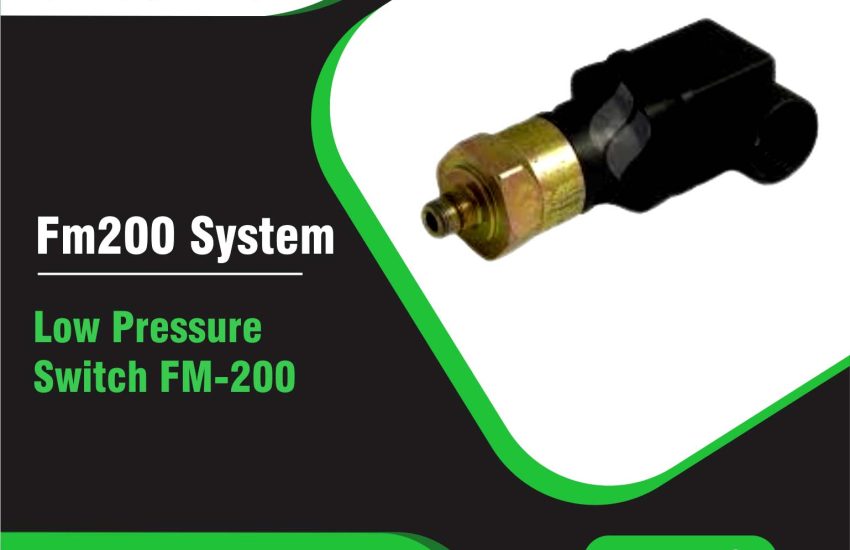

Low Pressure Switch is a vital component in FM-200 fire suppression systems. It monitors the pressure of the FM-200 gas to ensure the system remains operational. This switch detects any pressure drops, triggering an alarm or system action when the pressure falls below a safe level. In this article, we’ll explore the specifications, features, and applications of this essential device.

What is a Low Pressure Switch FM-200?

A Low Pressure Switch monitors the pressure of FM-200, a clean agent used in fire suppression systems. It ensures that the system stays ready by detecting low-pressure conditions. If the pressure falls below a set threshold, the switch triggers an alarm or activates the system. This is critical to ensure that the system will function properly during an emergency.

Key Specifications of Low Pressure Switch FM-200

When selecting a Low Pressure Switch, understanding its specifications is essential. Below are the key specifications:

1. Pressure Range

The pressure range for these switches typically spans from 10 to 50 bar. The switch detects any pressure drop that indicates a problem in the FM-200 system.

2. Activation Point

The activation point is the pressure level at which the switch responds. For most systems, this is between 12 to 20 bar. This range ensures that the system reacts promptly to pressure drops.

3. Contact Type

The switch usually has either SPDT (Single Pole Double Throw) or DPDT (Double Pole Double Throw) contacts. These contacts control the activation signal sent to the alarm system or monitoring panel.

4. Electrical Rating

The electrical rating indicates the level of voltage and current the switch can handle. Most Low Pressure Switch models are rated for 250 VAC or 30 VDC with a 5A rating, suitable for fire suppression systems.

5. Material and Build Quality

The switch is made from stainless steel or high-quality plastic to ensure durability. These materials protect the switch from corrosion and wear in challenging environments.

6. Operating Temperature Range

The switch typically operates within a temperature range of -20°C to 60°C. This allows it to function reliably in various indoor and outdoor conditions.

7. Compliance and Certifications

A Low Pressure Switch FM-200 must meet key standards like UL (Underwriters Laboratories) and CE. These certifications confirm that the switch is safe and effective for use in fire suppression systems.

Features of Low Pressure Switch FM-200

Several features make the Low Pressure Switch a crucial component in fire suppression systems:

• High Sensitivity: The switch detects even small pressure changes, providing early warnings.
• Durability: Made with corrosion-resistant materials for long-lasting reliability.
• Easy Installation: Standard fittings make it easy to install in existing systems.
• Reliable Contact Closure: The switch ensures accurate signaling for alarms or system responses.
• Compact Design: Its small size allows for easy integration into tight spaces.
• Corrosion-Resistant: It is built to withstand harsh environments and maintain performance.

Benefits of Using a Low Pressure Switch FM-200

Using a Low Pressure Switch brings several benefits, especially in fire suppression systems:

1. Ensures System Readiness

By monitoring pressure levels, the switch ensures the FM-200 system stays prepared to activate in case of fire. Early detection of low pressure allows for quick action.

2. Improved Safety

A properly functioning switch prevents the FM-200 system from failing during a fire. This enhances safety for buildings, equipment, and personnel.

3. Regulatory Compliance

Many fire protection standards require that systems meet specific pressure criteria. The Low Pressure Switch FM-200 ensures compliance with regulations like NFPA 2001 and ISO 14520.

4. Prevents Costly Repairs and Downtime

Early detection of pressure drops helps prevent costly repairs. It also avoids system failure during critical moments, reducing the risk of downtime.

5. Cost-Effective Maintenance

Routine checks with the switch reduce the need for emergency repairs. This proactive approach helps extend the life of the FM-200 system.

Applications of Low Pressure Switch FM-200

Low Pressure Switch systems are used in various critical applications, such as:

• Data Centers: Protecting sensitive equipment from fire.
• Telecommunications: Ensuring continuous operation during a fire.
• Pharmaceutical Manufacturing: Protecting production areas from fire hazards.
• Industrial Plants: Safeguarding machinery and assets.
• Museums and Archives: Preventing damage to valuable documents and artifacts.
• Commercial Buildings: Offering protection for offices and hospitals.

Conclusion

The Low Pressure Switchis a vital component of FM-200 fire suppression systems. It ensures that the system operates properly by detecting low-pressure conditions. With its key specifications, reliable features, and benefits, it plays an essential role in protecting critical environments from fire risks.
