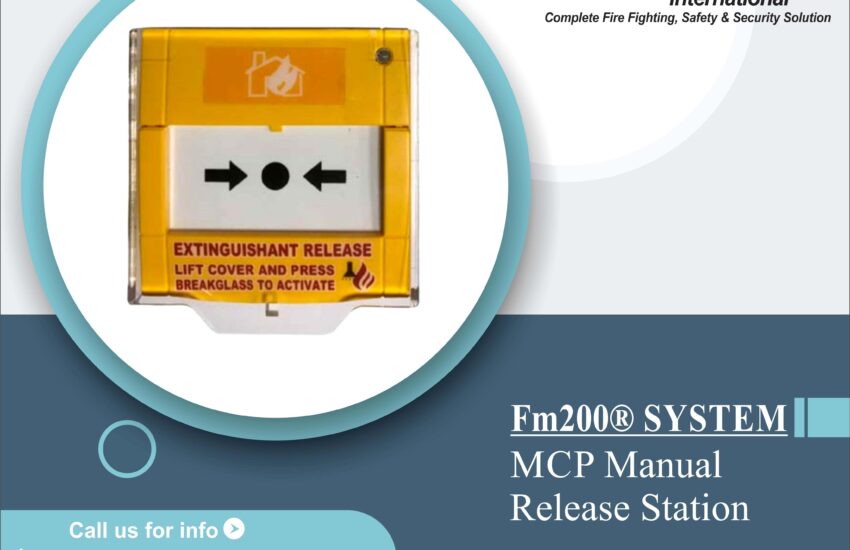

MCP Manual Release Station is a compact and reliable emergency push button designed for fire and security systems. It uses a non-latching manual push mechanism, allowing fast manual intervention. This ensures immediate control during critical emergencies.
Additionally, the device can act as a delay push button in automatic fire suppression systems. It gives users the ability to pause or stop an ongoing emergency process, such as the release of suppressant gas or disconnection of power. This feature helps prevent false alarms or unnecessary system activation.
Key Features and Benefits
- Manual Activation: The non-latching push button allows quick and simple manual operation.
- Delay Capability: Allows emergency systems to be paused or stopped if needed.
- Low Power Use: Operates at 24Vdc with a maximum activation current of 30mA, making it efficient and safe.
- Protected Design: Rated IP43, it resists dust and light water spray. This adds durability in various indoor settings.
- Wide Temperature Range: Functions between -10°C and +55°C with up to 95% relative humidity, non-condensing.
- Flexible Installation: Compact design, suitable for mounting with or without a box.
Furthermore, its lightweight structure simplifies handling and reduces installation time.
Technical Specifications
| Specification | Description |
|---|---|
| Operating Voltage | 24Vdc |
| Activation Mode | Manual push button (non-latching) |
| Standby Current | 0mA |
| Activation Current | ≤ 30mA (470Ω resistor) |
| Ingress Protection | IP43 |
| Temperature Range | -10°C to +55°C |
| Relative Humidity | 95%, non-condensing |
| With Mounting Box | 87.1 x 87.1 x 58mm, 160g |
| Without Mounting Box | 87.1 x 87.1 x 23mm, 107g |
Practical Applications
This manual call point is ideal for:
- Fire suppression systems
- Emergency shutdown systems
- Alarm control panels
- Power isolation points
- Industrial and commercial buildings
In contrast to automatic systems, the MCP allows human decision-making when precision is needed. Therefore, it adds an extra layer of safety.
Why Choose the MCP Manual Release Station?
The MCP is an essential tool in any emergency response system. Its simple operation, compact size, and reliable performance make it suitable for a wide range of use cases.
