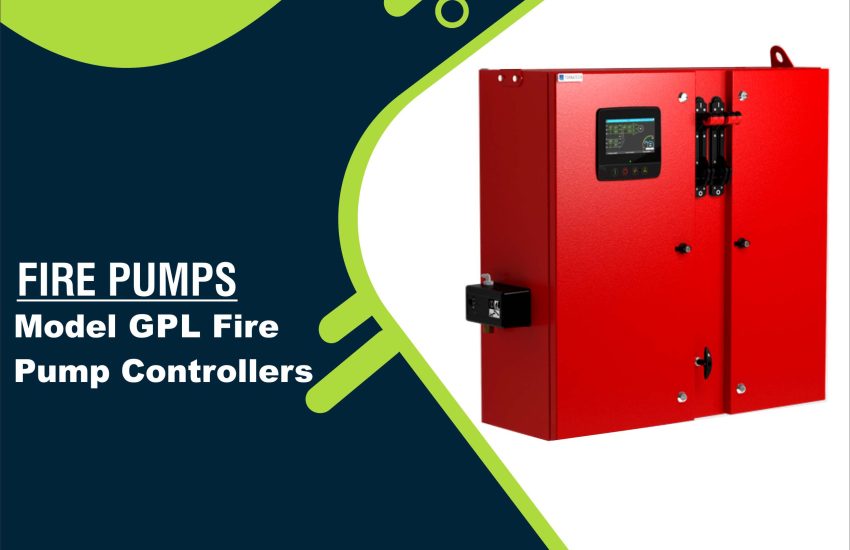

Model GPL Fire Pump Controllers is a reliable, UL-listed solution specifically designed for use with electric motor-driven fire pumps. Engineered to comply with the NFPA 20 standard, this limited service electric fire pump controller is ideal for select fire protection systems where full-service controllers are not required. It features cutting-edge ViZiTouch HMI technology for intuitive operation and monitoring.
Key Features of GPL Limited Service Fire Pump Controller
- Application: Designed for electric motor driven fire pumps
- Compliance: Manufactured in accordance with NFPA 20
- Certification: UL listed, approved for specific fire pump services
- User Interface: Advanced ViZiTouch 7-inch color touchscreen operator interface
- Technology: HMI (Human Machine Interface) based control panel
- Starting Method: Across-the-line starting only
- Horsepower Capacity: Supports motors up to 30 HP maximum
- Installation: Must be installed only where approved by the authority having jurisdiction (AHJ)
- Insurance Limitations: Not accepted in FM-insured properties
This controller offers a cost-effective and simplified fire pump control solution for installations that meet the limited service criteria set forth by NFPA.
GPL Limited Service Controller with Automatic Power Transfer Switch
When normal utility power is unreliable, the Model GPL fire pump controller is available with an integrated automatic power transfer switch. This variant ensures continuous operation by seamlessly switching to an emergency power source.
Transfer Switch Controller Features:
- Power Backup: Provides automatic power transfer when utility power fails
- Construction: Enclosed in a barriered compartment or in a separate attached enclosure
- Compliance: Fully listed and approved for fire pump service
- Testing Capability: Equipped with a TRANSFER SWITCH TEST pushbutton for regular maintenance checks
This version is ideal for facilities that demand uninterrupted fire pump operation, even during utility outages.
Limitations and Compliance Notes
- Supports across-the-line starting only
- Maximum 30 horsepower rating
- Installation subject to local authority approval
- Not suitable for installation in FM Global insured properties
