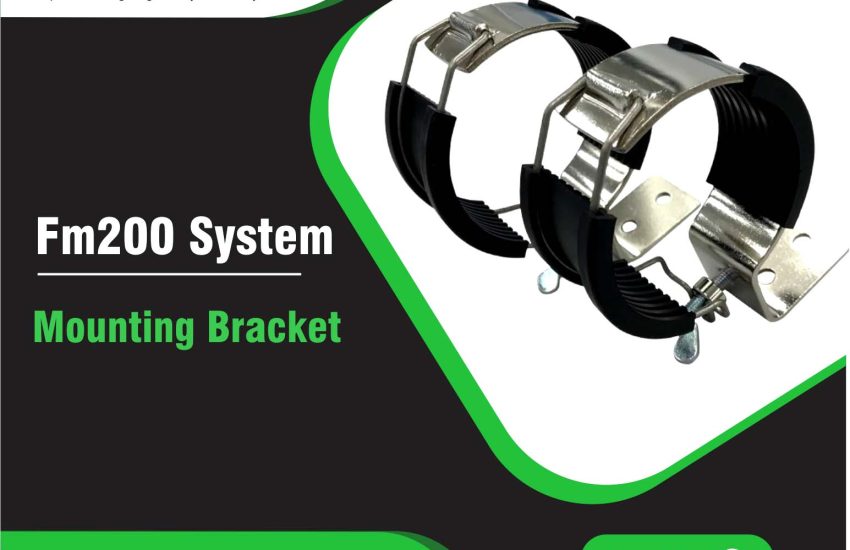

Mounting Brackets securely hold and support cylinders, whether gas cylinders, pressure vessels, or tanks. These brackets play a crucial role in industries like manufacturing, construction, industrial storage, and laboratories. They ensure safety, accessibility, and convenience when handling cylinders.

This article explores the specifications, features, and applications of cylinder mounting brackets, highlighting their importance in improving cylinder storage and safety.

What Are Cylinder Mounting Brackets?

Cylinder mounting brackets provide stable and secure support for cylinders, tanks, and pressure vessels. They prevent cylinders from tipping, rolling, or shifting, reducing safety hazards and damage. These brackets can attach to walls, floors, or ceilings, depending on the application. They are typically made from materials like stainless steel, aluminum, or mild steel for strength and durability.

Key Specifications of Cylinder Mounting Brackets

When selecting cylinder mounting brackets, it’s essential to understand their specifications to ensure they meet your needs. Below are the key specifications to consider:

1. Material Construction

The material of a cylinder mounting bracket influences its strength, durability, and resistance to environmental factors. Common materials include:

• Stainless Steel: Offers excellent corrosion resistance, making it ideal for harsh environments.
• Mild Steel: A cost-effective option that provides good strength for general industrial use.
• Aluminum: Lightweight, resistant to corrosion, and ideal for applications where weight is a concern.
• Galvanized Steel: Provides added corrosion resistance, suitable for outdoor or exposed installations.

2. Load Capacity

The load capacity of a mounting bracket indicates the maximum weight it can support. Brackets designed for heavy-duty cylinder mounting can hold larger gas cylinders or industrial tanks, while smaller brackets handle lighter applications. Ensure the bracket’s load capacity aligns with the weight of the cylinders it will support.

3. Size and Dimensions

The size and dimensions of the mounting bracket ensure a proper fit for the cylinder. Many brackets offer adjustability to accommodate different cylinder diameters. Some models come with adjustable arms or straps, making them versatile for various cylinder sizes. Typical sizes range from small brackets for laboratory cylinders to large industrial brackets for high-capacity tanks.

4. Mounting Type

Cylinder mounting brackets offer various mounting options:

• Wall-mounted brackets: Attach to walls, providing space-efficient storage for cylinders.
• Floor-mounted brackets: Install at ground level to support heavier cylinders.
• Ceiling-mounted brackets: Store cylinders overhead, ideal for limited floor space.
• Adjustable mounting brackets: These brackets have flexible arms or straps, offering versatility to fit different cylinder sizes and shapes.

5. Safety Features

Safety is a critical consideration for cylinder mounting brackets. Some key features include:

• Locking mechanisms: Prevent accidental movement or release of cylinders.
• Anti-slip designs: Ensure cylinders remain securely in place, even in vibrating environments.
• Rubber padding: Protect cylinders from scratches and damage during storage.
• Reinforced edges: Add extra stability and security for large or heavy cylinders.

6. Corrosion Resistance

Given the environments where cylinder mounting brackets are used, they must be corrosion-resistant. Stainless steel and galvanized steel are commonly used for their superior corrosion resistance. For additional protection, some brackets feature powder coating or zinc plating.

7. Compliance and Certification

Cylinder mounting brackets often meet industry standards and certifications to ensure safety and quality. Some certifications include:

• ISO 9001: Guarantees the manufacturer follows strict quality management processes.
• ASME: Relevant for brackets used with pressure vessels or high-pressure cylinders.
• CE Marking: Indicates that the product meets European safety and environmental standards.

Features of Cylinder Mounting Brackets

Cylinder mounting brackets come with several features that improve performance and safety:

• Heavy-Duty Construction: Designed to hold large gas cylinders or pressure tanks, these brackets offer robust support.
• Versatile Mounting Options: Available in wall-mounted, floor-mounted, and ceiling-mounted styles, providing flexibility for different storage spaces.
• Adjustable Design: Many brackets feature adjustable straps or arms, allowing them to fit various cylinder sizes.
• Durability: Built to withstand harsh conditions, ensuring long-term reliability in both indoor and outdoor environments.
• Easy Installation: Most brackets come with pre-drilled holes or mounting hardware, making installation quick and hassle-free.

Benefits of Cylinder Mounting Brackets

Using cylinder mounting brackets offers several advantages:

1. Improved Safety

Securely mounted cylinders are less likely to tip or shift, reducing the risk of accidents, leaks, or equipment damage. Safety features like locking mechanisms and anti-slip designs enhance protection.

2. Space Efficiency

Cylinder mounting brackets optimize available space. For example, wall-mounted and ceiling-mounted brackets save floor space, which is valuable in factories, laboratories, and storage areas.

3. Cylinder Protection

By preventing movement, cylinder brackets protect cylinders from external damage. Features like rubber padding and reinforced edges further safeguard against wear and tear.

4. Compliance with Industry Standards

Using certified cylinder mounting brackets ensures your cylinder storage system meets safety regulations, especially in industries like medical, pharmaceutical, and chemical manufacturing.

5. Increased Efficiency

Well-mounted cylinders are easier to access, maintain, and replace, improving operational efficiency. Quick installation of adjustable cylinder brackets makes setup simple and flexible.

Applications of Cylinder Mounting Brackets

Cylinder mounting bracket are essential in several industries and applications, including:

• Industrial Storage: Secure large cylinders in warehouses or storage rooms.
• Gas Distribution: Store compressed gas cylinders in medical, pharmaceutical, or welding operations.
• Laboratories: Hold small gas cylinders for research or testing.
• Construction Sites: Safely store gas cylinders used for welding or other tasks.
• Healthcare Facilities: Store oxygen or other medical gas cylinders.
• Oil and Gas: Secure high-pressure tanks and gas vessels.

Conclusion

Cylinder mounting bracket play a vital role in securely storing and supporting cylinders. By understanding their specifications, features, and benefits, you can select the best bracket for your needs. Whether you need adjustable brackets, heavy-duty supports, or space-saving solutions, the right cylinder holder brackets ensure safety, efficiency, and compliance in cylinder storage systems.
