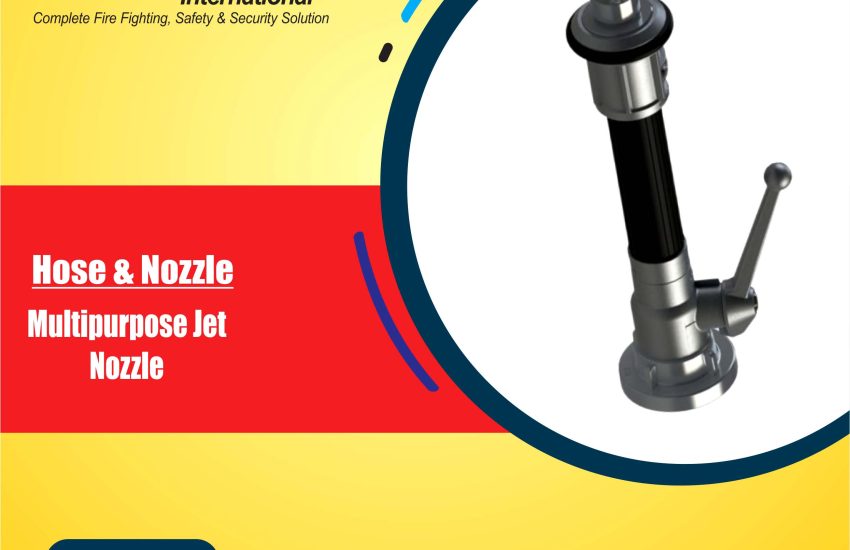

Multipurpose Jet Nozzle When choosing the right jet nozzle for firefighting or industrial applications, selecting one with reliable specifications and performance is crucial. The Multipurpose Jet Nozzle is designed for versatility and high efficiency. Here’s a detailed breakdown of its key features and specifications.
Dimensions and Weight
- Length: 445 mm
- Width: 98 mm
- Height: 165 mm
- Weight: 1.30 kg
The nozzle’s dimensions make it compact yet efficient. With a length of 445 mm and a width of 98 mm, it offers excellent maneuverability. The 1.30 kg weight ensures that the nozzle remains easy to carry and use, even during prolonged operations.
Connection and Compatibility of Multipurpose Jet Nozzle
- System at the Entrance: Storz
- Size Entrance: 52 (C)
- Input: Storz 52 (C)
The nozzle features the Storz coupling system for secure connections with various firefighting equipment. This compatibility makes it versatile, ensuring it can be used with multiple hose types.
Flow Rate and Pressure
- Nominal Size: CM
- Flow Rate at Reference Pressure: 130 L/min
- Reference Pressure: 6 bar
- Max Operating Pressure: 16 bar
This nozzle provides a flow rate of 130 L/min at 6 bar, ensuring powerful performance. It can operate at a maximum pressure of 16 bar, making it suitable for various high-pressure tasks.
Throwing Distance
- Full Jet Distance: 25 meters
- Spray Jet Distance: 11 meters
The throwing distance varies depending on the jet type. The full jet reaches up to 25 meters, while the spray jet covers 11 meters. This versatility allows for flexible coverage in different firefighting and industrial scenarios.
Design Features
- Diameter of Nozzle: 12 mm
- Diameter of Mouthpiece: 9 mm
- Spray Angle: 15-20°
The nozzle features a 12 mm diameter for controlled water flow and a 9 mm mouthpiece for precise spray control. With an adjustable spray angle of 15° to 20°, it allows users to choose the ideal water distribution pattern for the task at hand.
Material and Durability
- Material Coupling: Aluminum
- Applicable Standard: DIN EN 15182
The nozzle’s aluminum coupling ensures durability and resistance to corrosion. It is built to withstand the rigors of firefighting and industrial use. Additionally, it meets DIN EN 15182 standards, guaranteeing quality and safety.
Benefits of the Multipurpose Jet Nozzle
Versatility
The multipurpose jet nozzle is ideal for both firefighting and industrial cleaning. Its adjustable spray angles and flow rate allow for a wide range of applications. Whether you’re tackling fires or cleaning industrial sites, this nozzle performs well in both scenarios.
Durability
Constructed with high-quality aluminum coupling, this nozzle can withstand harsh conditions. It is built to last, even during high-pressure operations.
Optimal Performance
With a flow rate of 130 L/min and the ability to handle 16 bar of pressure, the nozzle provides powerful, consistent performance. This makes it an excellent choice for demanding tasks.
Ease of Use
The lightweight design and ergonomic structure make the nozzle comfortable to use for extended periods. The Storz coupling system ensures quick and secure connections to hoses, improving efficiency during firefighting operations.
Conclusion
Multipurpose Jet Nozzle features. offers a balanced combination of performance, durability, and versatility. It meets the DIN EN 15182 standard, ensuring safety and reliability. With its adjustable spray angles and powerful water flow, this nozzle is suitable for a variety of firefighting and industrial applications. If you’re looking for a reliable and efficient nozzle, this one will deliver top-notch performance every time.
