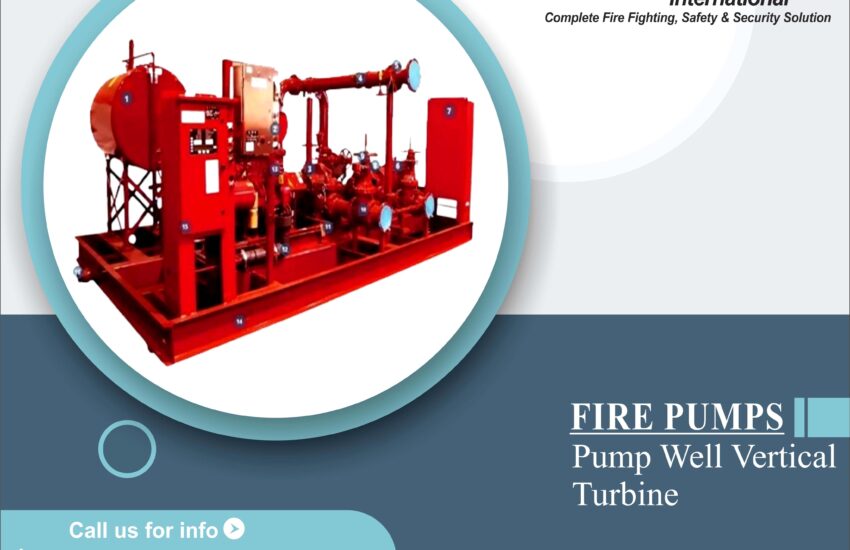

Pump Well Vertical Turbine is an essential solution for deep well water pumping systems, especially where high flow and pressure are critical. Designed for durability and efficiency, this pump is widely used in fire protection systems, industrial facilities, and commercial water supply operations. At Silver String Safety, we offer vertical turbine pump sets that are compliant with UL, FM, LPCB, and CE standards, ensuring top-level performance and safety.
Pump Specifications
- Pump Type: Deep Well Vertical Turbine Pump
- Model: 8 MC/5
- Stages: 5-stage configuration for optimal head and efficiency
- Discharge Capacity: 500 GPM (gallons per minute)
- Operating Pressure: 9 Bar (approx. 130 PSI)
- Column Pipe Setting: 10 feet
- Column Pipe Diameter: 4 inches
- Discharge Head: Heavy-duty construction for long-term reliability
Electric Motor Specifications
- Type: Vertical Hollow Shaft Electric Motor
- Power Rating: 60 HP
- Speed: 2900 RPM
- Voltage & Frequency: Customizable as per site requirements
Diesel Engine Backup
To ensure uninterrupted operation during power outages, we provide a diesel engine backup:
- Engine Type: Diesel-powered emergency operation
- Power Output: 44 kW
- Speed: 2900 RPM
Control & Accessories
To support full automation and reliable performance, our vertical turbine pump sets include:
- Motor Control Unit (MCU): Integrated for automated and user-friendly control
- Jockey Pump: Helps maintain system pressure and readiness
- Non-Return Valve (NRV): Heavy-duty construction prevents backflow
- Pressure Gauges: High-accuracy for real-time pressure monitoring
- Skid Mounted System: Complete with header and footer assembly for easy installation and system stability
Key Features of Our Vertical Turbine Pumps
1. High Flow Capacity & Operating Pressure
With a flow rate of 500 GPM and an operating pressure of 9 bar, our vertical turbine pumps are engineered to deliver powerful performance. They ensure reliable water delivery, making them ideal for emergency fire fighting, commercial water supply, and industrial process systems.
2. Multiple Material Options
We understand different site and application requirements. That’s why our pumps are available in stainless steel, bronze, cast iron, and ductile iron materials—offering flexibility for corrosive, abrasive, and high-pressure environments.
3. UL/FM Approved & LPCB Certified
Silver String Safety delivers UL listed, FM approved, and LPCB certified vertical turbine pumps. Whether you’re looking for locally manufactured pumps, China-imported pumps, or Silver String custom-manufactured pumps, we provide complete solutions to meet compliance and performance expectations.
4. Application in Fire Protection Systems
Our vertical turbine pumps are ideal for:
- Textile manufacturing units
- Pharmaceutical industries
- Petrochemical and oil refineries
- Commercial complexes and warehouses
Their compliance with fire safety standards makes them a top choice for critical infrastructure and risk-prone environments.
5. Installation & Maintenance
These pumps can be installed above ground or below ground, depending on site layout. You can choose from oil-lubricated or water-lubricated bearing systems, both designed to minimize wear and extend service life.
Why Choose Silver String Vertical Turbine Pumps?
- Compliant with UL, FM, LPCB, and CE standards
- Suitable for fire fighting systems, deep well water applications, and industrial use
- Fully customizable motors and engine configurations
- Integrated control units for smooth automation
- Backed by expert installation and after-sales support
Conclusion
A Pump Well Vertical Turbine is a long-term investment in safety, performance, and efficiency. Whether for fire protection or industrial water delivery, our high-capacity turbine pumps ensure your system operates reliably under pressure.
