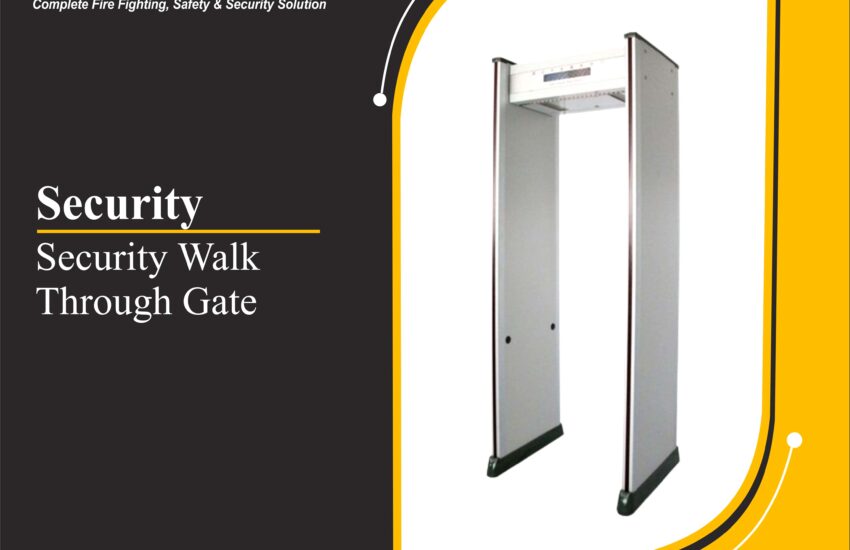

Security Walk Through Gate VW-33Z is a high-performance metal detection system designed for sensitive environments such as museums, prisons, piers, and stations. Built with advanced anti-spy technology, this flatbed-style detector provides 33 independent detection zones, offering maximum security and pinpoint accuracy. Whether used indoors or outdoors, this walk-through gate ensures comprehensive threat detection without compromising user safety.
Key Features
🔍 33-Zone Pinpoint Detection
- Independent detection for left, center, and right zones from head to toe.
- LED indicators display exact location of metal on the body.
- Coin-sized sensitivity for precise threat identification.
⚙️ Advanced Anti-Interference System
- Built with digital and analog technology for maximum accuracy.
- Balanced left-right sensor design to prevent false alarms or missed threats.
- Multiple gates (up to 8 units) can be installed side-by-side with only 50cm spacing, without interference.
🛡️ Tamper-Proof Design
- Ergonomically designed, tamper-resistant panels.
- Protected by password authorization, allowing only authorized personnel to access settings.
📊 Smart Operation and Monitoring
- Real-time LCD display for:
- Number of people passed.
- Alarm count.
- Interference level.
- Operation via remote control or onboard panel.
🎛️ Customizable Sensitivity
- Adjustable sensitivity for each of the 33 zones, ranging from 0 to 99.
- Adaptable for different security requirements and environments.
✅ Safe and User-Friendly
- Harmless to pregnant women, heart pacemaker users, and electronic storage devices.
- Low-intensity magnetic field ensures non-intrusive screening.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | VW-33Z |
| Form | Flatbed |
| Application Areas | Museum, Prison, Pier, Station |
| Use Range | Indoor or Outdoor |
| Remote Control | Yes |
| Install Guide | Supplied Free of Charge |
| Material | Durable Metal Alloy |
| Net Weight | 75kg |
| Gross Weight | 90kg |
| Cross Weight | 75kgs |
| Working Power | 30W |
| Voltage | AC 110V ~ 220V |
| Operating Temperature | -20°C to +55°C |
| Transport Package | Strong Carton Box or Plywood Crate |
Dimensions
- Exterior Size: 2200mm × 800mm × 600mm
- Interior Passage Size: 2050mm × 700mm × 600mm
- Alley Dimensions: 2240mm (H) × 760mm (W) × 580mm (D)
- Overall Size: 2240mm (H) × 900mm (W) × 580mm (D)
Certifications
- Compliant with CE and ISO standards, ensuring high quality and global acceptance.
Conclusion
The Security Walk Through Gate VW-33Z is a versatile and secure solution for high-risk or sensitive areas requiring precise and reliable metal detection. With robust construction, intelligent features, and advanced interference rejection, it ensures maximum protection with minimal inconvenience. Whether for a public space or a restricted facility, this unit offers unbeatable performance and user safety.
