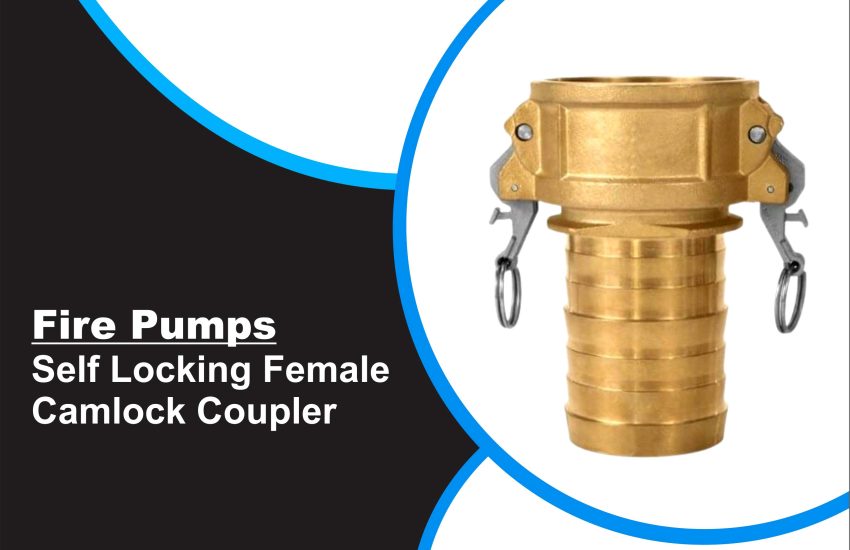

Self Locking Female Camlock Coupler

Self Locking Female Camlock Coupler
by:admin June 18, 2025 0 Comments

Self Locking Female Camlock Coupler is a specialized quick-connect fitting designed for secure, stationary fluid transfer systems. Manufactured by Gloxco, this Type C brass cam and groove fitting offers a strong combination of safety, durability, and easy installation—ideal for industries where secure hose connections are critical.

Product Overview

  • Product Type: Type C Cam and Groove Fitting
  • Connection Size: 1” Female Camlock x 1” Hose Shank
  • Material: Brass
  • Weight: 0.8 lbs
  • Dimensions: 2” x 2” x 5”
  • Gasket Type: Buna-N (NBR)
  • Max Pressure Rating: 250 PSI
  • Brand: Gloxco
  • Camlock Arms: Self-locking, Stainless Steel

This Type C self locking camlock coupling features a 1-inch female camlock quick connect coupling on one end and a 1-inch hose shank on the other, allowing quick and leak-free connections to 1” hoses and compatible 1” male camlock fittings.

Self-Locking Design for Stationary Use

Unlike standard cam and groove couplings, this model features special self-locking cam arms. Once fully closed, the arms automatically lock into place, offering additional security against accidental disconnection. The lock remains engaged until the finger rings are manually pulled in the same direction as the arm opens.

⚠️ Important Note: These self-locking camlock fittings are designed for stationary applications only. If dragged or if a foreign object snags the release ring, the arms can unintentionally open.

Key Features & Benefits of Self Locking Female Camlock Coupler

  • Self-locking stainless steel cam arms for extra safety
  • Brass body for corrosion, abrasion, and chemical resistance
  • Buna-N (NBR) gasket resistant to oil, fuel, coolants, and petroleum-based fluids
  • Quick connect/disconnect functionality
  • Conforms to commercial specification A-A-59326D

Ideal Applications of Self Locking Female Camlock Coupler

These brass camlock couplers are widely used across industries where safe and quick hose connections are essential:

  • Vacuum trucks and trailers
  • Frac tanks and fuel delivery systems
  • Wastewater and fluid handling
  • Agriculture and grain movement
  • Mining, road construction, and fire protection
  • Aviation fueling and industrial cooling systems

Compliance & Safety

Gloxco’s Type C brass cam and groove fittings are built to strict industry standards and are compatible with other camlock fittings that meet A-A-59326D specifications.

Do not use for compressed air or steam applications.

Final Thoughts

For those seeking a secure, reliable, and durable cam and groove fitting, Gloxco’s Self Locking Type C Female Camlock Coupler is a top-tier choice. Built from corrosion-resistant brass, featuring a robust self-locking mechanism, and designed for stationary fluid transfer systems, this fitting offers industry-standard performance with enhanced safety features.
