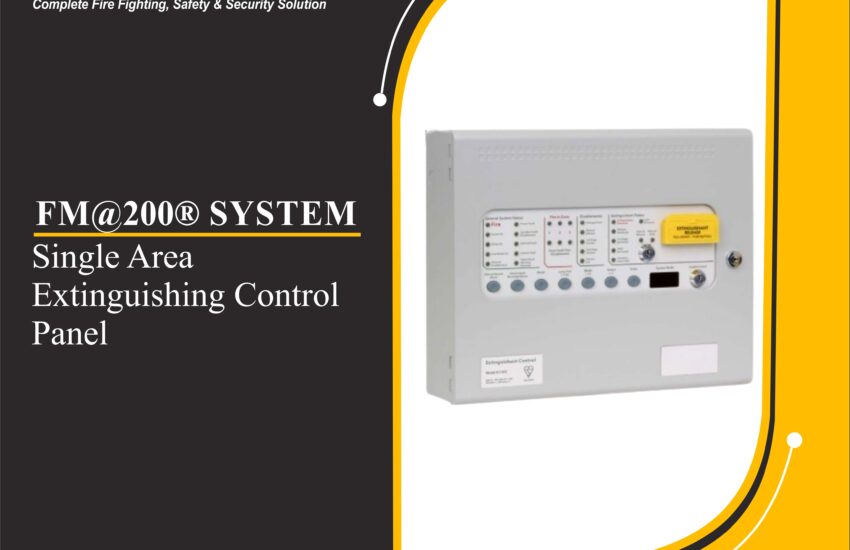

Single Area Extinguishing Control Panel Looking for a reliable and compliant single area extinguishing control panel? This advanced extinguishant releasing unit is the ideal solution for small to medium fixed fire-fighting installations. Designed and manufactured to the highest standards in a quality-controlled environment, it meets all relevant European approvals, including EN12094-1, EN54-2, and EN54-4.
With powerful features, robust construction, and user-friendly configuration, this control panel ensures optimal performance and safety in a wide range of fire suppression applications.
Compliant, Configurable, and Cost-Effective
Single Area Extinguishing Control Panel comes with three detection zones as standard, allowing full flexibility in activation logic. The extinguishant release can be programmed to trigger from any single zone or any combination of zones. This makes it ideal for applications requiring multi-zone verification—such as ceiling voids, floor voids, and room detection setups using any two-of-three activation logic.
Key Features
- ✅ Approved to EN12094-1, EN54-2, and EN54-4
- 🔥 Three detection zones as standard
- 🔁 Flexible release configuration – any single zone or zone combinations
- ⏱ Configurable delays for detection and first-stage sounders
- 🚨 Manual release option with zero delay
- 🌐 Compatible with intrinsically safe (I.S.) barriers
- 🔄 Non-latching zone inputs – ideal for interfacing with aspirating systems
- ⏳ Extinguishant delay up to 60 seconds (in 5-second steps)
- 🧯 Extinguishant duration configurable up to 5 minutes (in 5-second steps)
- 🧮 Built-in countdown timer showing time remaining before release
- 📟 Supports up to seven four-wire status indicators
- 🌬 Built-in control for extract fans
Intuitive Design and Easy Installation
The control panel features a large LED display for clear system status and intuitive setup. The internal electronics are mounted on a single, removable steel plate, offering both durability and ease of installation. The enclosure design is clean, professional, and suitable for integration into a wide range of modern fire protection systems.
Applications
This single area extinguishing control panel is ideal for:
- Server rooms and data centers
- Electrical and control rooms
- Telecommunications facilities
- Cleanrooms and laboratories
- Equipment enclosures and switchgear rooms
Benefits at a Glance
- Fully compliant with European fire safety standards
- Adaptable to a wide range of detection and release scenarios
- Clear countdown display enhances safety during activation
- Seamless integration with other systems like aspirating smoke detection
- Rugged design ensures long-term reliability and quick installation
Conclusion
If you need a reliable, compliant, and configurable fire suppression control panel, this single area solution delivers everything required for high-performance fixed fire-fighting systems. With its combination of advanced features, easy setup, and standard-compliant design, it offers peace of mind and effective protection for critical environments.
