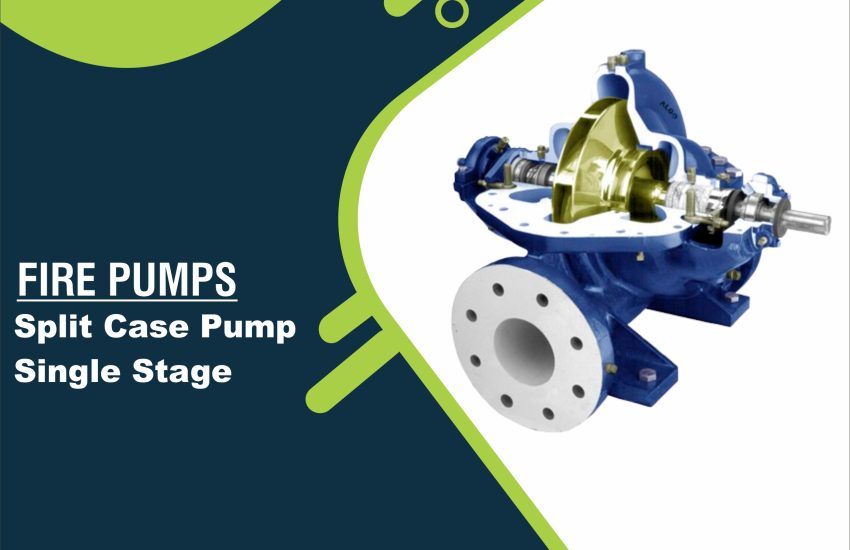

Split Case Pump Single Stage (PSC pump) is a horizontal, centrifugal pump that features a single stage, double volute, and axially split casing. It is engineered for high capacity, high efficiency, and easy maintenance, making it an ideal choice for industrial water supply, firefighting systems, and other demanding fluid handling applications.
Key Features of the PSC Split Case Pump
1. Horizontal, Single Stage Design
The PSC pump uses a single impeller to deliver fluid efficiently at medium to high flow rates. Its horizontal configuration is space-saving and perfect for fixed installations in buildings or industrial sites.
2. Double Volute Structure
The double volute casing balances radial forces and reduces bearing load, improving performance and extending service life, especially in high-capacity pumping scenarios.
3. Axially Split Casing
Its axially split casing allows quick and easy access to internal components. Internal inspection and maintenance can be performed without disassembling the motor or coupling—significantly reducing downtime and service labor.
Vertical and Horizontal Split Options
The casing of a single stage split case pump can be split vertically or horizontally, relative to the impeller position. A vertical split case pump allows access from the top, while a horizontal split case pump separates at the shaft level.
Some pump manufacturers also offer custom casing configurations to optimize performance for specific applications such as municipal water systems, cooling systems, or irrigation projects.
Power Options: Electric Motor and Diesel Engine
The PSC pump can be driven by an electric motor or a diesel engine, offering flexibility depending on the application and power availability. This adaptability makes it a reliable solution in areas where electricity may be inconsistent or during emergencies such as fire outbreaks.
Common Applications of Split Case Pump Single Stage
- Fire Fighting Systems
Delivers high-pressure water reliably in emergency scenarios. - Industrial Water Supply
Ensures efficient fluid transfer in large-scale industrial operations. - HVAC Systems
Circulates water in cooling and heating systems in commercial buildings. - Agricultural Irrigation
Offers even and large-volume water distribution for farming needs. - Municipal Water Distribution
Supports clean and efficient transport of drinking water or treated water.
Advantages of PSC Split Case Pump
- Large Flow Capacity
- Energy-Efficient Operation
- Low Vibration and Noise
- Minimal Maintenance Requirements
- Quick Inspection and Repair Without Disassembly
- Available in Horizontal and Vertical Split Configurations
These benefits make the PSC pump a trusted choice for industries needing long-lasting, cost-effective pumping systems.
Conclusion
The Split Case Pump Single Stage (PSC pump) combines performance, reliability, and ease of service, making it a leading choice in sectors such as fire protection, water distribution, and industrial processing. With options for horizontal or vertical split casing, and electric or diesel drive systems, this pump offers unmatched flexibility and operational value.
