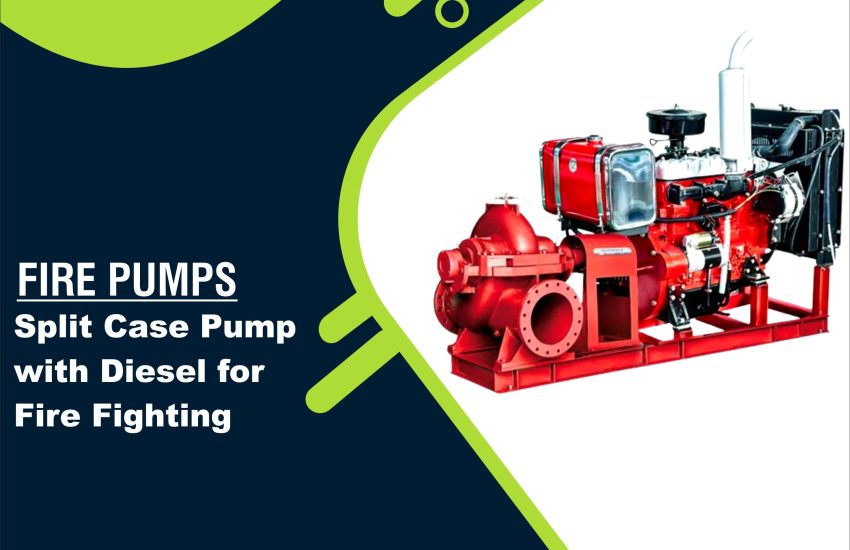

Split Case Pump with Diesel for Fire Fighting is a powerful and reliable pumping solution designed specifically for firefighting systems, industrial water supply, and high-pressure clean water applications. This new-generation split case centrifugal pump offers durability, easy maintenance, and high efficiency, making it a trusted choice for emergency fire protection and demanding operational environments.
Technical Features of the New Split Case Pump
✅ Easily Back Pull-Out from Driver
This pump features a back pull-out design, allowing for quick maintenance without disturbing the motor or piping system—reducing downtime and servicing costs.
✅ Anti-Corrosive Pump Case
Manufactured using HT250 with anti-corrosive coating, the pump casing resists rust and wear, even in harsh environments, increasing pump life and reliability.
✅ Stainless Steel or Galvanized Shaft
The pump shaft is made of AISI 304 stainless steel or galvanized iron, ensuring excellent corrosion resistance and mechanical strength.
✅ High-Quality Bearings and Seal Options
Equipped with premium bearings, the pump offers stable, long-lasting performance. Sealing options include mechanical seals or gland packing, suitable for different operational needs.
✅ Impeller Options
Available with AISI 304 stainless steel impeller or HT250 impeller, depending on application demands and fluid characteristics.
✅ Power Options
This split case pump is available with either an electric motor or a diesel engine, making it suitable for locations with unreliable electricity or off-grid requirements.
Applications
The diesel split case pump is ideal for a wide range of clean water and light industrial fluid applications. It is specifically engineered for fluids that are non-corrosive and non-aggressive to the internal components.
Recommended Uses:
- Fire Fighting Systems
- Water Supply and Distribution
- Booster Systems
- Cleaning Sets
- Irrigation and Agriculture
- HVAC and Climate Control Circuits
- General Industrial Applications
Performance and Operating Limits
- Liquid Temperature Range: -10℃ to +120℃
- Ambient Temperature: Up to +50℃
- Maximum Working Pressure: 25 bar
- Duty Type: Continuous service (S1)
These specs make the split case diesel pump suitable for continuous operation in demanding environments, offering excellent thermal and mechanical resilience.
Benefits of the Diesel Split Case Pump
- 🔧 Low Maintenance and Easy Servicing
- 💧 Handles High Flow Rates with Consistent Pressure
- 🔩 Rugged Materials with Corrosion Resistance
- 🔥 Perfect for Emergency Firefighting Systems
- 🌍 Ideal for Off-Grid and Remote Locations
- ⚙️ Customizable Impeller and Shaft Materials
Conclusion
Split Case Pump with Diesel for Fire Fighting is a powerful and reliable pumping solution designed specifically for firefighting systems, offers a powerful combination of efficiency, reliability, and operational flexibility, making it a superior solution for firefighting, industrial water supply, and pressure boosting systems. With durable materials, a flexible back pull-out design, and options for stainless steel impellers and shafts, this pump ensures long-term performance even under extreme conditions.
