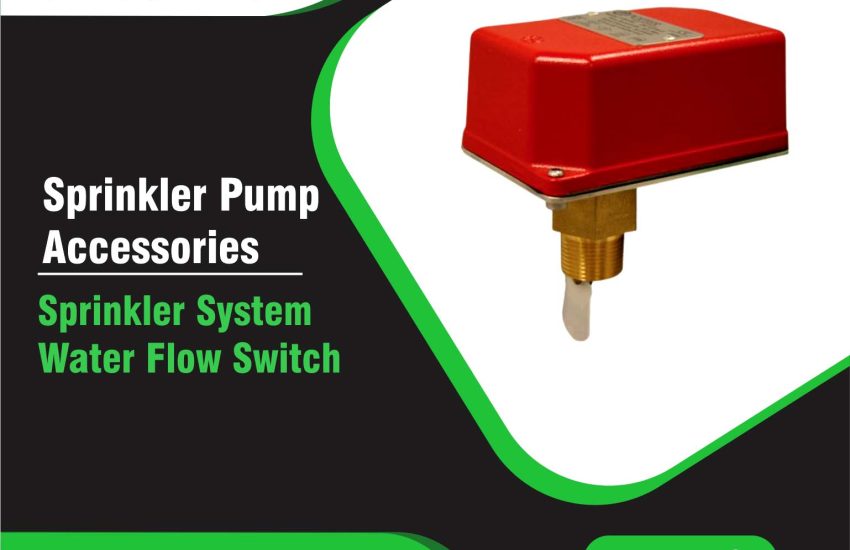

Sprinkler System Water Flow Switch is a critical component in fire protection systems. It plays an important role in detecting water flow during fire emergencies. The flow switch alerts the fire alarm panel and initiates the required response, ensuring quick action when a fire occurs. This article explores the specifications, features, and benefits of sprinkler system water flow switches, helping you understand their importance in ensuring fire safety in commercial and residential buildings.

What is a Sprinkler System Water Flow Switch?

A water flow switch is an electronic device that is installed in the sprinkler system pipeline. When water flows through the system, the switch detects the flow and triggers the fire alarm system. The flow switch helps alert occupants and emergency services. It is essential for initiating a rapid response to fire incidents, ensuring safety and reducing damage.

Key Specifications of Sprinkler System Water Flow Switch

1. Flow Detection Range
   The water flow switch can detect flow rates from 1 to 30 gallons per minute (GPM). The system is designed to respond to different types of sprinkler installations. The specific flow rate depends on the system’s size and requirements.
2. Electrical Ratings
   Water flow switches are compatible with electrical ratings such as 24V DC, 120V AC, and 230V AC. These ratings ensure the switch connects properly to the fire alarm control panel (FACP). Correct matching is crucial for smooth operation.
3. Contact Type
   The flow switch uses single-pole single-throw (SPST) or double-pole double-throw (DPDT) contacts. SPST provides a simple on/off detection, while DPDT allows for more complex setups in larger systems.
4. Material and Durability
   The device is built with materials like brass, stainless steel, or plastic. These materials resist corrosion, making the switch durable and long-lasting in harsh environments.
5. Sensitivity and Activation Speed
   Most water flow switches activate when the flow exceeds 5 GPM. The system is sensitive enough to detect small changes in flow, ensuring quick activation of the fire alarm system.
6. Size and Mounting Type
   The water flow switch fits standard pipe sizes ranging from ½ inch to 3 inches. It can be installed either horizontally or vertically, depending on the system’s design and installation guidelines.
7. Environment Ratings
   Many water flow switches have an IP65 or higher ingress protection rating. This ensures they are resistant to dust, dirt, and moisture, which is essential for both indoor and outdoor installations.
8. Certifications
   For reliability, ensure that the water flow switch is UL-listed, FM-approved, and compliant with NFPA standards. These certifications guarantee the switch meets safety and performance requirements.

Features of Sprinkler System Water Flow Switch

• Early Detection of Fire: The water flow switch detects water flow early, ensuring the sprinkler system activates promptly and responds quickly to fire outbreaks.
• Automatic Activation: Once the flow switch detects water, it automatically activates the fire alarm system, ensuring immediate alerts.
• Reliability: These switches are designed for long-term use with minimal maintenance. They provide consistent performance during emergencies.
• Cost-Effective: Water flow switches are affordable, making them a necessary and cost-effective safety feature in fire protection systems.
• Remote Monitoring: Some advanced systems allow integration with remote monitoring, enabling continuous supervision of the sprinkler system.

Benefits of Using Sprinkler System Water Flow Switch

1. Enhanced Fire Safety
   By detecting water flow quickly, the water flow switch helps contain fires faster. Early detection leads to safer evacuations and reduces property damage.
2. Regulatory Compliance
   Many local fire codes, including NFPA 13, mandate the installation of water flow switches. Compliance ensures your building meets fire safety regulations.
3. Protection of Property and Lives
   The switch helps reduce risks by notifying emergency services immediately. It ensures faster responses, minimizing potential damage and protecting lives.
4. System Maintenance
   The flow switch allows for regular testing of the sprinkler system, ensuring proper functionality and preventing failures during emergencies.
5. Integration with Fire Alarm Systems
   When connected to a fire alarm panel, the water flow switch offers real-time notifications of any sprinkler activation, enabling quicker responses from emergency teams.

Installation and Maintenance of Sprinkler System Water Flow Switch

Proper installation is critical for ensuring the system works effectively. Typically, the water flow switch is installed on the main pipe that leads to the sprinkler system. Correct placement allows for the accurate detection of water flow.

Regular maintenance is essential to prevent malfunction. Test the switch periodically and check for obstructions in the pipeline. Ensure that electrical connections remain intact for reliable performance.

Conclusion

A sprinkler water flow switch is a vital element in any fire protection . It ensures timely detection and triggers the alarm system when necessary. With early detection, regulatory compliance, and enhanced safety, these switches provide essential protection for both people and property. Regular installation and maintenance will help maintain optimal performance.
