Suction Strainer Filter is crucial for protecting pumps, compressors, and other equipment by filtering out debris and contaminants from incoming fluids. It ensures only clean fluid enters the system, improving performance and reducing maintenance costs. In this article, we will cover the specifications, features, and common applications of suction strainer filters.

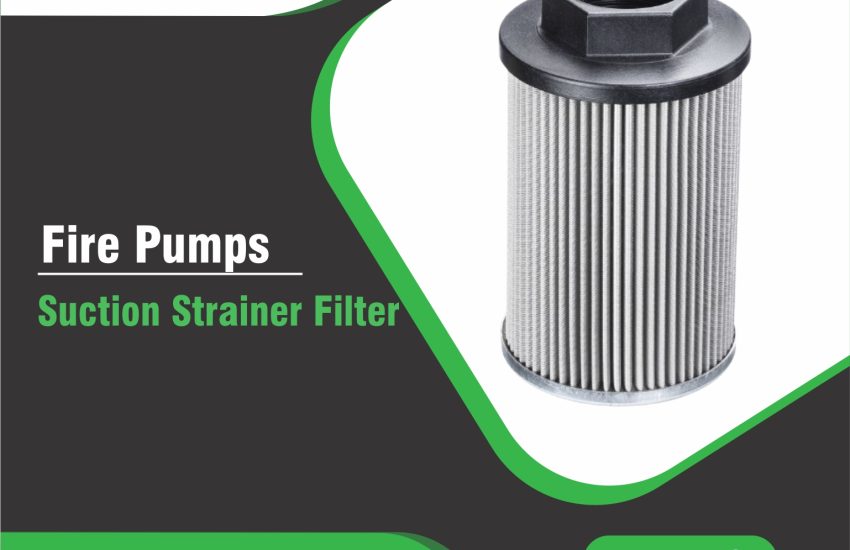

What is a Suction Strainer Filter?
A suction strainer filter is installed at the suction line of a pump or compressor. It filters out dirt, particles, and other contaminants from the fluid, preventing them from entering the system. This simple filtration process protects machinery, increases the lifespan of the system, and maintains operational efficiency.
Key Specifications of Suction Strainer Filters
When selecting a suction strainer filter, consider the following key specifications to ensure it fits your needs:
1. Material
Suction strainer filters are made from materials like stainless steel, bronze, and carbon steel. Stainless steel is ideal for harsh environments because of its corrosion resistance. Bronze, on the other hand, is durable and resistant to wear, making it perfect for long-term use.
2. Mesh Size
Mesh size determines how small the particles the filter can capture. Sizes typically range from 10 microns to 200 microns. A finer mesh captures smaller particles, while a larger mesh is suitable for coarser filtration. Choose a mesh size based on the level of filtration needed for your system.
3. Size Range
Suction strainer filters come in a range of sizes, typically from 1 inch to over 24 inches. For larger or custom-sized systems, manufacturers can produce filters tailored to your requirements.
4. Flow Rate
The flow rate of a suction strainer filter typically varies from 10 GPM to 1000 GPM or more. It’s essential to select a filter that matches your system’s flow rate. Choosing the right flow rate will prevent clogging and maintain efficient operation.
5. Pressure Rating
Pressure ratings range from 150 psi to 3000 psi. Ensure that the filter’s pressure rating meets the needs of your system to avoid leaks or failure under high-pressure conditions.
6. End Connections
Filters come with various end connections, including flanged, threaded, and welded options. Choose the connection type based on your system’s piping requirements for a secure and reliable installation.
7. Temperature Range
Suction strainer filters can handle temperatures from -20°C to 450°C. If your system operates under extreme temperature conditions, select a filter designed for high or low-temperature environments.
8. Cleaning Method
Many suction strainers have removable baskets or elements for easy cleaning. Self-cleaning models are also available for continuous filtration with minimal downtime, making maintenance easier.
Features of Suction Strainer Filters
Suction strainer filters provide several key benefits:
1. Efficient Debris Removal
The primary purpose of a suction strainer filter is to remove debris, dirt, and contaminants. By doing so, it prevents damage to pumps and other equipment. This filtration protects the system and ensures smooth operation.
2. Durable Construction
Made from strong materials like stainless steel and bronze, suction strainer filters are designed to withstand high-pressure and high-temperature environments. They provide long-lasting protection for your system.
3. High Filtration Efficiency
Suction strainer filters efficiently capture particles of various sizes, ensuring that only clean fluid enters the system. This high filtration efficiency reduces the frequency of maintenance and helps avoid costly repairs.
4. Corrosion and Wear Resistance
Due to their durable materials, these filters are resistant to corrosion and wear. This makes them ideal for harsh environments where other filters might degrade over time.
5. Easy Maintenance
Many suction strainer filters feature removable baskets or elements. This design makes it easier to clean or replace the filter as needed, reducing maintenance time and downtime.
6. Compact and Versatile
Suction strainer filters have a compact design, which allows for easy installation in various systems. These filters are also highly versatile and can be used in industries ranging from water treatment to chemical processing.
Common Applications of Suction Strainer Filters
Suction strainer filters are used in many industries where clean fluid is necessary for system efficiency. Below are common applications:
1. Water Treatment Plants
In water treatment facilities, suction strainer filters remove debris from raw water before it enters the pumping system. This helps prevent damage to pumps and ensures smooth operation throughout the plant.
2. Oil and Gas Industry
In the oil and gas industry, suction strainer filters protect pumps and compressors from debris. They are commonly used in pipelines to maintain equipment longevity and reduce maintenance costs.
3. Chemical Processing
Chemical processing plants rely on suction strainer filters to prevent contamination in their systems. By removing particles and contaminants from chemicals or solvents, these filters ensure the purity and efficiency of the operation.
4. HVAC Systems
Suction strainer filters prevent debris from entering HVAC systems, ensuring that air or fluid flows smoothly through the system. This helps maintain energy efficiency and prevents clogging in air handlers or pumps.
5. Pumping Stations
At pumping stations, suction strainer filters ensure that debris does not damage the pumps. They maintain efficient fluid flow by filtering out particles before the fluid enters the system.
6. Marine Applications
In marine systems, suction strainer filters protect water intake systems from harmful debris. These filters are used on ships and boats to keep pumps and other equipment running smoothly.
Benefits of Using Suction Strainer Filters
Suction strainer filters offer several advantages:
- Protects Equipment: By filtering out debris, suction strainer filters protect pumps, compressors, and other equipment from potential damage. This reduces maintenance costs and downtime.
- Improves Efficiency: Clean fluid flows more smoothly, improving the overall efficiency of the system. Filters help reduce friction and wear on equipment, enhancing system performance.
- Reduces Maintenance: With high filtration efficiency and easy-to-clean designs, suction strainer filters require less frequent maintenance, making them a cost-effective solution.
- Cost-Effective: These filters are affordable and provide long-term value by preventing expensive equipment repairs.
- Versatility: Suction strainer filters can be used in various industries, making them a flexible solution for diverse systems and applications.
Conclusion
Suction strainer filters are essential components for maintaining clean fluid flow and protecting systems from debris. Their durable construction, high filtration efficiency, and easy maintenance make them ideal for a wide range of industrial applications. When selecting a suction strainer filter, ensure you consider the right specifications such as material, mesh size, flow rate, and pressure rating to meet your system’s needs. By choosing the right filter, you can improve system efficiency,
