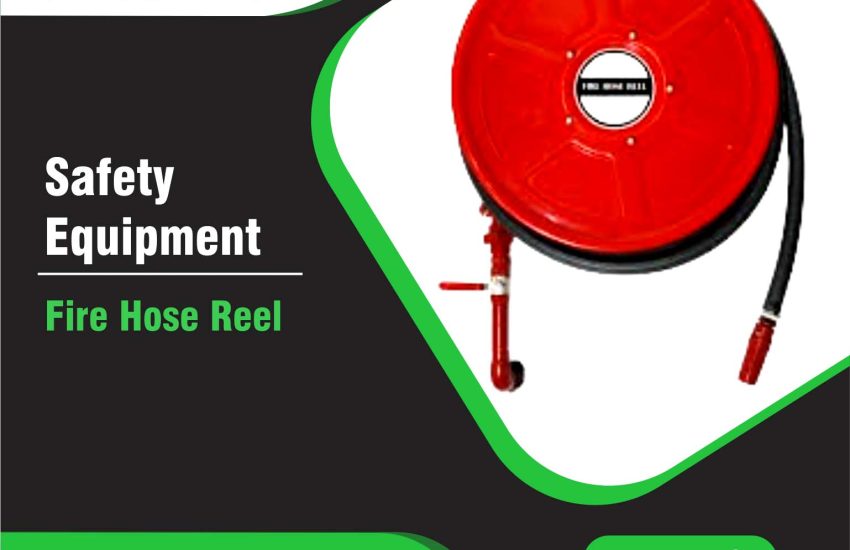

Swinging Fire Hose Reel is an essential safety device commonly used in commercial, industrial, and residential spaces for fire protection. These systems provide quick access to the fire hose, enabling efficient firefighting during emergencies. This article explores swinging fire hose reels in detail, including their specifications, features, and benefits.

What is a Swinging Fire Hose Reel?

A swinging fire hose reel mounts on a swivel mechanism, which allows it to pivot or swing out for easy access. Typically mounted on walls or ceilings, these reels are ideal for locations requiring flexible hose placement. The swinging feature enhances versatility, especially in areas with limited space.

Specifications of a Swinging Fire Hose Reel

When selecting a swinging fire hose reel, several key specifications must be considered to ensure it meets fire safety standards and suits the given environment. Below are the important specifications:

1. Hose Length and Diameter

• Hose Length: The hose length can range from 15 meters (49 feet) to 30 meters (98 feet), with longer hoses suitable for larger areas.
• Hose Diameter: The diameter typically ranges from 19mm (3/4 inch) to 25mm (1 inch). The diameter affects water flow and pressure, so choosing the appropriate size based on fire risk and pressure requirements is essential.

2. Material and Durability

• Reel Material: Swinging fire hose reels are made from high-quality materials like stainless steel, aluminum, or heavy-duty plastic to ensure durability and resistance to corrosion. Stainless steel reels are particularly popular due to their robustness and ability to withstand harsh environments.
• Hose Material: Hoses are usually constructed from PVC, rubber, or Nitrile. These materials are designed to handle high-pressure water flow and extreme temperatures.

3. Flow Rate

• Flow Rate: A swinging fire hose reel is designed to deliver sufficient water flow to suppress fires effectively. The flow rate generally ranges from 20 to 50 liters per minute (L/min), depending on the model and hose diameter. Choosing a reel with a flow rate that aligns with the specific fire safety plan is crucial.

4. Pressure Rating

• Pressure Rating: The pressure rating determines the reel’s ability to withstand high water pressure. Most fire hose reels have pressure ratings between 10 bar (145 psi) and 20 bar (290 psi). Ensure that the reel’s pressure rating is compatible with the building’s water supply and fire protection system.

5. Mounting and Swing Mechanism

• Mounting Options: Swinging fire hose reels can be wall-mounted, ceiling-mounted, or installed in mobile versions. The mounting system must be robust enough to handle the weight and stress of the hose reel and water pressure.
• Swinging Mechanism: The swinging mechanism is the key feature. It allows the reel to rotate and be easily pulled out, offering flexibility during firefighting. The swivel mount should resist corrosion and function smoothly under high-pressure conditions.

6. Certifications and Standards

• Compliance: Swinging fire hose reels must comply with local fire safety regulations and standards. Many regions require that these reels meet standards set by the National Fire Protection Association (NFPA), BS 5378, or the European EN 671-1 standard. Ensure the product meets the necessary certifications for fire safety compliance.

Features of a Swinging Fire Hose Reel

1. Ease of Operation: The swinging design makes it easy to operate in confined spaces or areas with limited accessibility. Users can quickly pull the hose to the fire location, improving response time during emergencies.
2. Quick Hose Retrieval: After use, the user can easily rewind the hose using the reel’s automatic return feature or manual retraction system, keeping it neatly stored and ready for future use
3. Space Efficiency: Swinging hose reels save space by mounting them in corners or along walls, allowing them to swing out only when needed.
4. Weather Resistance: Many swinging fire hose reels are weatherproof and suitable for both indoor and outdoor environments. They can endure harsh environmental conditions, such as rain, snow, or extreme heat.
5. Durable Construction: These reels are built to withstand harsh conditions during a fire emergency. Their robust design ensures long-term operational effectiveness with minimal maintenance.

Benefits of Swinging Fire Hose Reels

• Space-Saving: The compact design makes swinging fire hose reels ideal for environments with limited space.
• Easy Deployment: Quick and efficient deployment of the hose can be critical in saving lives and property during emergencies.
• Durable and Reliable: With high-quality materials and a robust design, these reels offer reliable fire safety protection.
• Compliant with Safety Standards: Swinging fire hose reels meet or exceed local and international safety standards, ensuring they function effectively during emergencies

Conclusion

A swinging fire hose reel is an indispensable component of a building’s fire protection system. With high-quality materials, easy deployment, adjustable hose lengths, and pressure ratings, it ensures fire safety is both effective and accessible. Understanding the specific features and specifications of these reels will help you choose the right model to meet your fire protection needs and comply with safety regulations.
