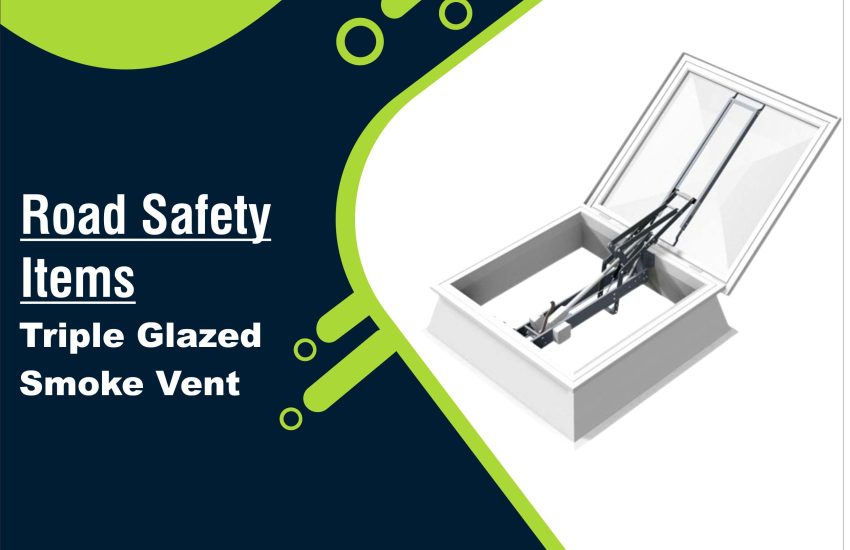

Triple Glazed Smoke Vent Ensure maximum fire safety and compliance with the Triple Glazed Smoke Vent, a high-performance AOV (Automatic Opening Vent) system designed for residential and commercial buildings. Fully certified and tested to BS EN 12101-2, this advanced smoke ventilation solution guarantees reliability, safety, and thermal efficiency. Engineered with a polycarbonate triple-skin lid, Class B non-fragility, and a 72-hour battery backup, this smoke vent is ideal for lobbies, stairwells, and escape routes.
✅ Key Features & Benefits
✔ Fully Certified Smoke Vent System Compliant with BS EN 12101-2, Approved Document B, and BROOF(t4) standards, ensuring optimal performance and fire resistance.
✔ Triple Glazed Polycarbonate Lid Offers exceptional thermal performance, condensation resistance, and meets Part L compliance.
✔ High Aerodynamic Free Area (Aa) All sizes exceed 1.0 Aa m² in lobbies and 0.70 Aa m² in stairwells, meeting strict ventilation requirements for effective smoke extraction.
✔ Class B Non-Fragility Achieves Class B to ACR[M]001 and 1200-joule impact resistance to EN 1873, ensuring safety and structural strength.
✔ Opens to 140° in < 60 Seconds Complies with the rapid opening time requirements of BS EN 12101-2, guaranteeing quick smoke release during a fire.
✔ 72-Hour Battery Backup Continues to operate in case of a power outage, offering uninterrupted performance in emergency conditions.
✔ Wind Deflectors (Where Applicable) Included to boost aerodynamic performance and comply with regulations.
🔧 Operation & Integration
Optional control panels, smoke detectors, manual overrides, and fireman switches available.
Can be integrated with existing fire alarm systems and building management systems (BMS).
Thermally broken PVC kerb for improved insulation.
Hinged on the long side for efficient operation and full opening clearance.
📐 Available Sizes & Performance
Size (mm)
Free Area (Standard)
Free Area (With Wind Deflectors)
1200 x 1050
0.42 – 0.46 Aa m²
Up to 0.79 – 0.88 Aa m²
1350 x 1050
0.40 – 0.44 Aa m²
Up to 0.90 – 0.99 Aa m²
1500 x 1050
0.39 – 0.43 Aa m²
Up to 1.01 – 1.12 Aa m²
1200 x 1200
0.44 – 0.47 Aa m²
Up to 0.90 – 1.01 Aa m²
1350 x 1200
0.42 – 0.45 Aa m²
Up to 1.02 – 1.16 Aa m²
1500 x 1200
0.40 – 0.43 Aa m²
Up to 1.15 – 1.32 Aa m²
1350 x 1350
0.43 – 0.45 Aa m²
Up to 1.14 – 1.34 Aa m²
1500 x 1350
0.41 – 0.44 Aa m²
Up to 1.29 – 1.52 Aa m²
1500 x 1500
0.42 – 0.45 Aa m²
Up to 1.42 – 1.72 Aa m²
Note: All rectangular units are hinged on the long side. Free area values vary depending on kerb version and presence of wind deflectors.
🛡️ Safety, Certification & Durability
Fire rating: Class B-s1, d0 to BS EN 13501-1
Impact resistance: 1200 joules, EN 1873
BROOF(t4) classification to BS EN 13501-5
CE marked, fully weatherproofed, with 10-year manufacturer guarantee
Designed for over 20 years of service life
❗ Important Note
This is a bespoke assembled product, and returns are not accepted. Please ensure correct size selection before placing your order.
