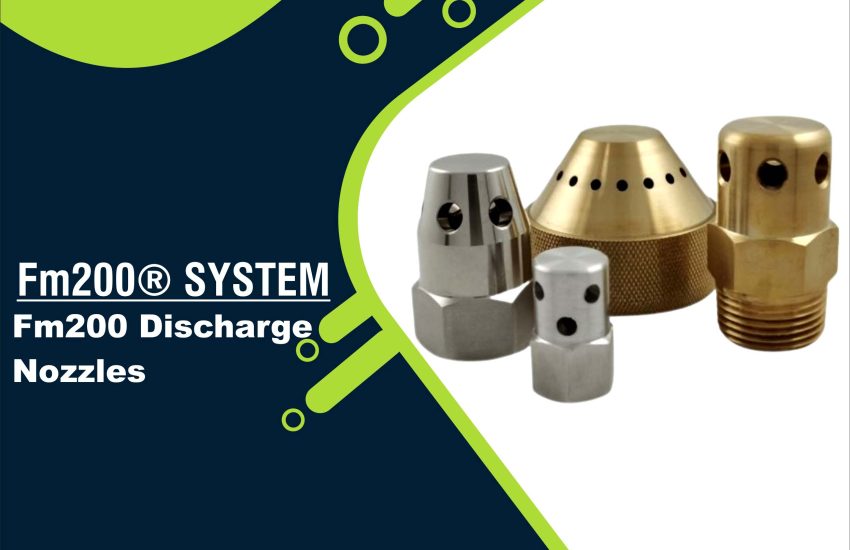

Types Of FM200 Discharge Nozzles play a critical role in the effectiveness of clean agent fire suppression systems. These components are responsible for delivering the FM200 or FK5112 gas uniformly throughout the protected area, ensuring quick and efficient fire suppression. In this article, we’ll explore the types of FM200 discharge nozzles, their features, and material options available to meet diverse fire safety requirements.
1. FM200 Discharge Nozzle Styles: 90°, 180°, and 360° Coverage
FM200 nozzles are engineered in three main spray pattern designs to accommodate different room layouts and hazard configurations:
- 90° FM200 Nozzles – Ideal for corner placements, directing agent into the room while minimizing wall impact.
- 180° FM200 Nozzles – Commonly used against walls, distributing the extinguishing agent in a semicircular pattern.
- 360° FM200 Nozzles – Perfect for central ceiling installations, ensuring full and uniform agent distribution across all directions.
These nozzle types are compatible with both FM200 and FK5112 clean agents, providing flexibility for various fire suppression applications.
2. Customizable Orifice Sizes and Locations
For optimal system performance, FM200 nozzle orifices can be custom-designed to match specific room dimensions, agent flow rates, and discharge times. Both orifice size and location are customizable based on hydraulic calculations and safety standards.
Custom engineering ensures:
- Accurate gas flow rate
- Even agent coverage
- Reduced residue and noise
- Compliance with NFPA 2001 standards
3. Connection Types: Threaded, Quick Fitting, and More
The connection method of FM200 discharge nozzles is another important factor. Available options include:
- Threaded connections – Common for secure and durable installations.
- Quick fitting connections – Useful for easy installation and maintenance.
- Other custom connection types – Designed for specific project needs or OEM requirements.
These flexible options allow fire system designers to choose the best fitting type based on the application environment.
4. Material Options: Stainless Steel, Brass, and More
FM200 discharge nozzles are manufactured using high-quality materials to ensure corrosion resistance, durability, and system longevity. Available material choices include:
- Stainless Steel 304, 303, 316, 316L
- Brass
- Other custom alloys
The choice of material often depends on environmental factors, such as humidity, corrosive gases, or temperature extremes.
5. OEM and ODM FM200 Nozzle Services
Manufacturers offer OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services for FM200 nozzles. This allows for:
- Custom branding
- Unique design features
- Specialized nozzle configurations for industrial, commercial, or data center applications
Partnering with a trusted FM200 nozzle supplier ensures your fire suppression system meets exact safety and branding needs.
Final Thoughts
Whether you need a 90-degree FM200 nozzle, a 180-degree wall-mounted nozzle, or a 360-degree ceiling nozzle, choosing the right nozzle type is essential for effective fire suppression. With customizable orifice designs, various connection types, and material options like stainless steel and brass, FM200 nozzles can be tailored to meet any project specification.
