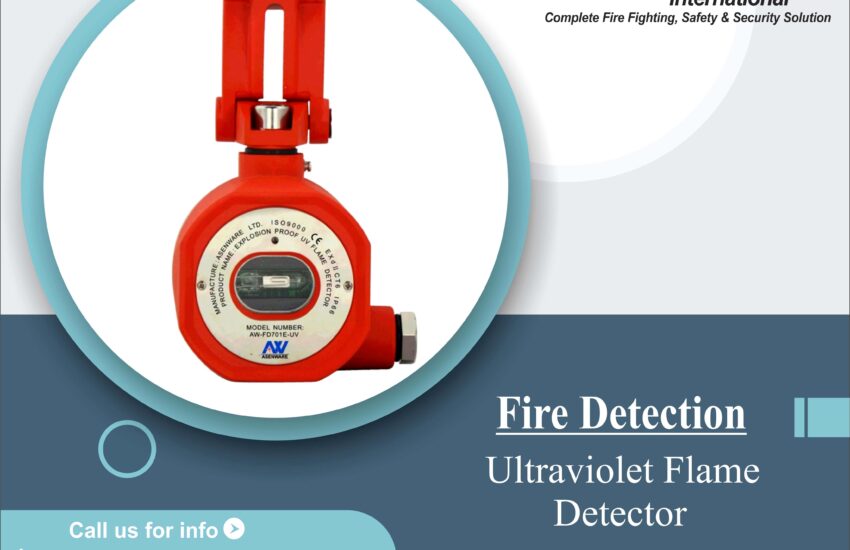

Ultraviolet Flame Detector is a highly sensitive and explosion-proof flame detection device, engineered to detect early-stage flames by monitoring ultraviolet (UV) radiation. Designed for high-risk industrial environments, this detector offers fast response, superior accuracy, and reliable performance even in hazardous locations. With a wide detection angle of 120 degrees and advanced UV sensor technology, it is ideal for use in sectors like petrochemical, gas processing, power plants, and chemical manufacturing.
Key Specifications
- Model: AW-FD701E-UV
- Anti-Theft Alarm Type: Infrared Alarm
- Sensor Installation: Ceiling Mount
- Operating Voltage: 24VDC (Range: 18~30VDC)
- Standby Current: 15mA
- Alarm Current: 35mA
- Monitoring Indicator: Green Light (Flashing)
- Fault Status Indicator: Yellow Light
- Fire Detection Status: Red Light
- Detection Angle: 120°
- Weight: ≤1kg
- Material: Cast Aluminum, Red
- Protection Grade: IP66
- Explosion-Proof Rating: EXd CT6
- Size: 101mm x 111mm x 88mm
- OEM/ODM Support: Yes
- Production Capacity: 10,000 Pieces/Month
- Supply Ability: 500,000 Pieces/Month
- Country of Origin: China
- Packaging: Carton
Advanced Features of the AW-FD701E-UV
- High-Speed UV Flame Detection
Utilizes a solar-blind UV sensor and narrow-band IR sensor with a high-precision 16-bit data processor for fast and accurate flame detection. - Explosion-Proof & Weatherproof Design
Certified to Exd II C T6 Gb/tD A21 IP66 T80°C, ensuring safe performance in explosive gas environments and harsh weather conditions. - Improved Detection Algorithms
Enhanced software algorithms help reduce false alarms and increase sensitivity to smaller flames. - Durable Construction
Built with die-cast aluminum and sapphire optical window (Al2O3) for enhanced durability in industrial environments. - Wide Detection Range
Capable of detecting flames up to 60 meters (with AW-FD702E-IR2 model), making it ideal for large industrial spaces. - Multi-Fuel Compatibility
Detects a wide range of fuel types, increasing versatility across different industries. - Low Maintenance and Easy Upgrades
Designed for low maintenance costs, easy servicing, and straightforward system upgrades.
Applications
The AW-FD701E-UV ultraviolet flame detector is optimized for hazardous environments where fire risks are high and immediate flame detection is critical. Suitable industries and use cases include:
- Oil & Gas Facilities
- Chemical Processing Plants
- Power Generation Stations
- Ammunition Storage
- Textile and Paper Mills
- Fuel Storage and Transfer Stations
Compliance and Standards
The detector complies with multiple international and Chinese safety standards, including:
- GB15631-2008 – Special fire detectors
- GB3836.1-2000 & GB3836.2-2000 – Explosion-proof equipment standards
- IP66 rating for dust and water resistance
Why Choose AW-FD701E-UV?
If you’re seeking a reliable, explosion-proof, UV flame detector with fast response time, wide detection angle, and industrial-grade performance, the AW-FD701E-UV from Asenware is the ideal solution. With proven OEM/ODM capabilities and a monthly supply capacity of up to 500,000 units, this model ensures consistent quality and dependable availability.
